Cat door latch

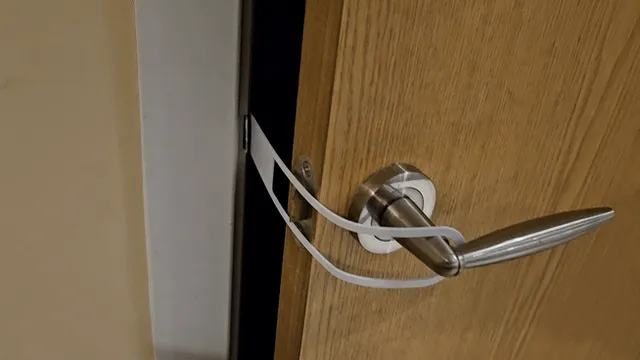

This is a door latch to keep the door partly open, allowing a cat to get in and out.

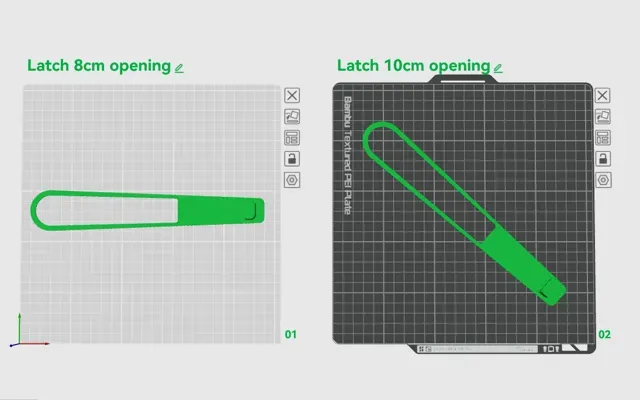

I made two plates, one with approx 8cm opening and the other with 10 cm.

Scale the X for a wider opening, if you need that.

I recommend bending it immediately after printing, whilst still warm.

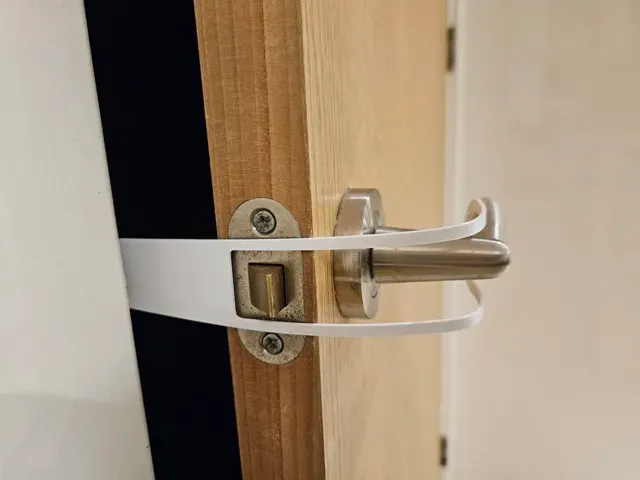

The latch works on UK door strikes (latch holes) of 14mm/20mm or more.

If you need a tighter clip on the door handle and a wider opening - 12cm - check also V2 - the second print profile I have for this model.

Boost Me You must boost me if your cat likes this!

0.2mm layer, 6 walls, 25% infill

300mm long - XXL Latch

Stronger - 100% infill. Longer profile

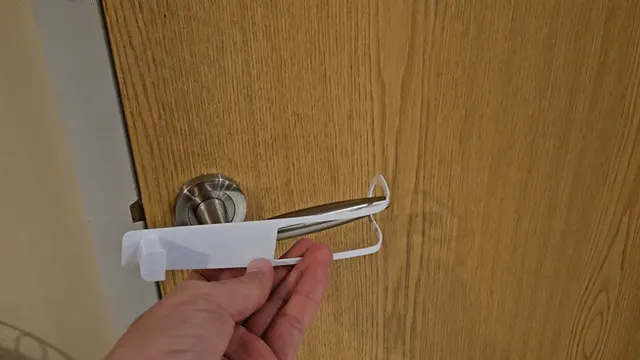

V2 - smaller door handle - wider opening (12cm) This is a new version of the latch (V2 in the pictures).

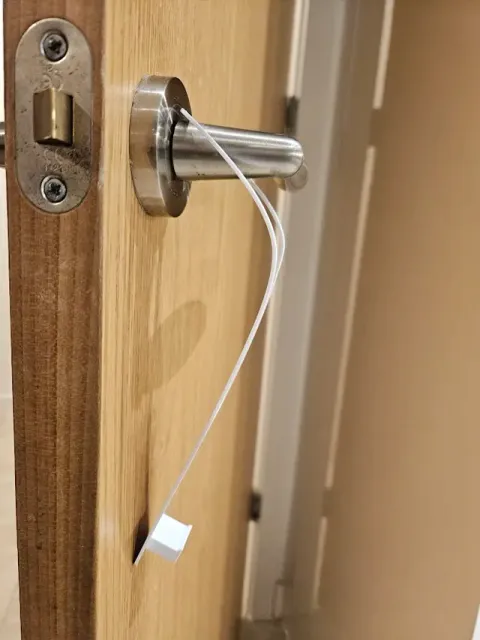

It has a smaller inside circle, fitting better the normal door handles. It has also two claws to keep it in place when not in use.

This new profile has approx. 12cm door opening.

[a1 mini] - 0.2mm layer, 6 walls, 25% infill A1 mini profile about 8 centimeters opening Flexible enough using Bambu PLA basic
