AMS lite vertical Stand Holder

⚠️Working on this complicated model takes a lot of time and if you like my work and want to support me and this design - please BOOST this design (click on the small Rocket 🚀 or „BOOST“ button) 🙏👍 Thank you in advance! 🙏

! Please take bed adhesion very seriously when printing this almost full-bed design, use 3DLAC OR GLUE STICK if necessary and increase the bed-temperature by 5°C degree. My print-profiles have already these seetings.

Eds Stand for vertical AMS lite holder (A1 and A1mini)

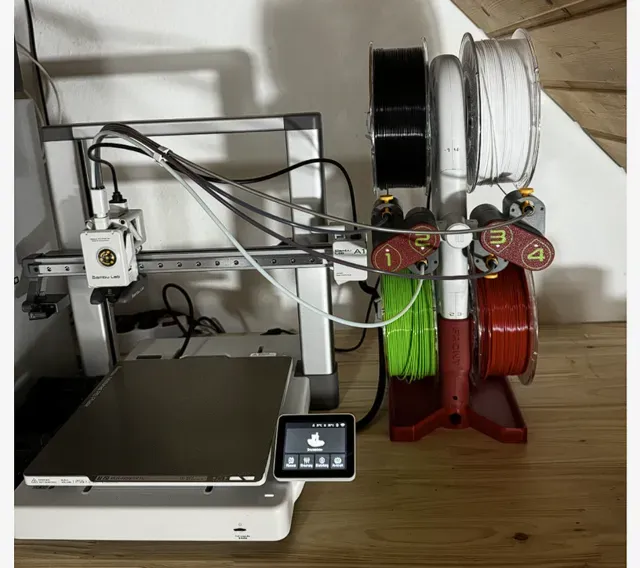

It's a great idea to position AMS lite vertically! 😍👍

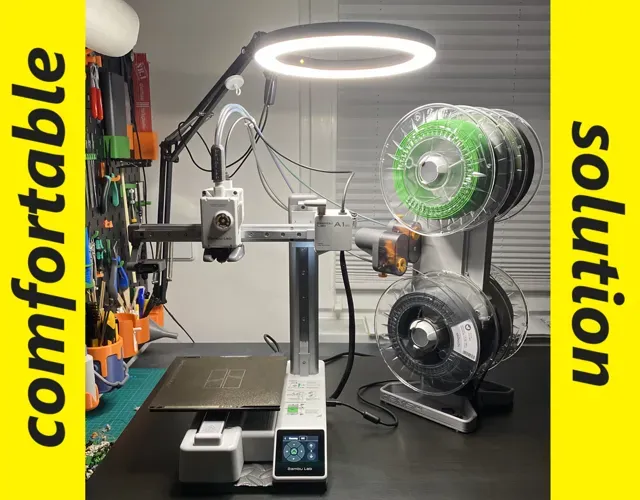

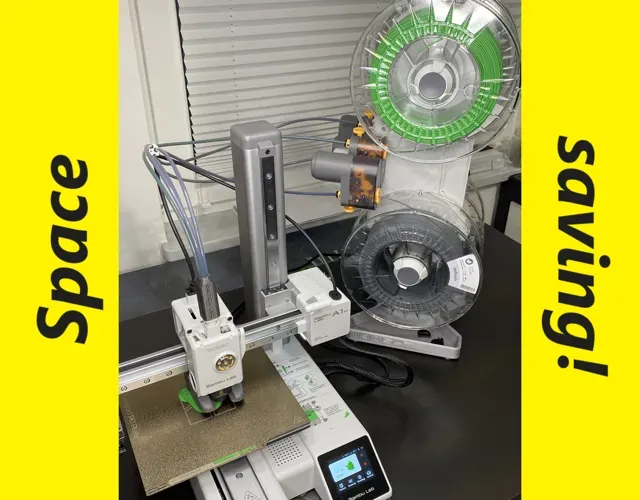

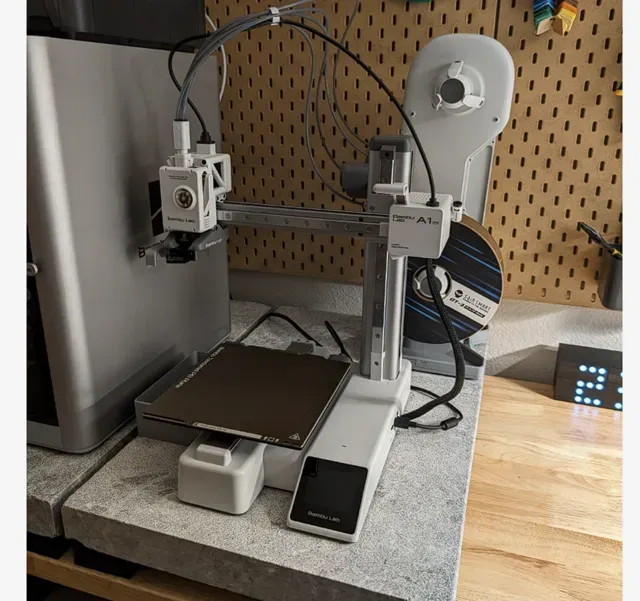

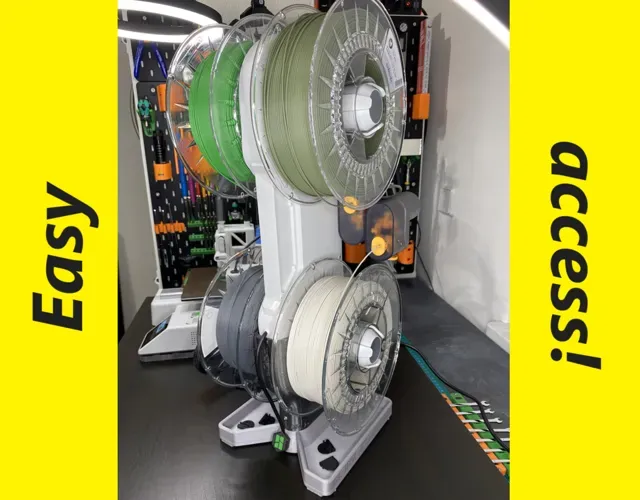

You have several advantages: 1. Truly easier and more convenient access to ALL four spools and filament feeders! 2. Very space saving! 3. Filament bowden are guided better behind the printer and AMS lite is not rocked back and forth when the printer is running ❤️

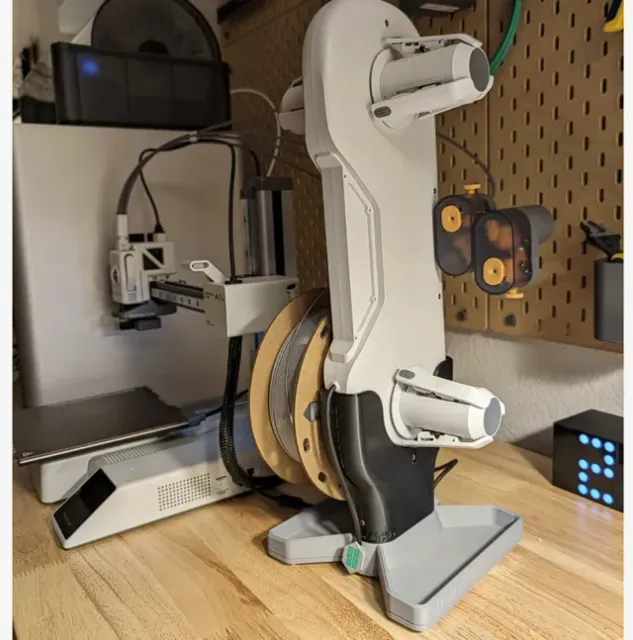

Vertical AMS lite holder

You can download my remix of really great holder for vertical mounting here . This one have already the mounting holes . Please check up the original Holder-Designer page for instructions on how to assemble it with AMS lite. There is a cool animation for assembly - it's really easy! 👌

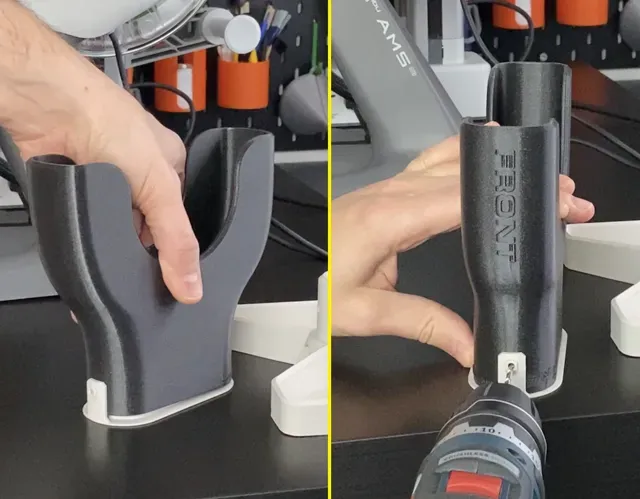

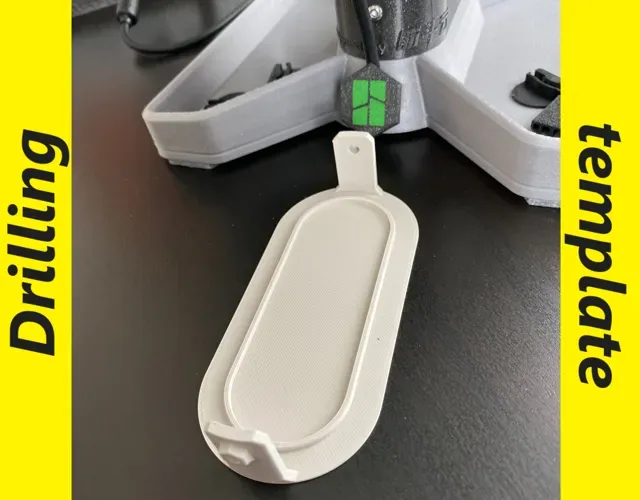

If you already printed a great vertical holder from here https://makerworld.com/en/models/64367#profileId-67449 and you want to screw this existing holder and my stand together - just print my drilling template to easy drill (3mm drill) precise holes in the holder! See in my printing profiles here!

Why this version of the stand?

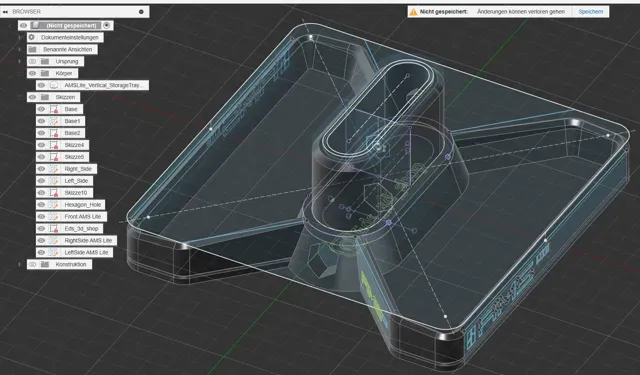

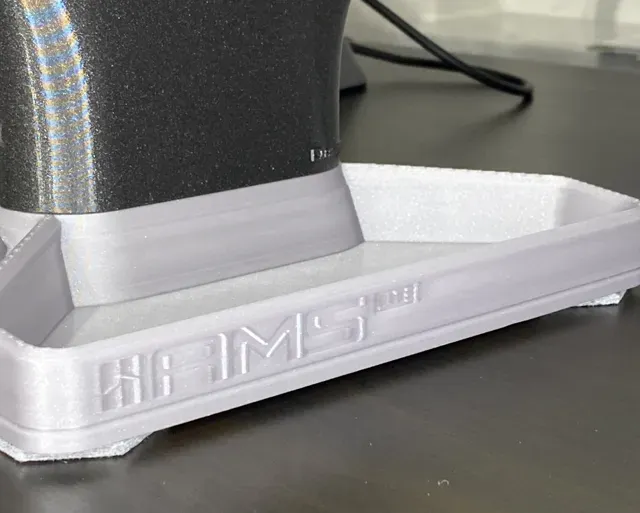

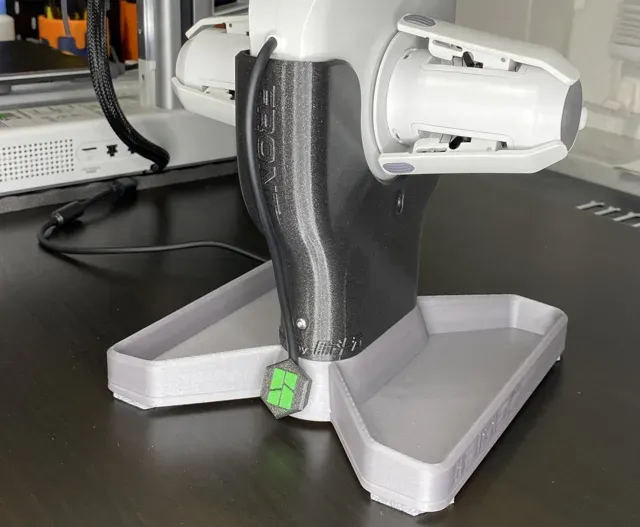

I didn't like the stands I saw for the holder so I designed my own. I really wanted the stand and vertical holder to be screwed together tightly - for that you only need 2x M3 nuts and 2x14mm M3 screws. So you can pick up the whole AMS lite and move it arround without having to worry about the stand falling off 😂

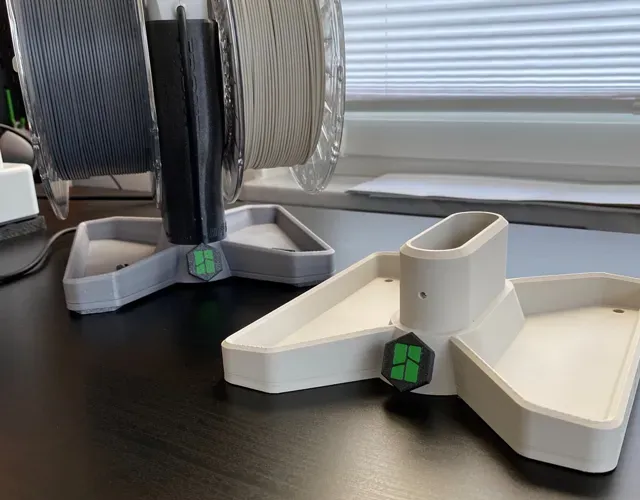

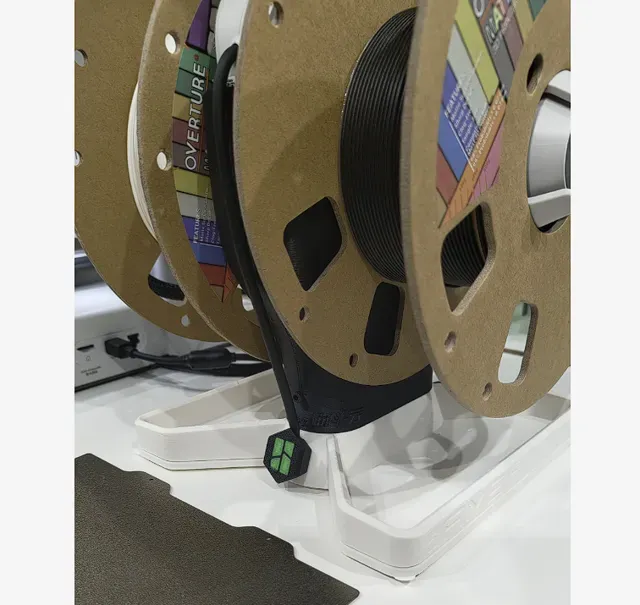

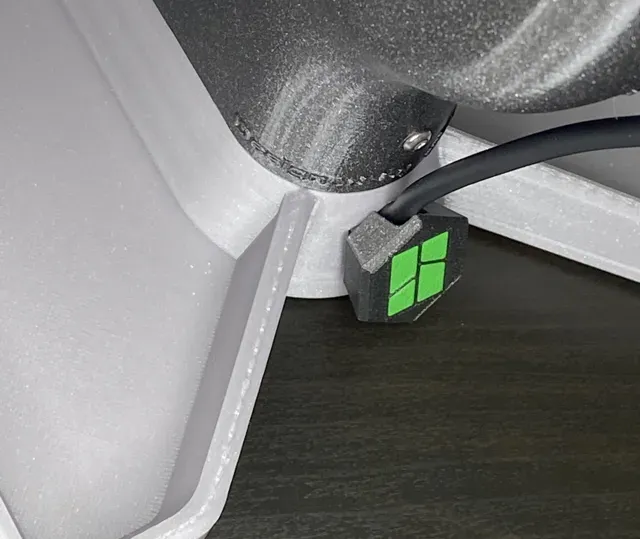

I also wanted AMS Lite cable to be able to be carried through. A storage area for the filament clips should not be missing either! :-) And yes - it should be beautiful, stylish and at the same time it should not need so much filament. 😂👍

If anyone wants to mount AMS lite - I have a version with M6 mount holes.

Print / Install Instructions for the stand :

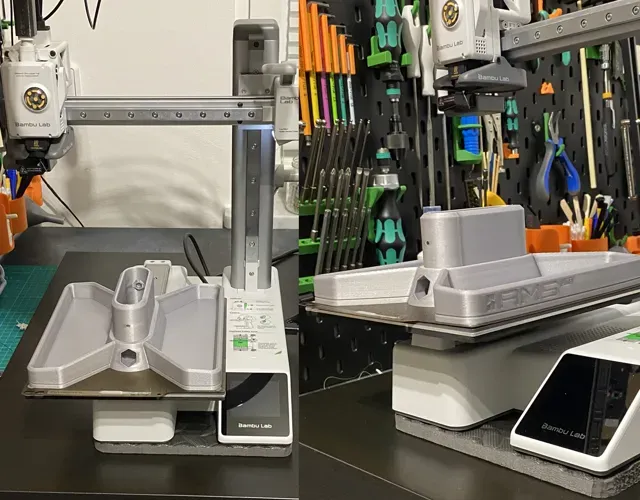

- The stand is almost full-bed design, take for this most warp-free Filament (PLA is really good enough!), use 3DLAC OR GLUE STICK if necessary and increase the bed-temperature by 5°C degree (f.e. from 65° to 70°) - The stand has a small “mice ears” on the edges for better bed adhesion - just cut them off easily after print (with pliers/cutter knife)👍 Print / Install Instructions for the cable hole cover :

- place them with the logo on the build plate - first layer line width: 0,36 (0.4 mm Nozzle) - first layer speed: 10ms per second (for a perfect look of the front-logo-surface) — ! —

Thanks for downloading, rating in advance and please don't forget to like this model! ;-)

⚠️This design is inspired by a cool model from 筋斗云の点线面 ! ( LINK ) Thank you for cool design and inspiration!🙏👍

But in this design, no external source data was used (STLs, STEP, etc.) and everything was designed from scratch.
