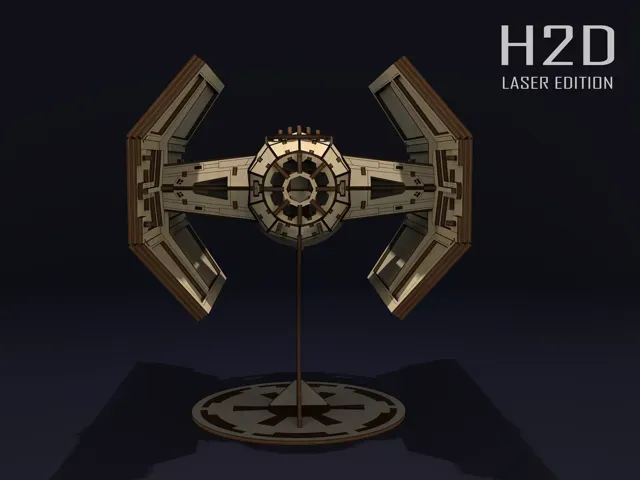

Darth Vader TIE Advanced Laser Cut Model — Фото 2 из 5

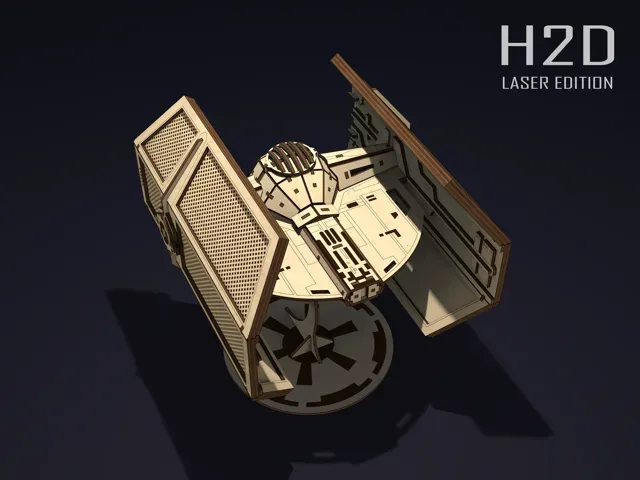

Darth Vader TIE Advanced Laser Cut Model — Фото 3 из 5

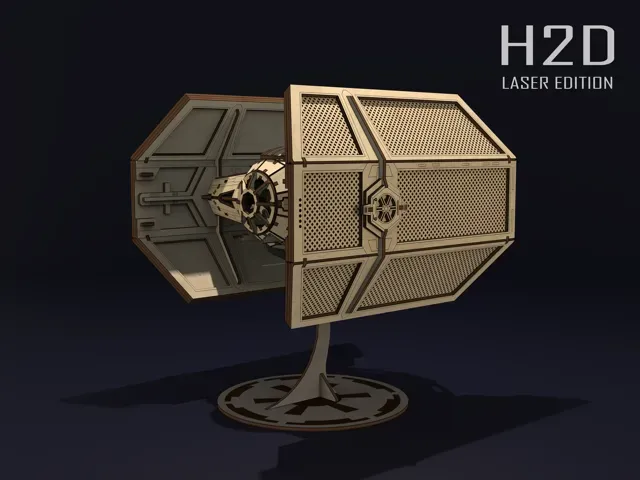

Darth Vader TIE Advanced Laser Cut Model — Фото 4 из 5
Darth Vader TIE Advanced Laser Cut Model — Фото 5 из 5
3D-модель · MakerWorld

Darth Vader TIE Advanced Laser Cut Model

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
DXFSVG
  • 462 Лайки
  • 1 780 Загрузки
  • 33 Напечатали
  • 726 В подборках
  • 28 Бусты
  • 32 Комментарии
  • 0 Просмотры

Автор:21CNCStudio

Опубликована

Скачать на MakerWorld

Описание

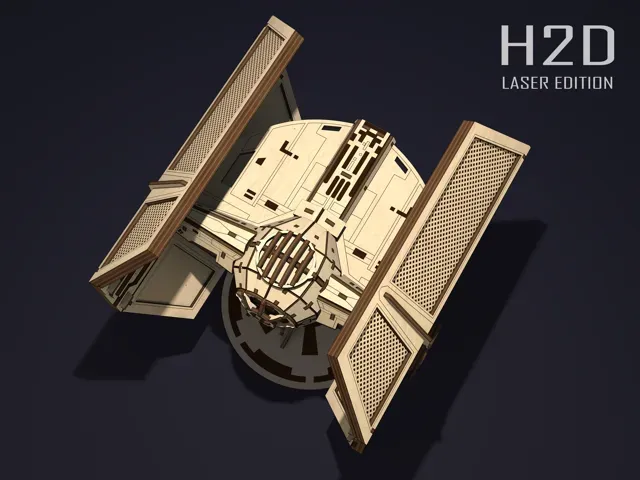

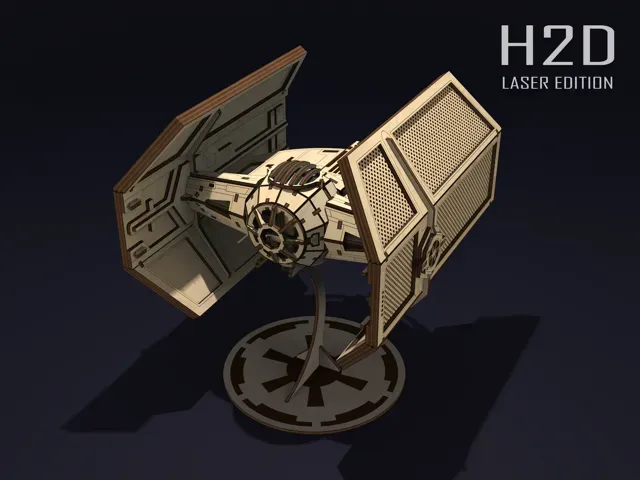

Bring the galaxy’s dark legend to life with this premium laser-cut model inspired by Darth Vader's iconic TIE Advanced starfighter. Designed with precision for the Bambu Lab H2D Laser Edition, this highly detailed wooden model offers an engaging and rewarding project for any sci-fi fan, maker, or laser-cutting enthusiast.

Model Dimensions (Assembled):

- Length: 276 mm - Width: 256 mm - Height (with stand): 291 mm Material Requirements:

- 12 sheets of 3mm plywood (some material will remain as scrap) - Cutting area optimized for the Bambu Lab H2D laser workbed Design Highlights:

- Tight-fitting joints for a clean, precise assembly (minimal glue required) - Includes a custom-designed display stand with an emblematic base - LAC files fully pre-arranged for streamlined cutting - SVG files included for previews or alternative setups Why You’ll Love This Model:

- A tribute to one of sci-fi’s most iconic starfighters, recreated in stunning wooden detail - Perfect for developing laser-cutting and model assembly skills - An eye-catching display piece for your collection, desk, or shelf - Tested and optimized for a perfect fit on H2D laser systems Perfect For:

- Sci-fi enthusiasts - Hobbyists and collectors - Makers looking for a challenging and beautiful laser-cut project Important Notes:

- Designed for personal use. Commercial use requires a separate license. - Files created and copyrighted by Volodymyr Papush, 21CNCStudio.

Руководства и профили печати

Файлы руководств

Профили печати и шаги

3mm Birch Plywod | H2D Instructions for H2D Users:

This model is fully optimized for the Bambu Lab H2D Laser Edition . LAC file with cut offset settings for clean 3 mm plywood cutting. The model is designed for 3 mm thick plywood .

If any part feels slightly loose in the tongue-and-groove joints, simply use a small drop of super glue to improve stability.

Instructions for SVG file without kerf:

If your material thickness differs from 3 mm (e.g., 2.7 mm or 3.2 mm), you’ll need to scale the files accordingly before cutting. For example, with 2.7 mm plywood, select all sheets and scale down to 90% (since 2.7 mm is 10% thinner than 3 mm).

To avoid wasting material, you can test fit using my special kerf-calibration parts , available in my MakerWorld model library.

Before you start cutting: I highly recommend checking the fit of the tab-and-slot joints before cutting the full model. This simple step can help you avoid wasting material and time, especially if your plywood is not exactly 3 mm thick.

To help with this, I’ve included a test file on my page that lets you quickly check engraving quality and confirm that the joints are snug enough for your material.

Tip for H2D users: For 3 mm plywood, I recommend setting a Cut Offset of 0.1 mm for best results.

Take a moment to test first – it’s a small effort that makes a big difference!
