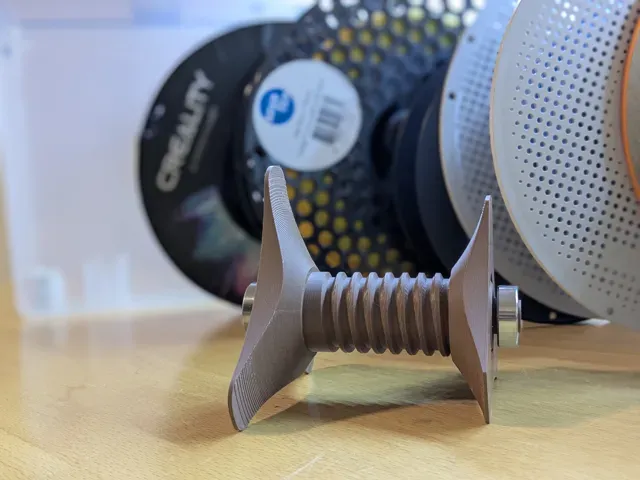

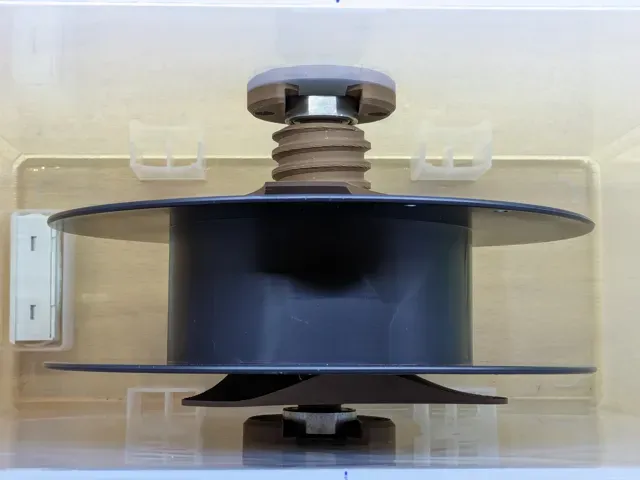

Custom Spool Holder - Smooth Feeding, Dry Filament

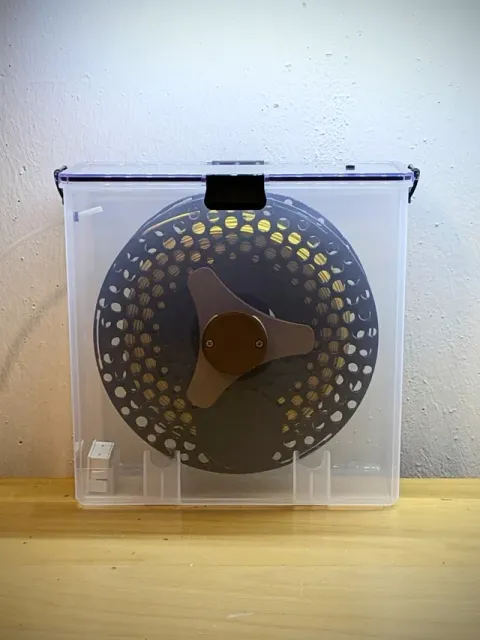

I was looking for quite some time to find a solution of an inexpensive good quality dry box fitting my filament spools and offering smooth rotation and easy replacement of spools.

Long story short I ended up remixing a few designs. Now, I am really happy with this solution and I would like to share it with you.

Thanks to all the original designs!

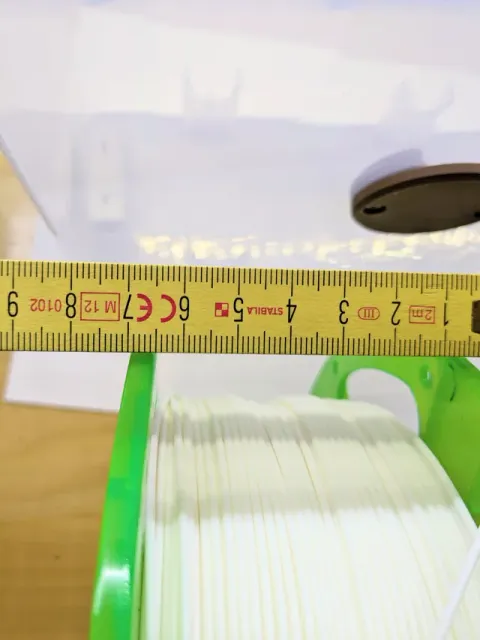

Update 21.07.2025: The model is now parameterized. Enter the width of your dry box in mm at the position where the spool holder should be placed, and download the Screw_Mod_v2 in the appropriate length.

==================

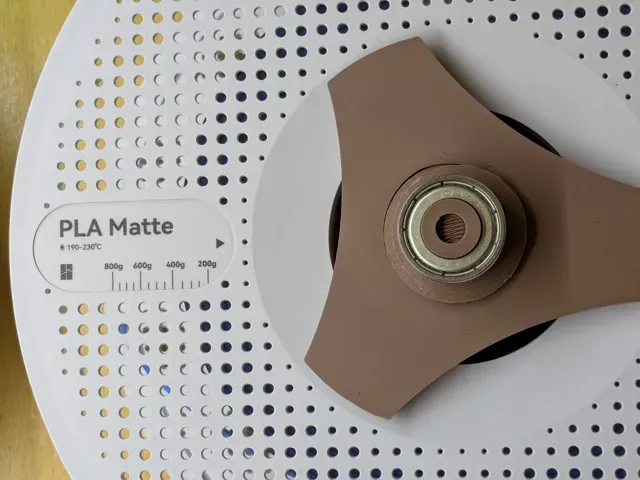

Tested Spools:

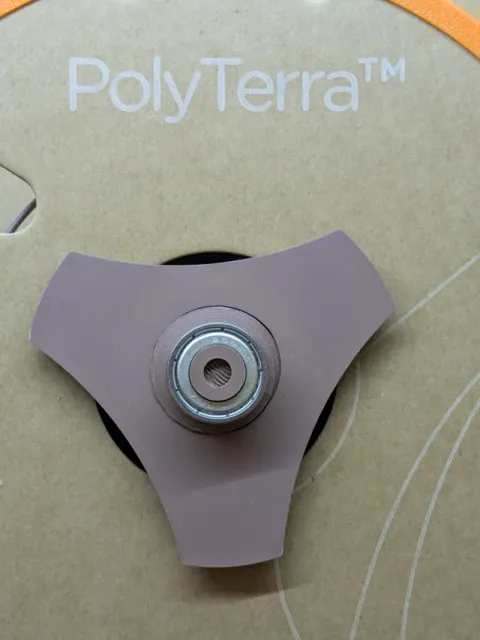

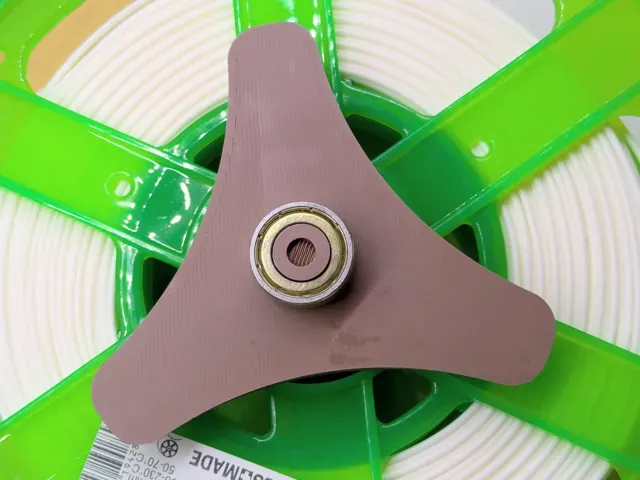

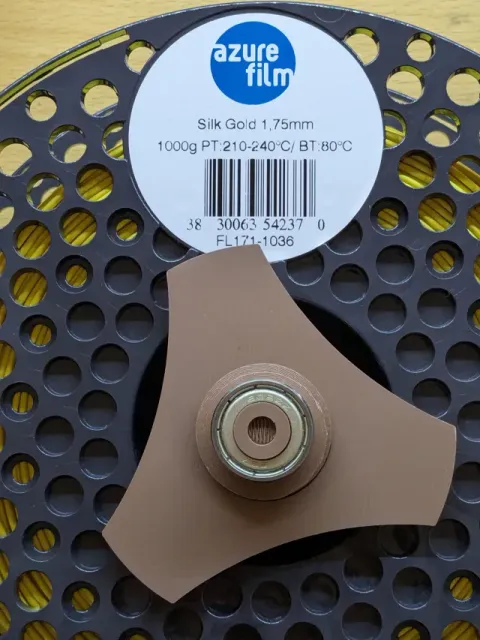

- 300g - 1000g - max. 70mm x 202mm - PolyTerra, Creality, Purefil, Bambulab, azure film Assembly Guide:

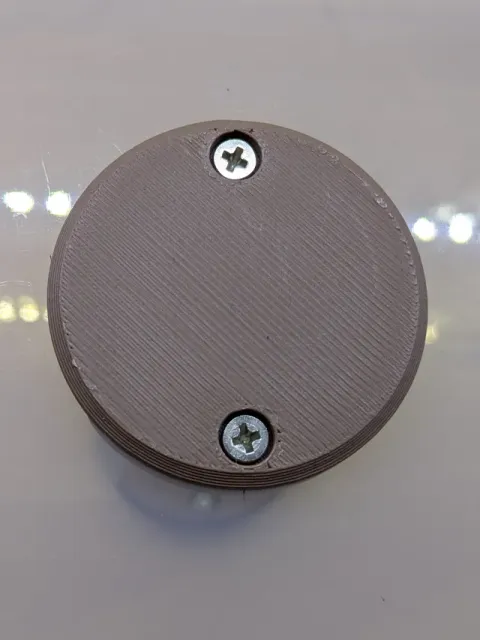

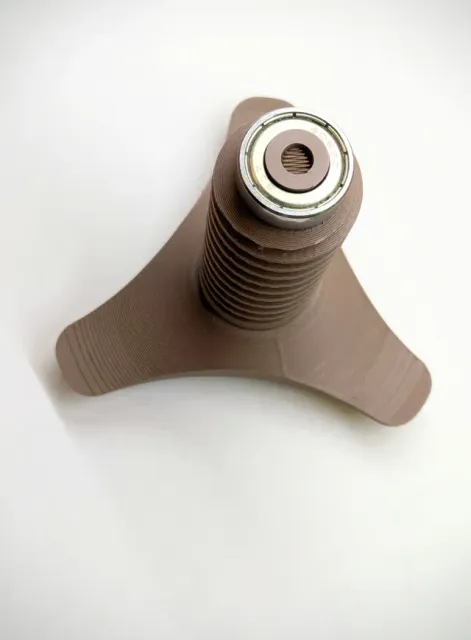

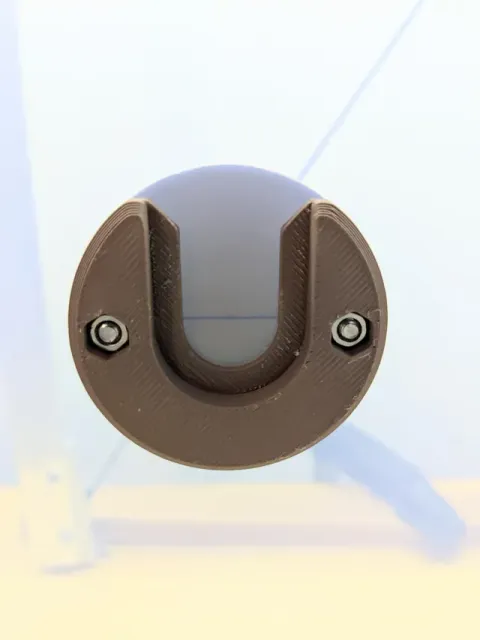

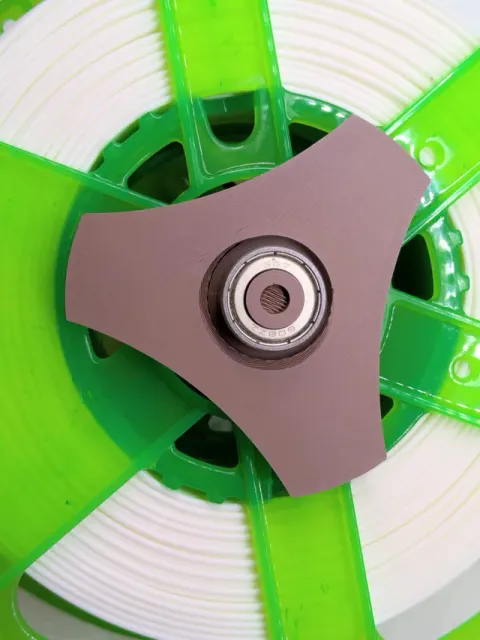

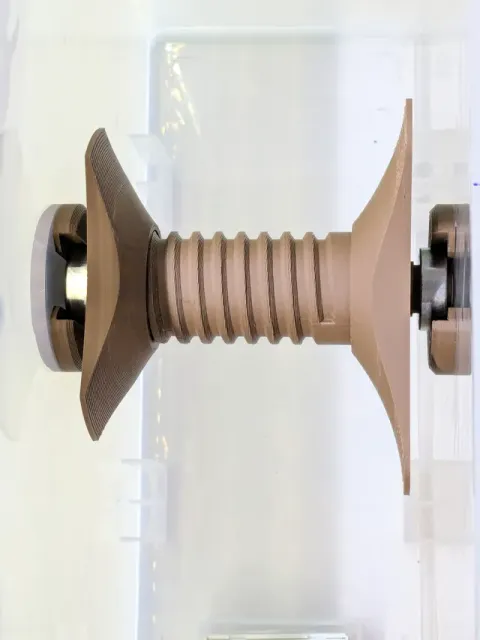

- Connect the screw with the nut - Add the bearing holder and the bearings - Add the bearing cap and glue it - Use the mount guide to markt the drill holes - Drill the holes - Attach the screw mount in and outside with M3x(6-10mm) with hex nuts Print Guide:

1 x Screw_Mod_v2 1 x nut_mod 2 x Inside_Mount_mod

2 x Outside Mount (from @Rosco) 2 x bearingholder (from @bradm10000) 2 x bearingcap (from @bradm10000)

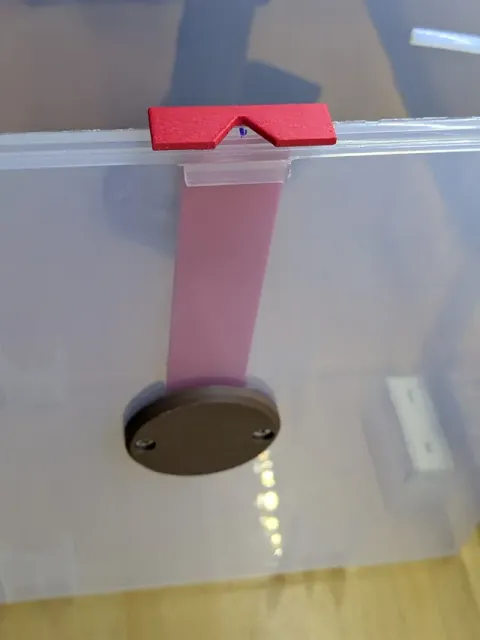

2 x Mount_Guide

(if you use a different dry box you can use the fusion 360 file to adjust the length of the screw - Spool_Holder_Screw v8.f3d)

What you need to buy:

https://de.aliexpress.com/item/1005007566682684.html?spm=a2g0o.order_list.order_list_main.137.614b5c5fYu2TTx&gatewayAdapt=glo2deu

https://de.aliexpress.com/item/1005003313426690.html?spm=a2g0o.order_list.order_list_main.132.614b5c5fYu2TTx&gatewayAdapt=glo2deu

https://de.aliexpress.com/item/1005005778152535.html?spm=a2g0o.order_list.order_list_main.162.614b5c5fYu2TTx&gatewayAdapt=glo2deu
