Boxseed mini - Self watering seed starter

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 65 Лайки
  • 40 Загрузки
  • 9 Напечатали
  • 149 В подборках
  • 2 Бусты
  • 1 Комментарии
  • 0 Просмотры

Автор:Epiq3D

Опубликована

Описание

Boost Me Give this design a boost, if you want to support my work.

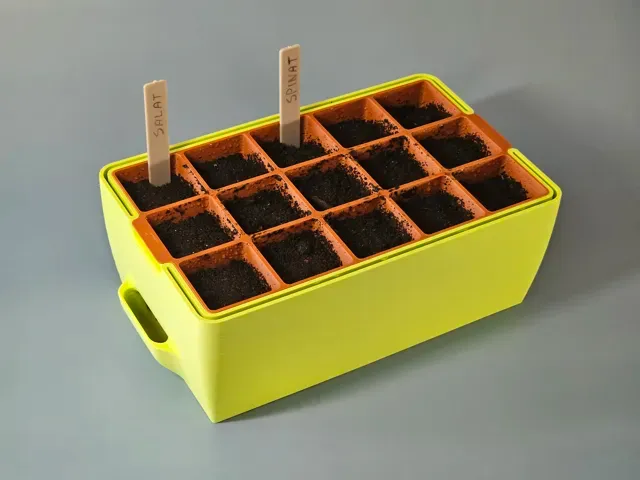

Create the perfect environment for your seedlings.

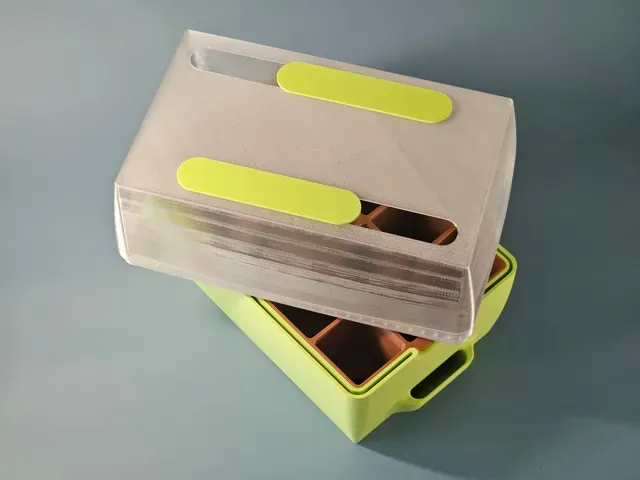

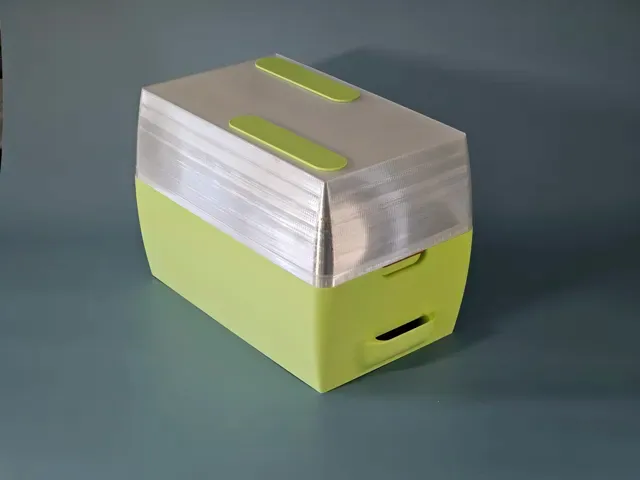

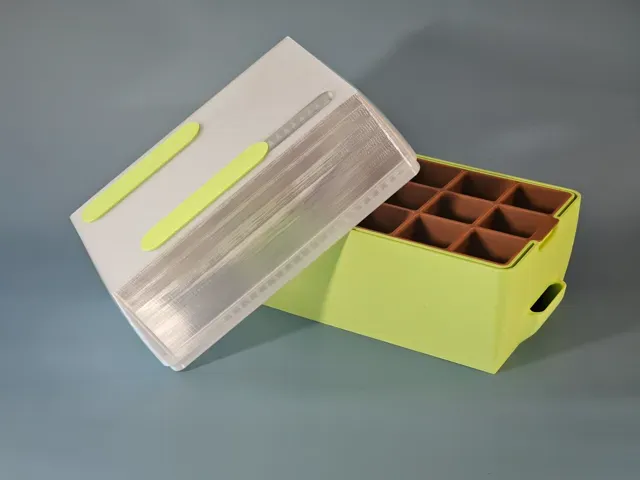

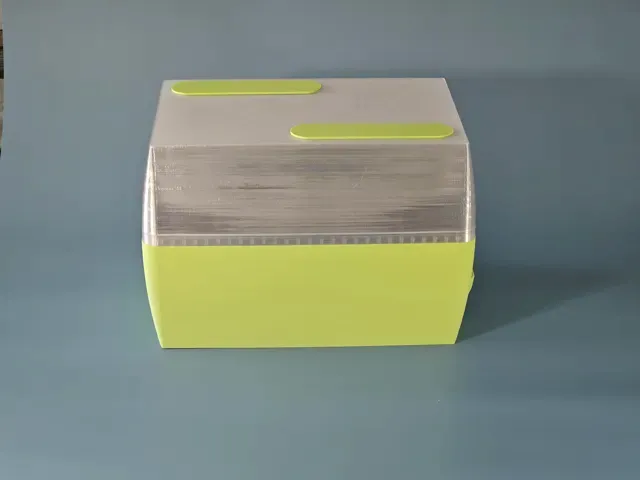

The plants are then enclosed within a translucent top, that allows plenty of sun/uv for the growth. It is also possible to adjust the humidity inside the enclosure with the topmounted airvents.

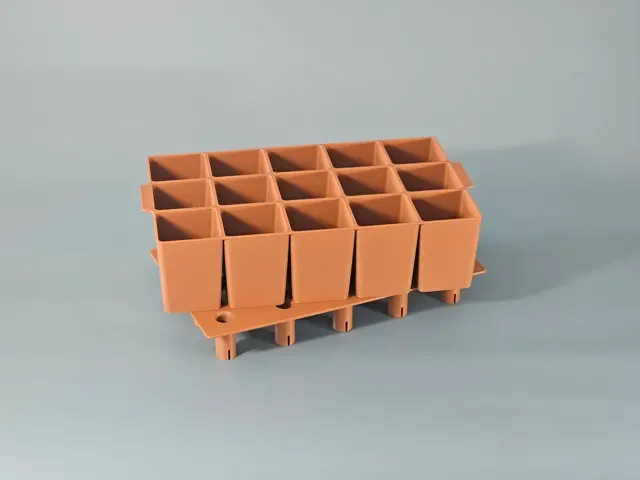

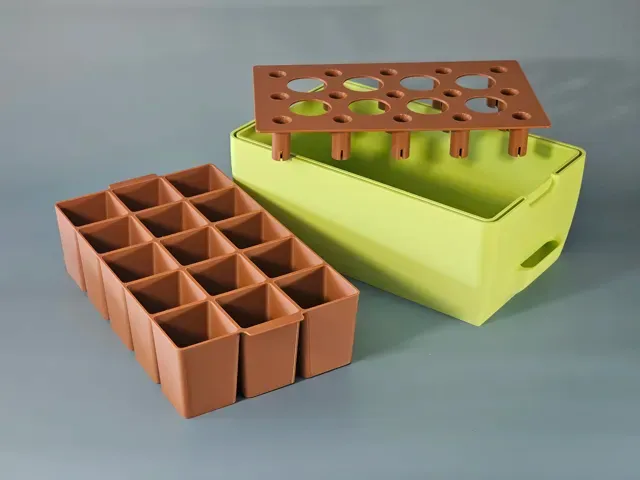

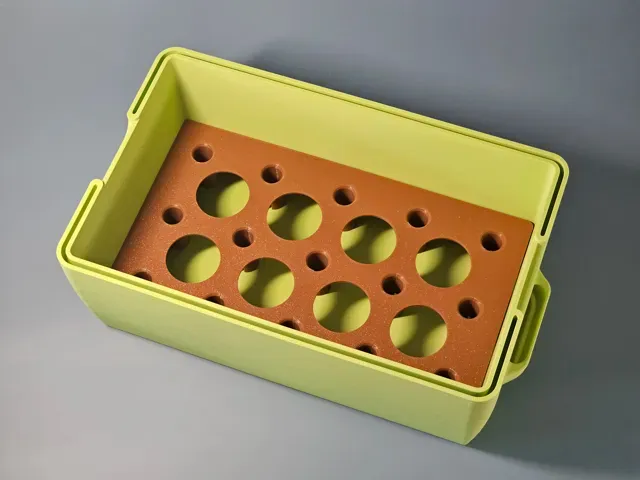

When the plants are ready to be planted out, the bottom tray can be flipped arround and

used to push out the plants a little bit from the pots.

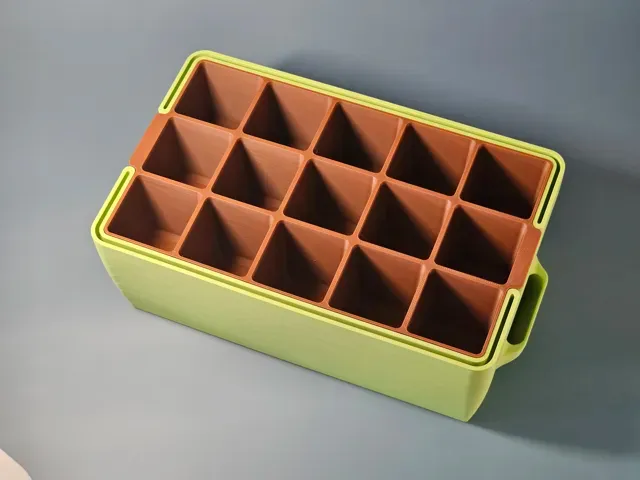

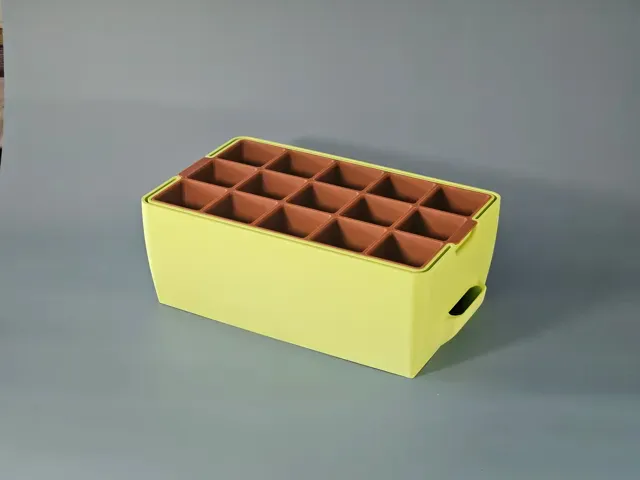

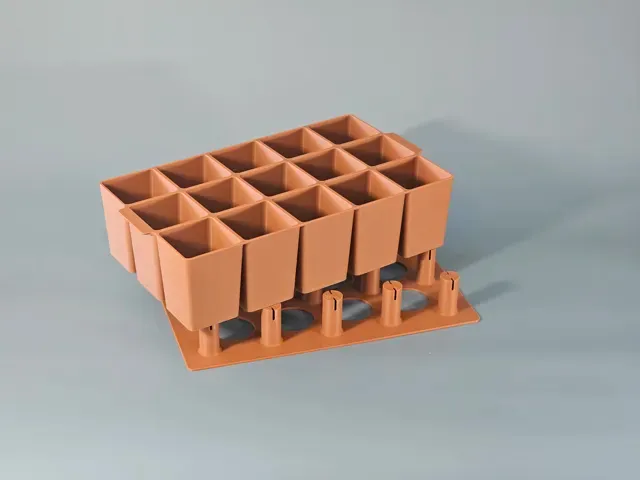

Each pot is 40 x 40 x 54 mm

Total dimension of seed starter is about 240 length x 142 width x 158 height

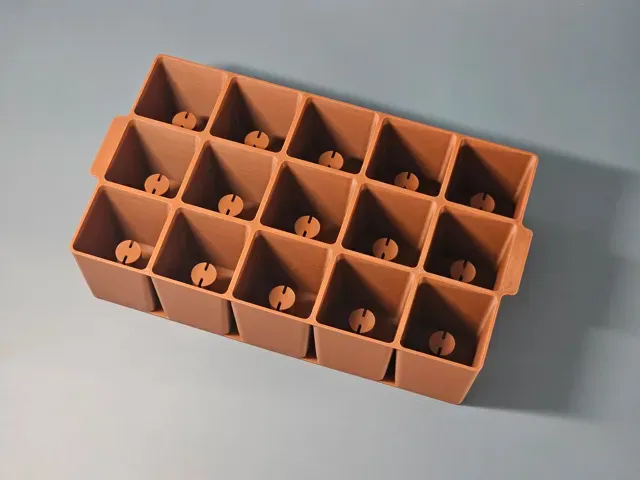

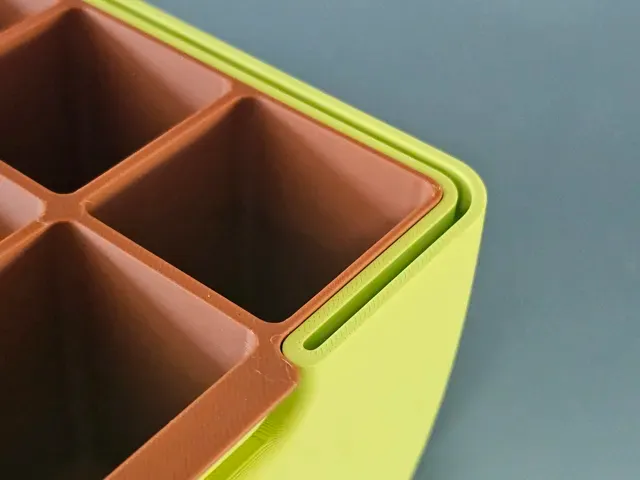

There are 1 water channel for each cup, where it is recommended to use a wicking material.

This helps to absorb water into the soil slowly and prevent e xcess moisture in the soil.

To much moisture can reduce oxygen in the soil, damage fine root hairs, and render the root system unable to absorb water.

i use cotton wool for water transfer to the soil.

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 2 walls, 15% infill
