Travel Container/Pill Holder (Variable/Parametric)

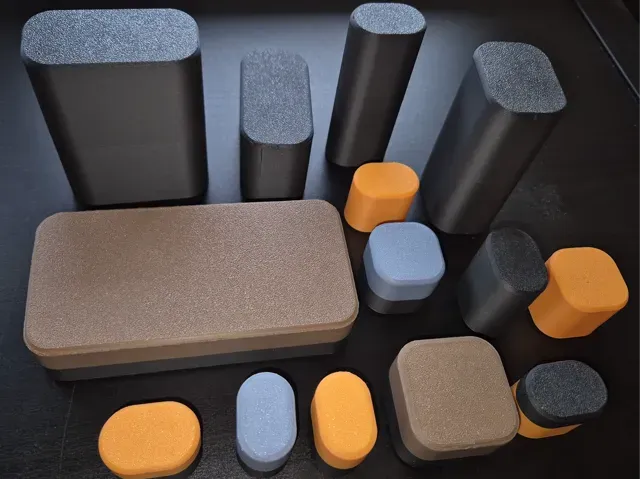

Small travel container with parametric dimensions. You can use it to store pills or other small items. Larger variants can be used to hold various items such as cotton swabs You can adjust all dimensions in the model file.

Default sizes: 3x2x3 cm, 3x3x3 cm.

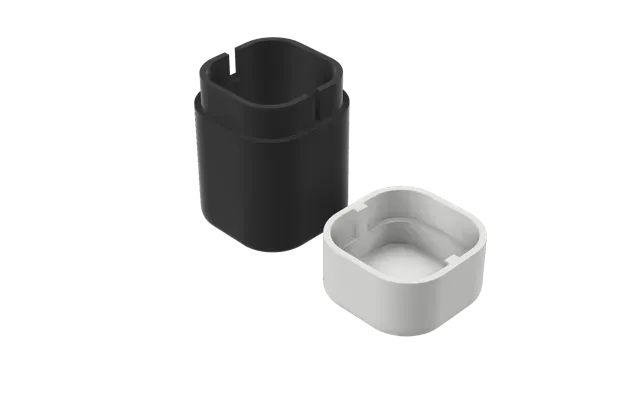

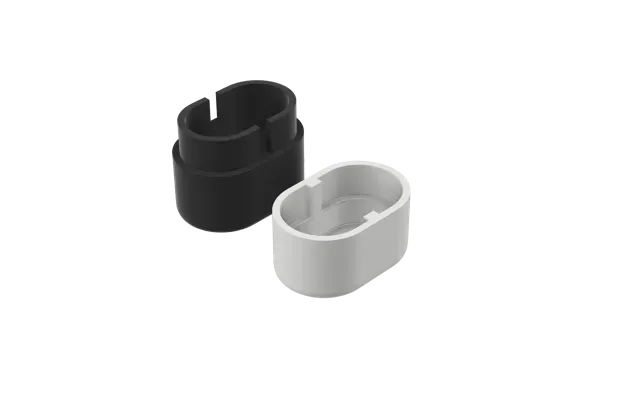

The container is made of a bottom and a top half. For the first few times the fit may feel very tight, the container may feel hard to open, but it will smoothen out after a few opens/closes.

To open the model file you need Fusion 360 (free for personal use): https://www.autodesk.com/products/fusion-360/personal Open the .f3d file and adjust parameters in Solid > Modify > Change Parameters.

Update: You can now use the customize functionality of MakerWorld to create your own variants.

Core parameters are:

- Width : the width of the base of the container - Length : the length of the base of the container - BottomHeight : the height bottom half of the container - TopHeight : the height of the top half of the container - Rounding : the radius of the rounding of the edges For a circular container set the Width and Length parameters to the same value, and set the rounding to (Width / 2 - 0.01mm) .
