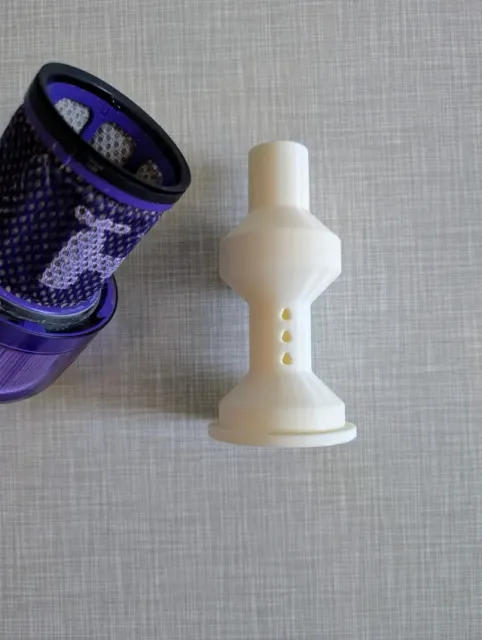

Dyson V11 V15 Filter Cleaning Faucet Adapter

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 1 442 Лайки
  • 2 653 Загрузки
  • 2 229 Напечатали
  • 5 164 В подборках
  • 139 Бусты
  • 395 Комментарии
  • 0 Просмотры

Автор:MINT & MAX

Опубликована

Описание

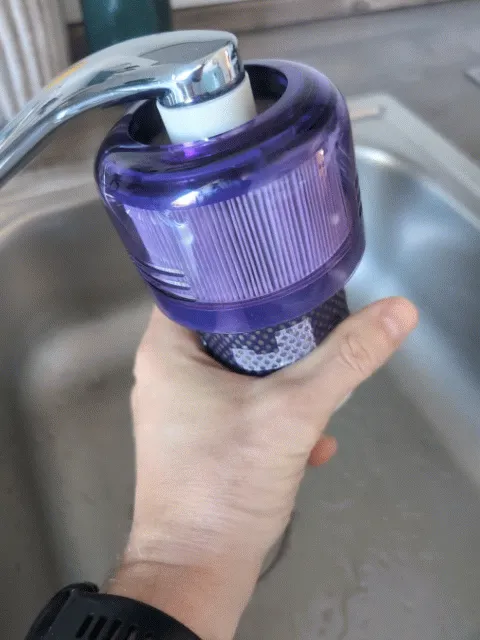

Clean your Dyson V11 & V15 filter thoroughly and safely directly from your faucet!

Unlike traditional cleaning methods, this adapter features an inverted bottom-to-top water flow design. Dirty water drains away immediately without forcing debris deeper into the delicate paper filter media or soaking through it.

Key Features:

- Smart Reverse Flow: Prevents dirty water from penetrating the internal paper filter, extending filter lifespan. - Precision Fit: Specifically tailored for Dyson V11 and V15 filter housings. - Snug Faucet Seal: Designed for standard 23.8 mm diameter faucets to ensure a firm, leak-resistant connection. - Deep Cleaning Power: Flushes out trapped micro-dust to restore optimal vacuum suction. Compatibility & Connection:

- Vacuum Model: Dyson V11 & Dyson V15 - Faucet Compatibility: Includes multiple print profiles for a perfect fit - Standard Spout: 23.80 mm diameter - Slightly Larger Spouts: 24.30 mm & 24.80 mm - Special Size: 28.15 mm How to Use:

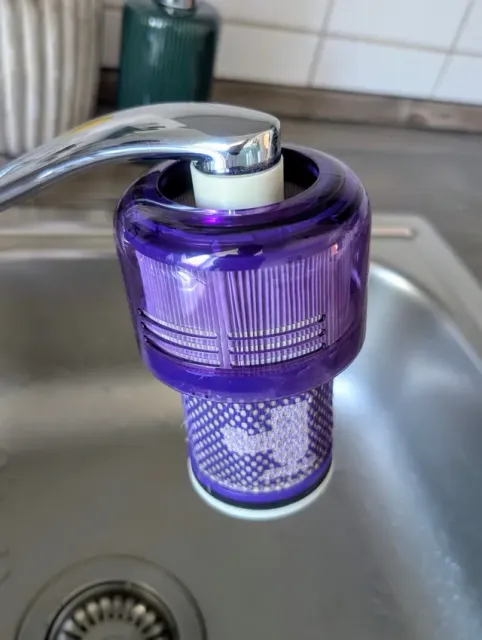

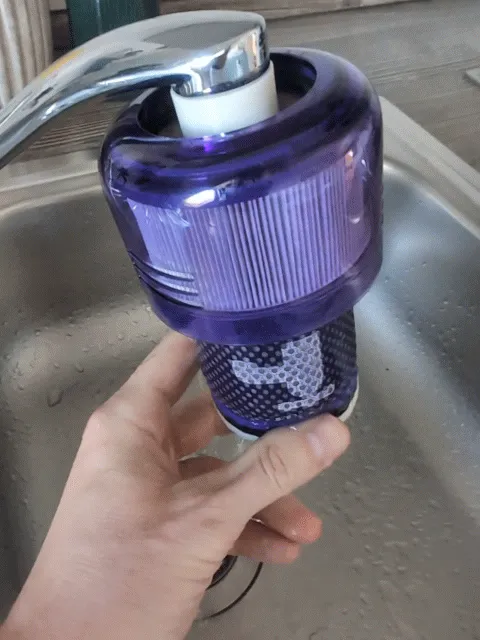

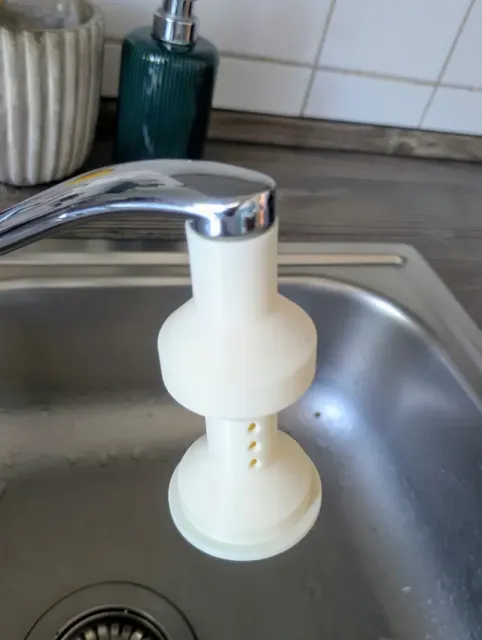

- Insert the adapter firmly into the Dyson filter. - Push the adapter onto your faucet spout. - Apply gentle pressure on the filter so the rubber seal sits tight against the spout. - Turn on the water slowly, gradually increasing pressure as needed. - Gently rub and squeeze the outer filter material to help release stubborn dirt. - Turn off the tap and allow all remaining water to drain out completely. - Disconnect the adapter from the faucet, then remove it from the filter. - Important: Let the filter dry completely for at least 24 hours before reinserting it into your vacuum! - Wipe the adapter dry after use.

Руководства и профили печати

Профили печати и шаги

23,80 mm Inner Dia - PETG - 0.2mm layer, 2 walls, 15% infill Maße/Toleranzen so ausgelegt, dass mit diesem Druckprofil folgendes erreicht wird:

- Fester Sitz am Wasserhahn, Durchmesser 23,8 mm. - Sehr gute Abdichtung zum Filter.

28,15 mm Inner Dia - PETG - 0.2mm layer, 2 walls, 15% infill

24,30 mm Inner Dia - PETG - 0.2mm layer, 2 walls, 15% infill Der Innendurchmesser ist 0,5 mm größer als die Standardversion. Damit passt der Adapter auch an etwas größere Wasserhähne.

24,80 mm Inner Dia - PETG - 0.2mm layer, 2 walls, 15% infill Der Innendurchmesser ist 1,0 mm größer als die Standardversion. Damit passt der Adapter auch an etwas größere Wasserhähne.

23,80 mm – PLA – 0,2 mm Schicht, 2 Wände, 15 % Füllung Maße/Toleranzen so ausgelegt, dass mit diesem Druckprofil folgendes erreicht wird:

- Fester Sitz am Wasserhahn, Durchmesser 23,8 mm. - Sehr gute Abdichtung zum Filter.

50.15mm to 23.8 mm adapter I own the faucet where you can pull out the nozzle and adjust where you spray.  It has a 50.15 mm diameter so I made an adapter.

Easy Pezee

32 mm inlet version for hose type tap This was printed in Bambu PETG-HF, ensure that you select the correct filament before printing if you are not using that type of filament.
