Unifi Cloud Key Gen 2 Rack Mount / Keystone

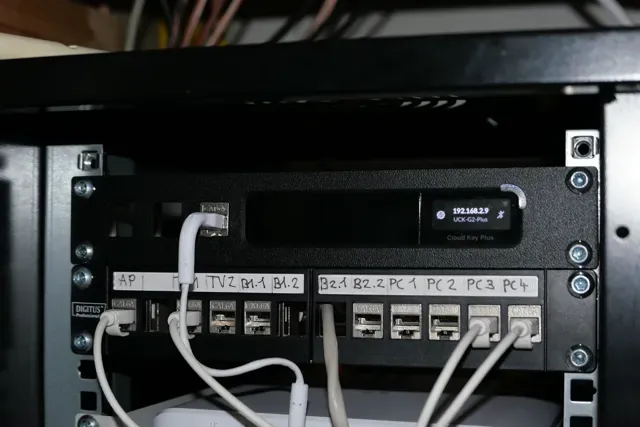

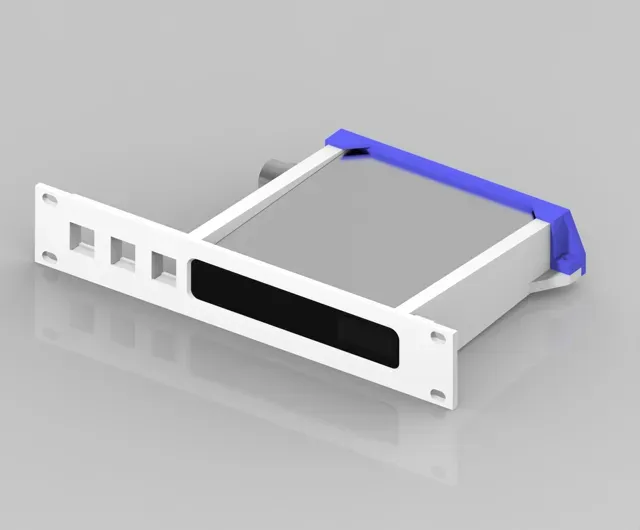

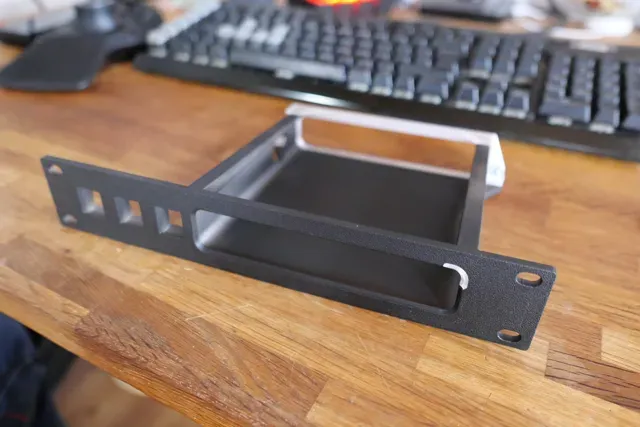

Overengineered 9.5"/10" Rack Mount for UniFi Cloud Key Gen2 Plus

Designed specifically for easy 3D printing, no supports needed.

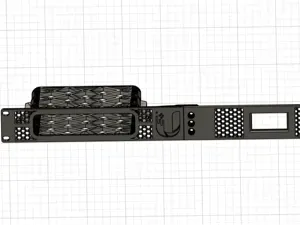

As you can see in @highlandercust 's rating, you can combine with any other 10'' mount, to adapt to 19''.

Features:

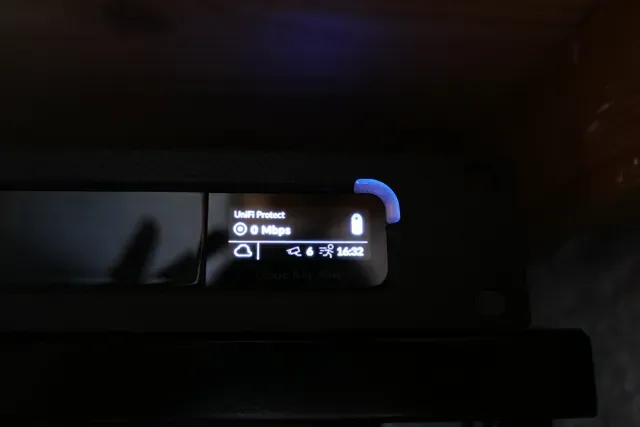

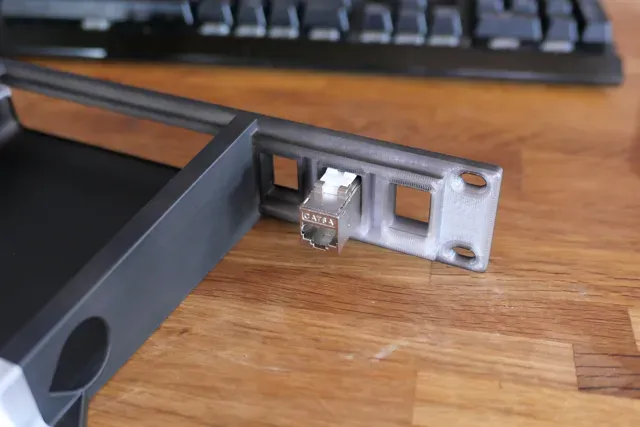

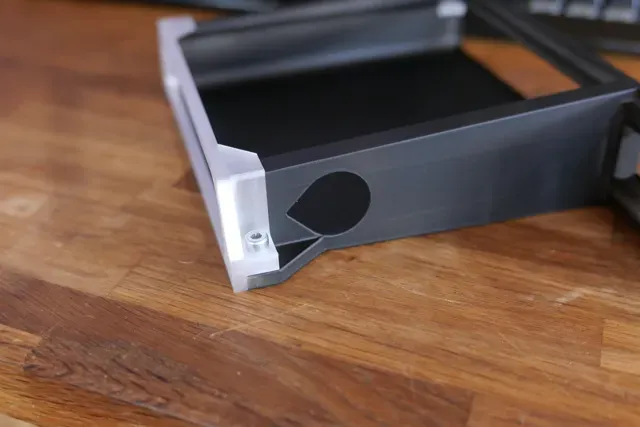

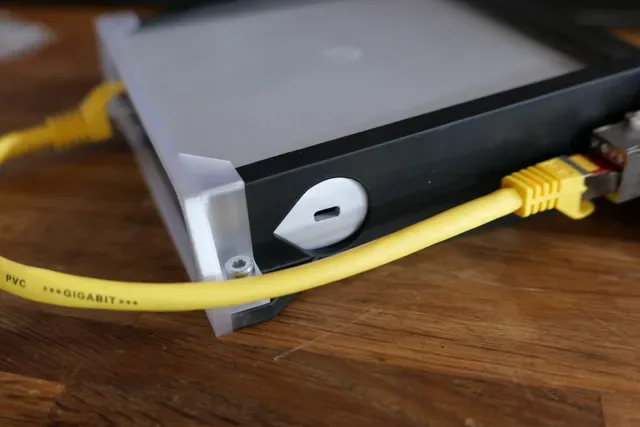

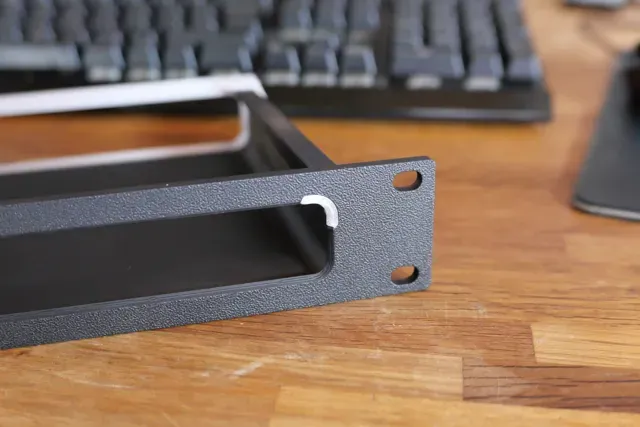

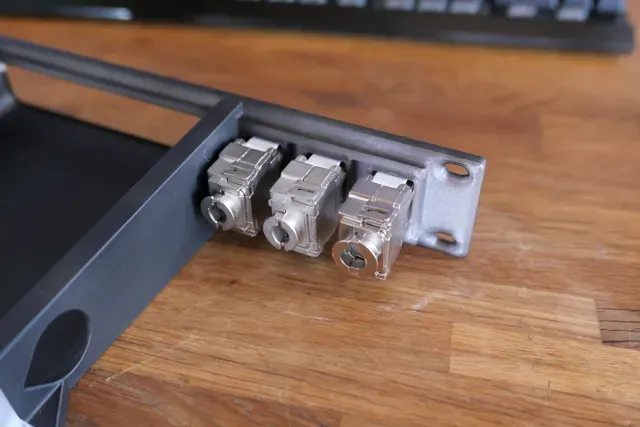

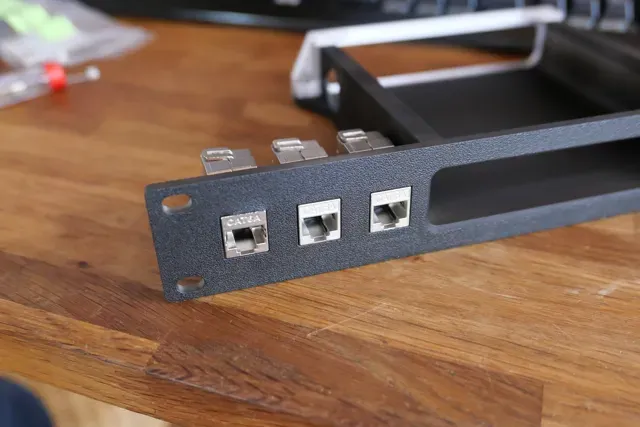

- Keystone patch panel (3,1 or 0 slots) - Cutout for Kensington lock - Diffusor for the status LED - Rear locking plate that holds the device securely in place. - 2x M4 nut slots - 2x M4x10 screws to secure the locking plate Available in three versions:

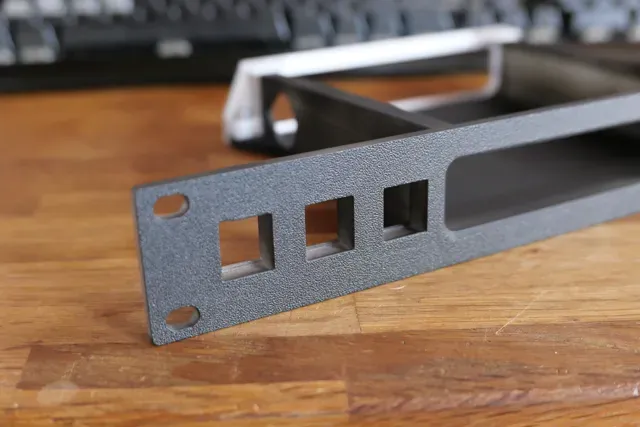

- No Keystone slots - 1 Keystone slot - 3 Keystone slots

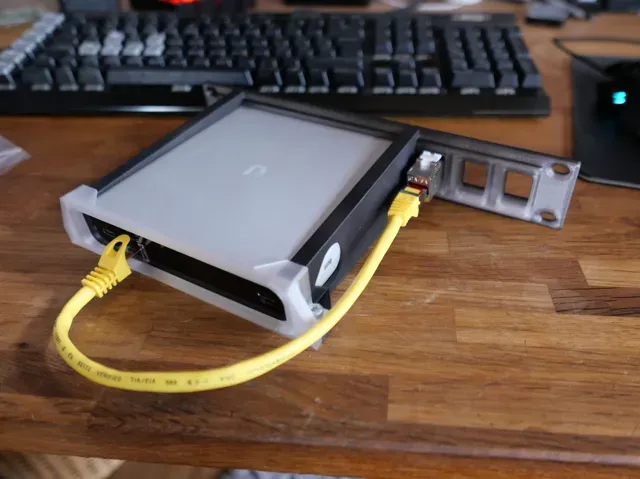

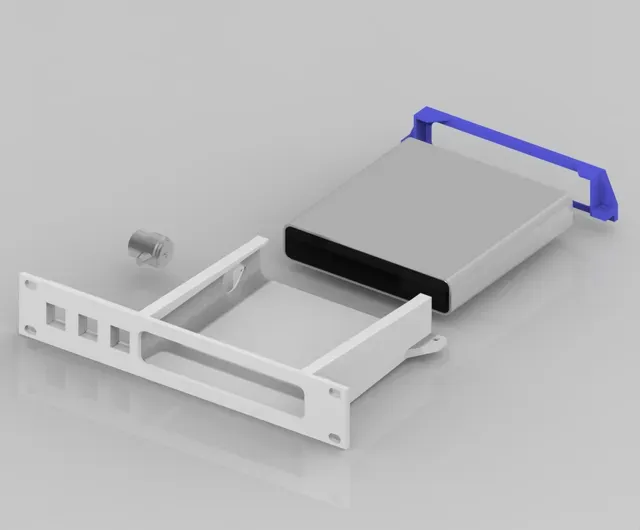

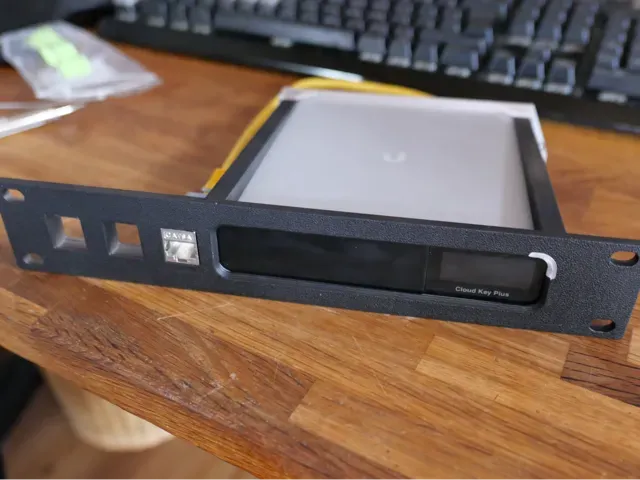

Installation: Slide the Cloud Key in from the back, then secure it with the locking plate, using 2x M4x10 screws and 2x M4 nuts in the integrated press-fit slots.

Note:

The nut slots are designed with a tight press-fit to hold the M4 nuts securely in place. For easy assembly, place the nut on top of the slot and use a screw to pull it in. This ensures a snug, accurate fit without damaging the print.

Material:

PLA should work fine for most setups. However, if you're in a warmer environment where the Cloud Key might exceed 57 °C, consider using PETG, ABS, or ASA for better heat resistance and long-term durability.
