Modular Sliding Drawer – Fully Parametric Box

Modular Sliding Drawer – Fully Parametric & Stackable Storage System

Created in OpenSCAD

Tidy up your workspace, drawer, or hobby station with this customizable sliding drawer box, designed 100% in OpenSCAD for FDM 3D printing. Featuring a clean modular container and a perfectly fitted drawer, this print is great for storing screws, electronics, SD cards, and more.

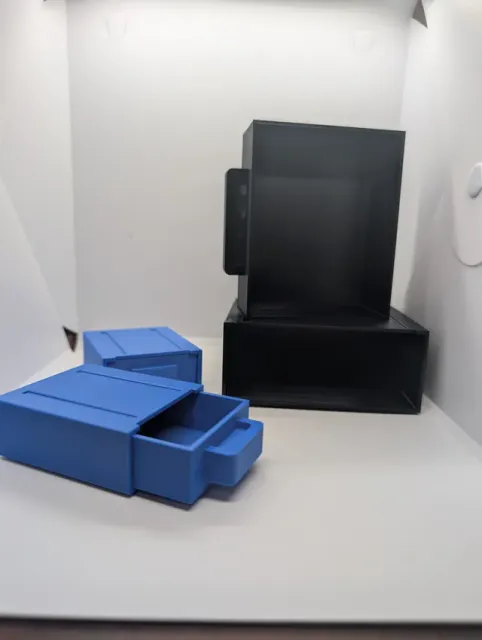

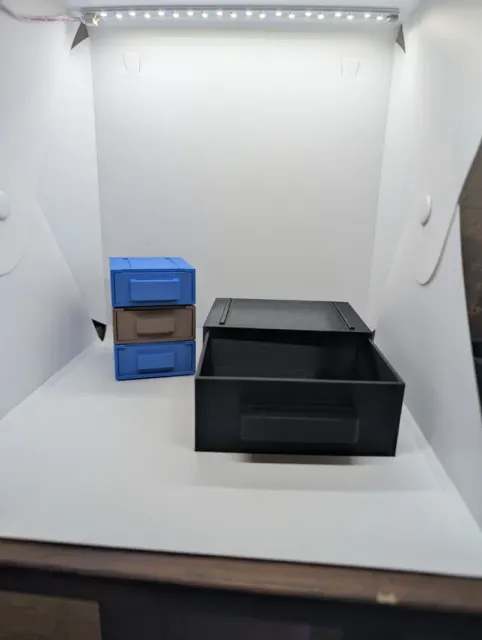

Best of all? The containers are stackable — designed with flat surfaces and precise tolerances so you can place one neatly atop another without additional clips or modifications.

🔧 Features Fully parametric dimensions (width, depth, height)

Optional internal rails for smooth drawer sliding

Optional grooved handle for grip or style

Configurable tolerances and wall thickness

Drawer preview can be placed on the side or in front

Flat-top design for stacking multiple containers

Optimized for FDM — print flat, no glue or screws needed

🛠️ Using the OpenSCAD Code You can use the Printables Customizer or directly modify the .scad file. Here’s how:

openscad Copia Modifica // Basic setup container_width     = 50;    // Box width in mm container_depth     = 60;    // Depth of the drawer container_height    = 20;    // Total height wall_thickness      = 2;     // Thickness of container walls tolerance           = 0.5;   // Drawer-container clearance

// Extra options use_rails           = true;  // Adds sliding rails use_groove          = true;  // Adds groove on drawer handle print_container     = true; print_drawer        = true; drawer_on_side      = true;  // Position of drawer preview 📐 Preview Customization You can rotate and position both elements to fit your slicer preview or render style:

openscad Copia Modifica container_rotation = 0; drawer_rotation = 0;

🖨️ 3D Printing Notes

Supports: May be required, depending on orientation.

👉 Printing both parts flat on the build plate = no supports needed

⚠️ Vertical orientation or certain rail positions may require supports

Recommended Layer Height: 0.2 mm

Infill: 15–20%

Material: PLA or PETG

Post-processing: Usually minimal. Tolerances work well on calibrated printers.

🧱 Use Cases Tool drawers

Electronic part organizers

Office or desk storage

Modular hobby boxes

Stackable sorting bins for hardware

✨ Poetic Phrase “Precision in layers, order in drawers — designed to fit your world, one click at a time.”

🏷️ Tags modular drawer, stackable box, parametric drawer, customizable storage, sliding drawer, 3D printed organizer, OpenSCAD drawer, workshop organizer, tool drawer, rail drawer, box with handle, support optional, FDM print, functional print, print-in-place drawer, container system, drawer organizer, maker project, drawer with rails, OpenSCAD box
