Split Flange Snap-On Escutcheon for 1.5" PVC Pipe

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 67 Лайки
  • 431 Загрузки
  • 276 Напечатали
  • 211 В подборках
  • 4 Бусты
  • 38 Комментарии
  • 0 Просмотры

Автор:mattformed

Опубликована

Скачать на MakerWorld

Описание

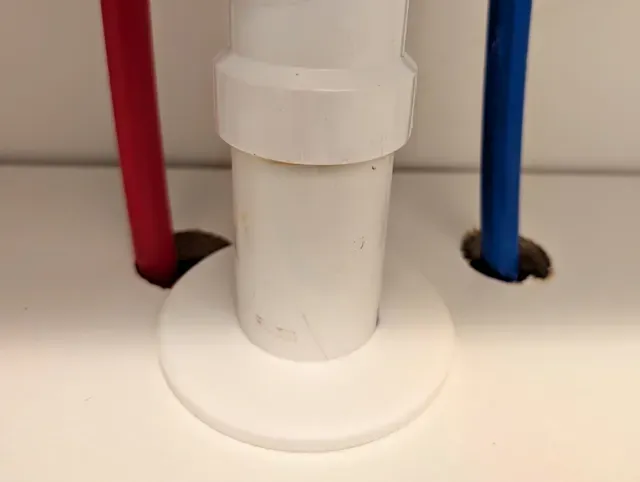

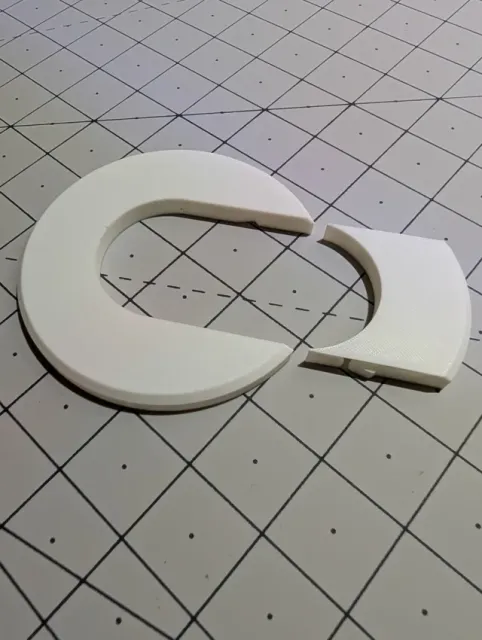

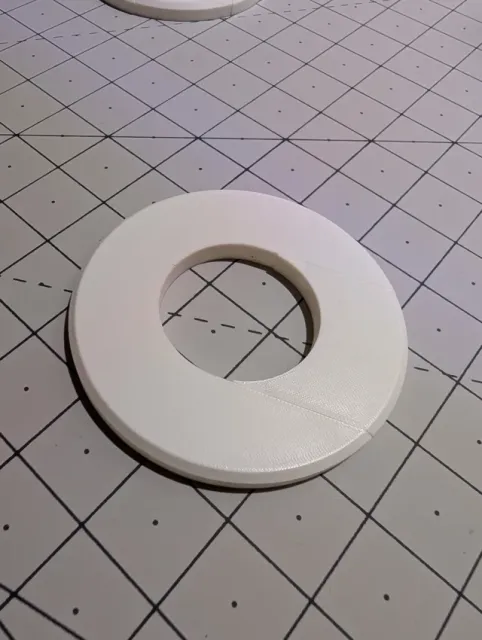

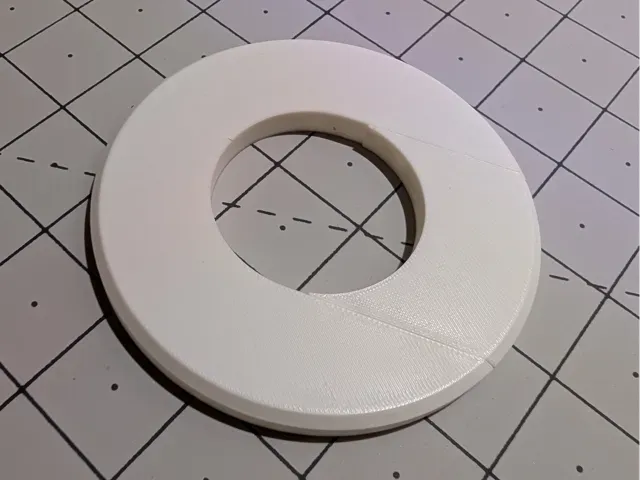

I designed this two piece snap together flange/cover (otherwise known as an escutcheon) to cover up the rough-in holes for the pvc drain pipes in our cabin's new bathroom vanity and kitchen cabinets. With a 4" diameter, it should be big enough to cover up a 2.5/3" hole saw (and the tweaks for when you didn't measure twice). I printed this in white PLA.

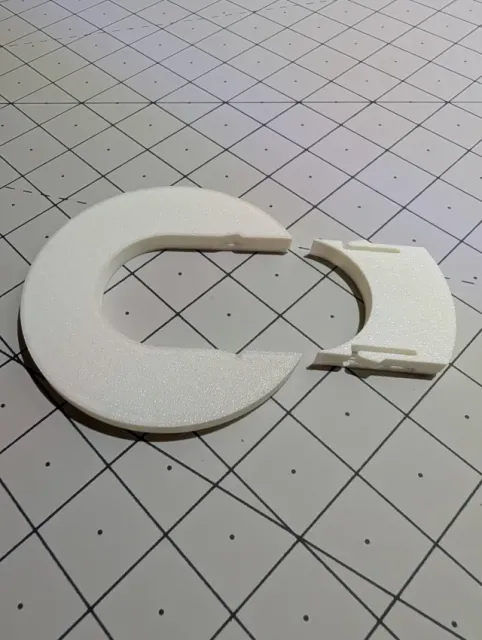

It is designed to be a secure fit over a 1.5" pvc pipe, and the clip is loose enough so that it is easy to pull apart.

Please let me know if you need any other size variants, I would be happy to model them up!

No supports! I've reconfigured the snap-in piece so that it uses an angled support piece to enable printing without supports. Please use the “Main Profile” for faster prints and no support removal!

Check it out my collection of escutcheons for PVC pipes here: https://makerworld.com/en/collections/9482517-split-flange-pvc-pipe-escutcheon

Check it out my collection of escutcheons for PEX pipes here: https://makerworld.com/en/collections/19356493-split-flange-pex-pipe-escutcheon

Check it out my collection of escutcheons for galvanized steel pipes here: https://makerworld.com/en/collections/19356731-split-flange-for-galvanized-pipe

Руководства и профили печати

Профили печати и шаги

Main profile (no supports, improved fit) No supports! This profile utilizes an angled support instead of an overhang. It also uses the slightly looser and improved fit. Recommend using this one!

Slightly looser fit Slightly looser fit for pipes which need a little more clearance.

0.16mm layer, 2 walls, 15% infill Bambu PLA Basic (White)

.16mm layer height

Auto tree supports enabled
