Rocket with Boosters (2 Sizes)

Площадка: MakerWorld
Цена: Бесплатно
Лицензия: PRIVATE-USE; Только для личного использования: печатать для себя, без продажи и распространения.
Форматы: STL

6 758 Лайки
21 459 Загрузки
14 489 Напечатали
16 884 В подборках
948 Бусты
1 881 Комментарии
0 Просмотры

Эта модель на других площадках

Printables

Автор:3DPmom

Опубликована 20.01.2024

Скачать на MakerWorld

Описание

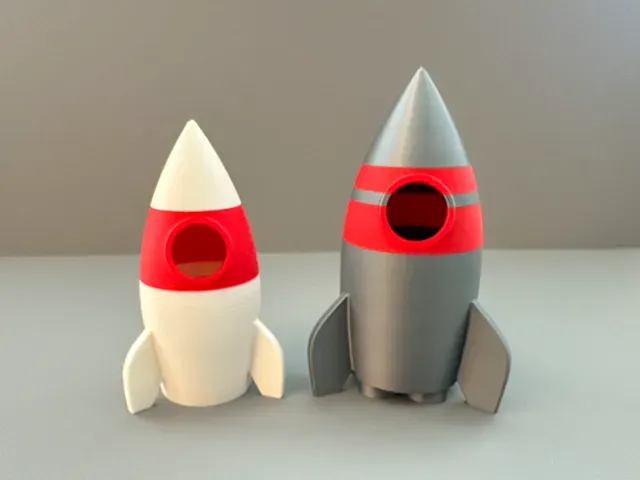

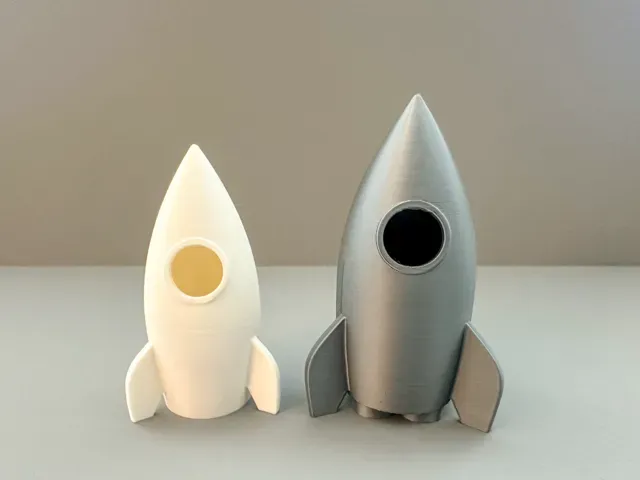

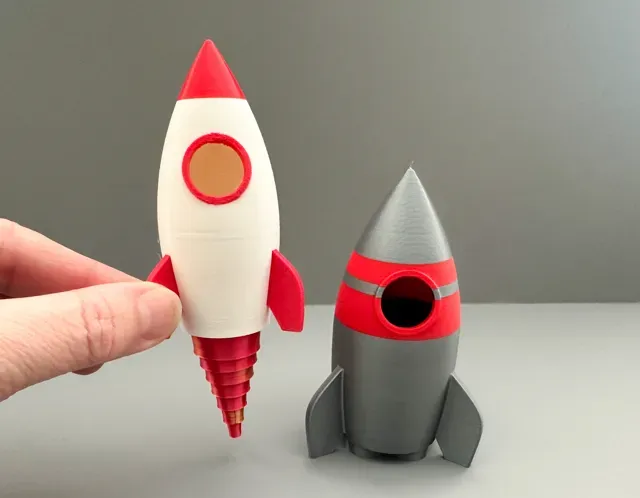

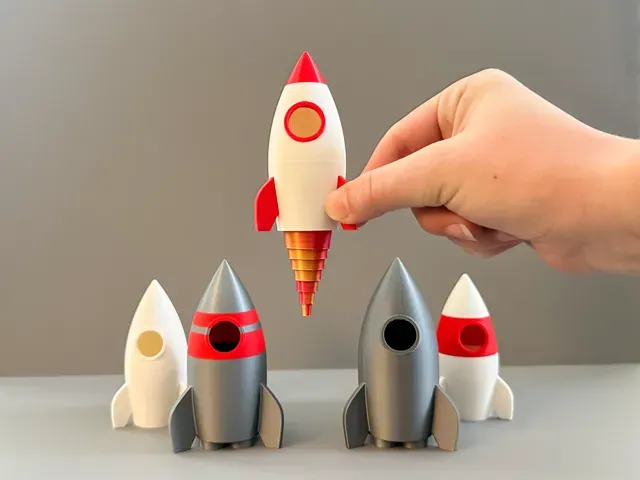

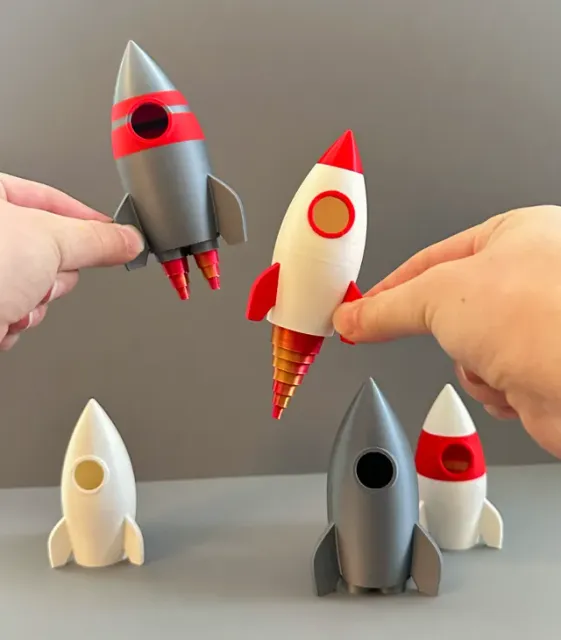

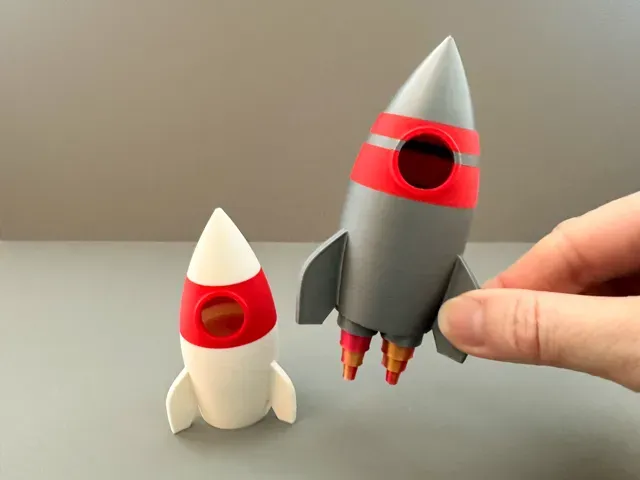

These are fun rockets with boosters that extend on take-off. I designed two sizes and each contain two parts: the main rocket body and the boosters. The larger rocket has four small boosters and the smaller rocket has one large booster. These make great little gifts or party favors 🚀

Layer Height 0.2mm

PLA works great

15-20% Infill

Supports needed for the area around the boosters on the Large Rocket

Dimensions of Large Rocket: 4in x 2 3/8in

Dimensions of Small Rocket: 3 1/4in x 1 7/8in

There are two ways you can print these rockets (I included both in their print profiles):

- Print the complete rocket: this prints great but if you want multi-color for the boosters (and/or fins) it’s going to take some time (I found 8-10hrs) - Print the boosters first, print the rocket second pausing at layer height 15.6mm for the large rocket and 30.6mm for the small rocket , drop the boosters in and then continue printing. This method is much faster:)

In the print profile for the small rocket I included the complete rocket to print on plate #1. On plates #2 & #3 I separated the rocket from the boosters, so they can be printed separately (make sure to print the boosters first:)

In the print profile for the larger rocket I included the complete rocket to print on plate #1. On plates #2 & #3 I separated the rocket from the 4 sets of small boosters so they can be printed separately (again make sure to print the boosters first:)

Note: supports are needed for the larger rocket at the base around the rings for the boosters. I have included those supports in my print profile. (Also note if you are printing plate #3, I did not include supports in the booster chambers so that they are clear to drop the boosters in:)

My designs are free for personal and non-commercial use. If you would like to sell them for commercial use, send me a message and we can discuss the details:)

If you like my work and want to help support it, you can buy me a Diet Coke at https://www.buymeacoffee.com/3dpmom

Thanks so much!

Have fun printing these…they’re a blast 🚀

Руководства и профили печати

Профили печати и шаги

Small Rocket, 0.2mm layer, 2 walls, 15% infill 0.2mm layer height

prints with no supports

colorized with red and white

plate #1 contains complete model

plate #2 & #3 contain two parts of model to be printed separately

Large Rocket, 0.2mm layer, 2 walls, 15% infill 0.2mm layer height

supports needed at base around booster rings

colorized with red and silver

plate #1 contains complete model

plates #2 & #3 contain parts of model separated

Less Color Change Variant - 0.2mm layer, 2 walls, 15% infill This is a slightly different color arrangement on the rocket.

I made it such that only one color is ever printed per layer to speed up the printing.

Print time on this profile is around 90 minutes

0.2mm layer, 2 walls, 5% infill Single color, no AMS

Small Rocket 0.2mm layer, 2 walls, 15% infill This is the smaller single booster rocket. Compatible with the full lineup of Bambu printers.

Large Rocket, all printers, 0.2mm layer, 2 walls, 15% infill large rocket compatible with all printers

0.2mm layer, 2 walls, 15% infill, Outer Brim The fins kept popping off the plate a few layers into the print.

Washed plate. Still failed.

Added brim. Succeeded!

Fast one color rocket 0.2mm layer, 2 walls, 15% infill Print settings:

- 0.2mm layer - 2 walls - 15% infill

0.16mm layer, 2 walls, 15% infill 调整配色减少换色次数，同时调整层高为0.16，增加细节

0.2mm layer, 2 walls, 5% infill 0.2mm layer, 2 walls, 5% infill

0.2mm layer, 3 walls, 15% infill

Single booster rocket, print will pause to add the flames

Large Rocket, print will pause to add the flames

Smooth Bottom w/ PETG Supports and 0mm Interface Spacing This is the original profile but with PETG as the interface support layer with 0mm spacing to produce a smoother bottom than what you get with PLA support interface and normal support interface spacing. A smooth or textured plate can be used.
