MultiLink12: ArticulatedArm, Tripod, Clamp Options

MultiLink 12 is a modular articulated arm system designed to meet a big range of your equipment support needs. This versatile product features 12mm ball joints that provide seamless articulation, allowing you to configure and adapt it for a wide range of applications.

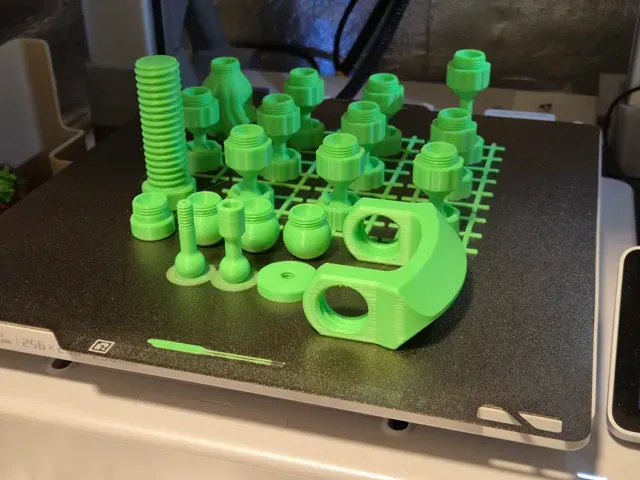

Recommended for use with PETG/ABS/ASA or superior materials (PLA can be used, but high performance may not be achieved). Layer height of 0.1mm to 0.2mm recomended . For joints that feature an external nut, a wide brim is recommended to ensure excellent bed adhesion during printing (this parts already have a grid support included that must be cliped after print).

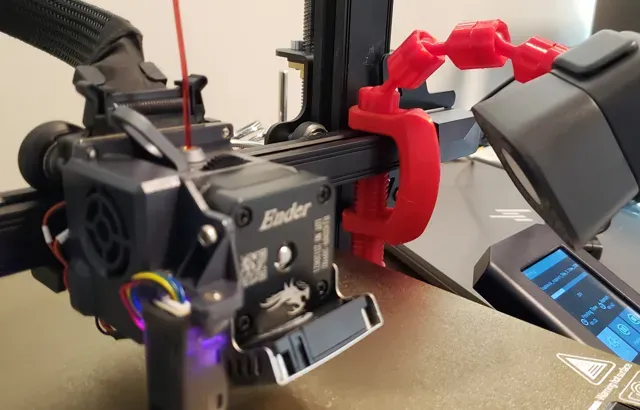

With the inclusion of a support for soldering clamps, MultiLink 12 becomes even more versatile for your electronics and soldering projects.

For added robustness and security, you can purchase a 12mm threaded ball joint in steel with a 1/4-inch thread. Use the plastic version provided here at your own risk.

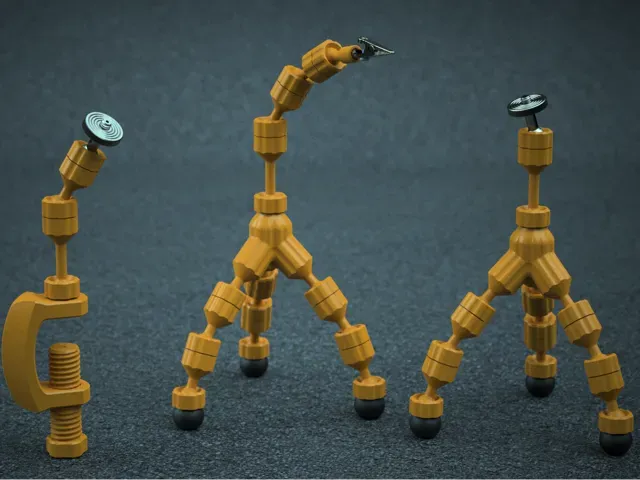

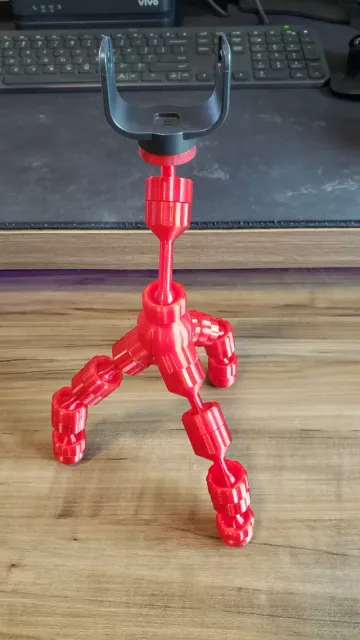

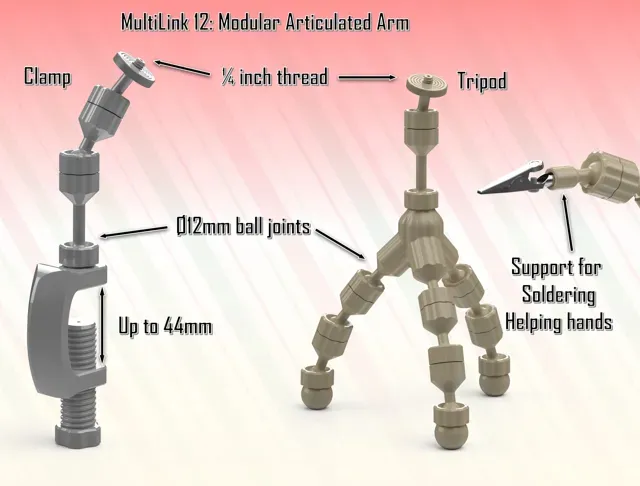

With MultiLink 12, you have the flexibility to choose between two mounting options: use the included clamp for quick and secure attachment, or connect multiple arms using the 4-way joint to create a tripod setup. At the end of the arm, you have the choice of a 12mm ball joint with a 1/4-inch threaded screw, enabling you to attach various equipment, including webcams, DSLR/mirrorless cameras, microphones, lighting, smartphones, soldering, and more.

The modular nature of the joints unleashes your creativity, empowering you to build custom tripod configurations or articulated arms of different lengths, or even combine both for the ultimate versatility.

Enhance your photography, videography, live streaming, soldering, and content creation with the MultiLink 12—where innovation meets adaptability, and your creative possibilities are endless.

Assemlby recomendation:

- Don't forget to clip the grid support from the joints - Use plastic grease on the ball joints for smoth movement and avoi the joints to break easy - Unscrew the joint thread before change position and screw to fix it in the desire position
