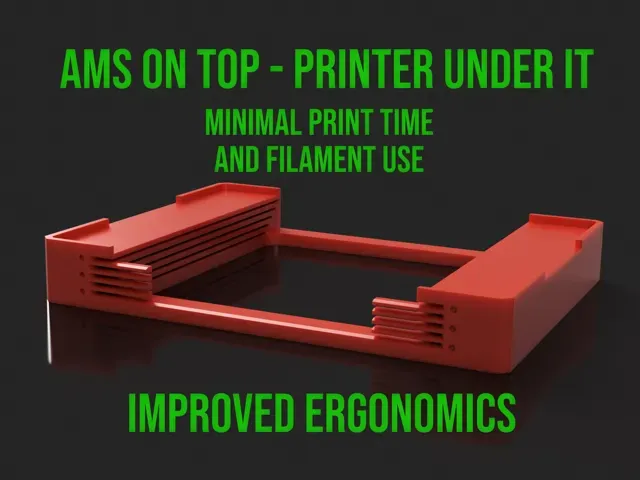

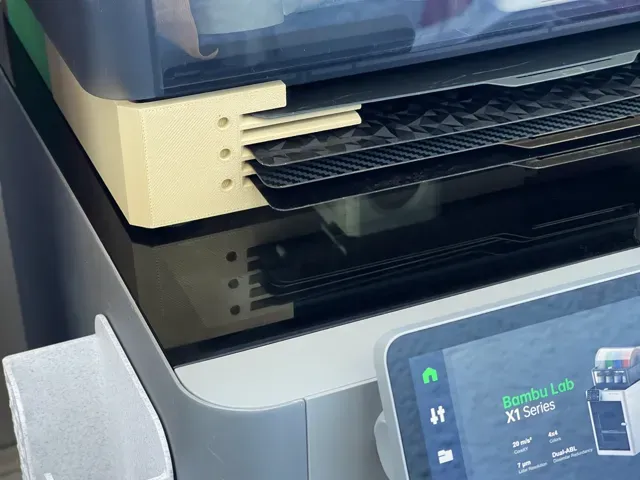

Build plate holder under AMS (5 plates)

Works with AMS 2 Pro also.

Update 31.01.2024:

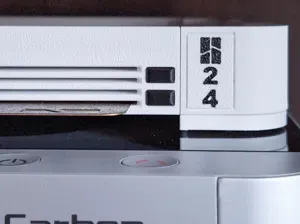

- Improved ergonomics: increased the front width of the slots for easier plate insertion. Added signs (circles) for 1,3,5 slots to see faster which slot corresponds in both sides.

I was having all my plates all over the place and what i could find already done, were prints of over 40 hours.

So … I did this design which fits my requirements:

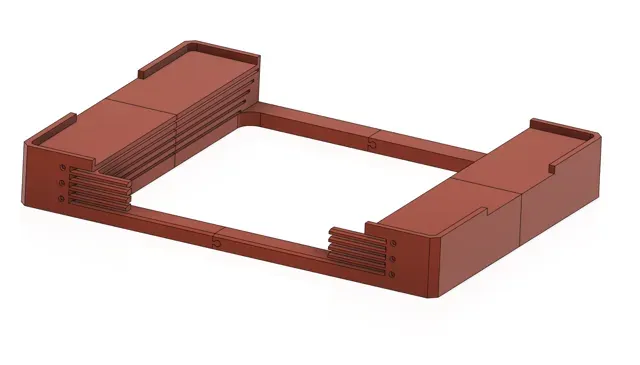

- storage for maximum of 5 plates. - ladder layout for easier access to the plates. - minimal time to print, no space waste around the printer etc. - easy to put together (glue the parts together if you want; 4 parts only). All parts are connected, so it's very stable with minimal material and time use. - one plate print. - use some anti slip pads under this support, as PLA is sliding easy over the printer glass top. Or print some TPU pads, as you wish. I used Anti Scratch Floor Protectors and works perfect.

9h:15min , 430 gr of filament. (X1 printer)

AMS surface size (lengths between AMS legs on the bottom):

- width 343 mm - depth 257 mm
