Описание

UPDATE 20260626:

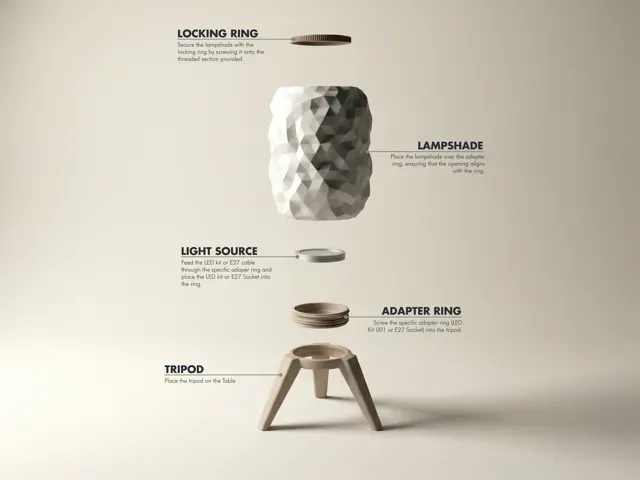

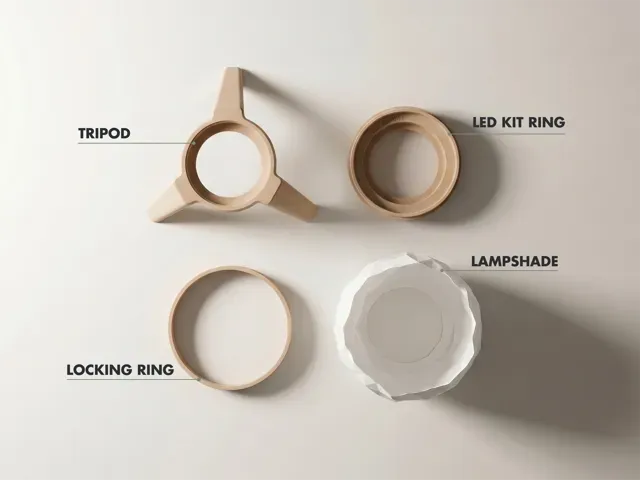

The adapter ring (LED Kit 001 or E27) can now be screwed directly into the tripod. A new locking ring has been added to securely fasten the lampshade to the tripod. Please note that, due to the dimensional changes, this version is not backward compatible. The previous lampshades are not compatible with the new tripod.

Table Lamp - with Tripod

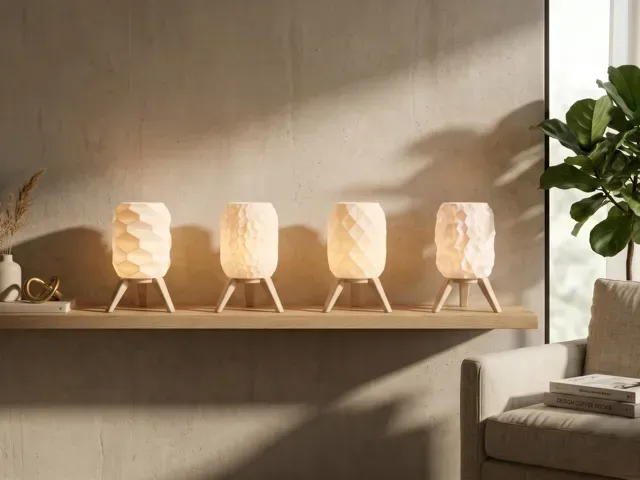

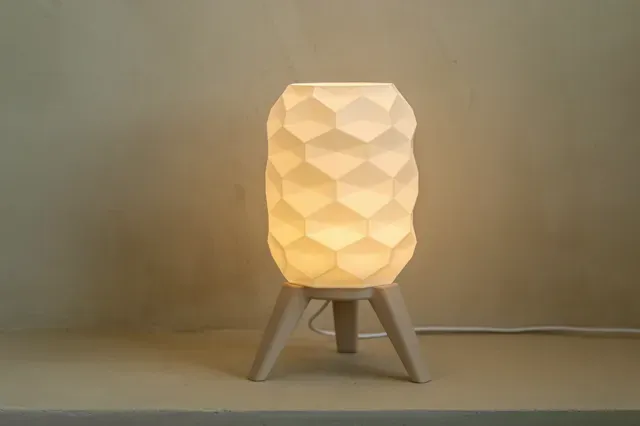

This stylish table lamp features a tripod stand and comes with six different lampshade options , allowing you to customize the look to your preference.

It is designed to work with either the Bambu Lab LED Lamp Kit MH001 or a standard E27 light bulb (please note: the bulb should not be too long).

Whether you're looking for an atmospheric light source for a beautiful summer evening outdoors, or want to illuminate your living room or bedroom – this lamp fits perfectly anywhere. For the Assembly instructions please go to the endof the description.

Dimensions

Lampshade: 130 mm (diameter) × 150 mm (height)

Tripod Base: 140 mm (diameter) × 70 mm (height)

Assembled Height: 230 mm

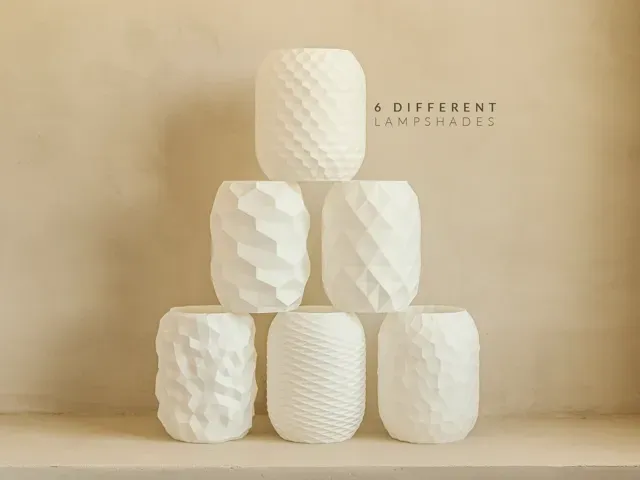

Lampshade Options

You can choose from the following six designs:

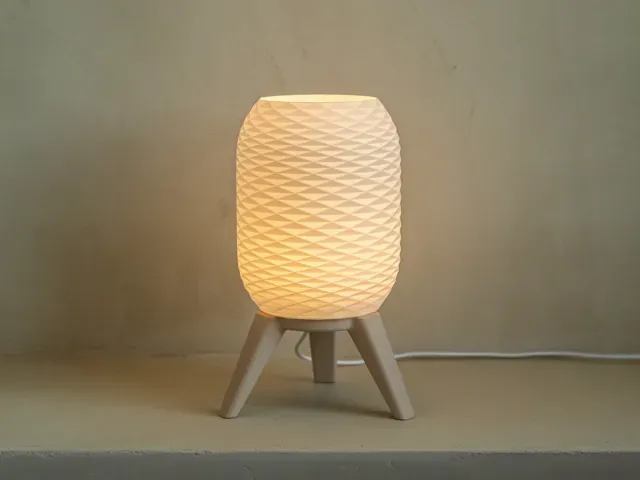

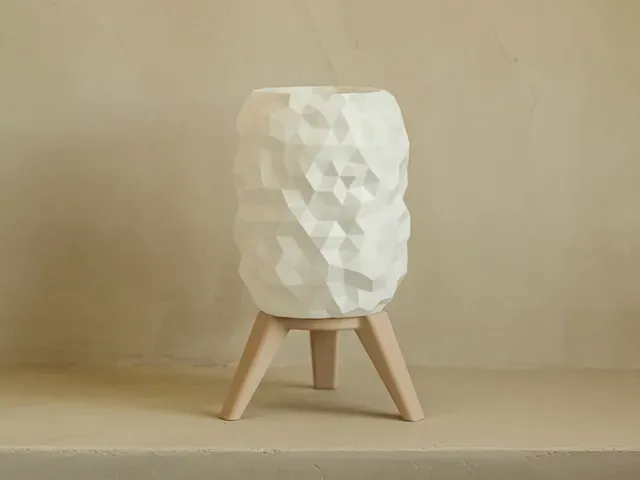

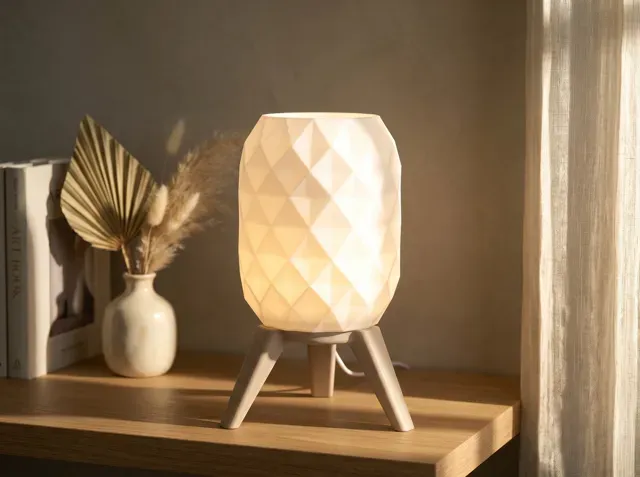

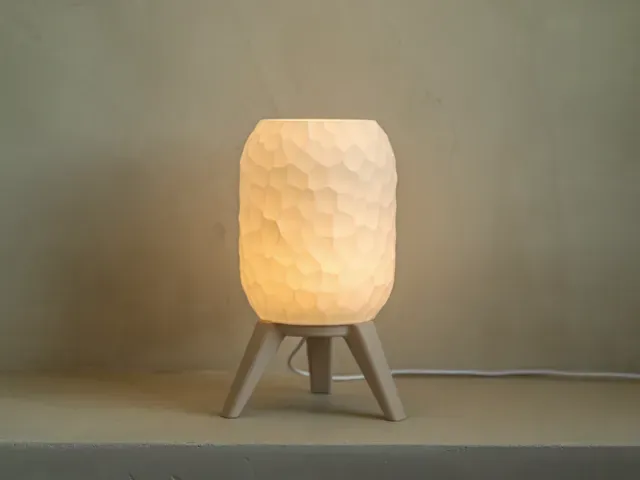

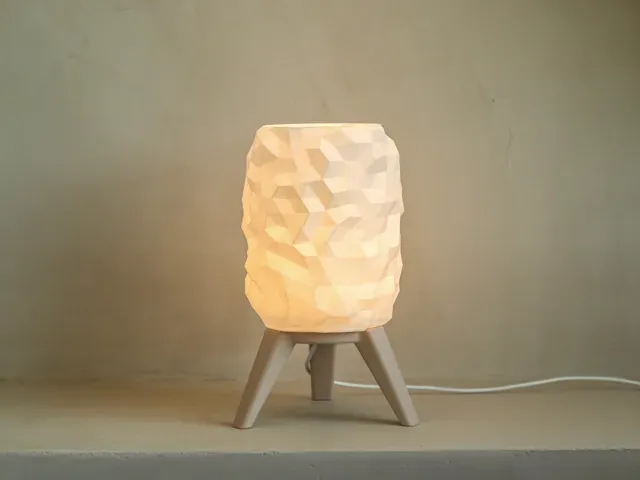

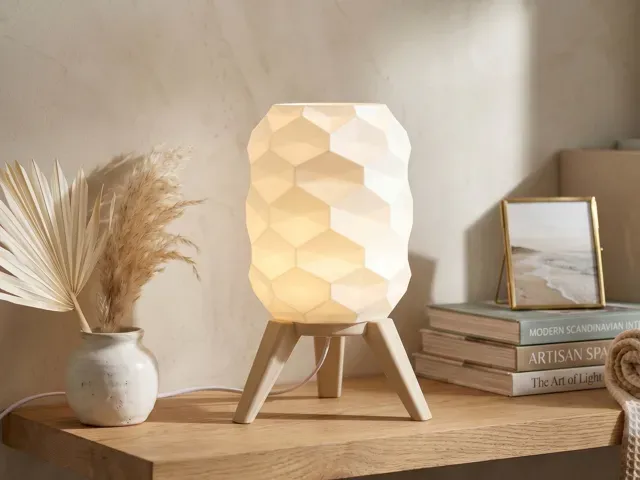

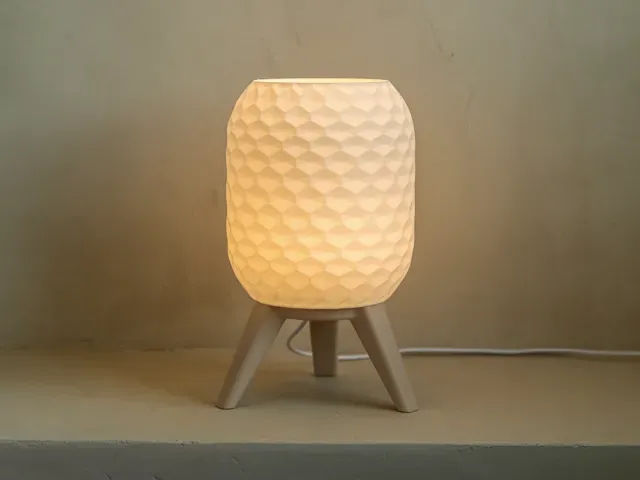

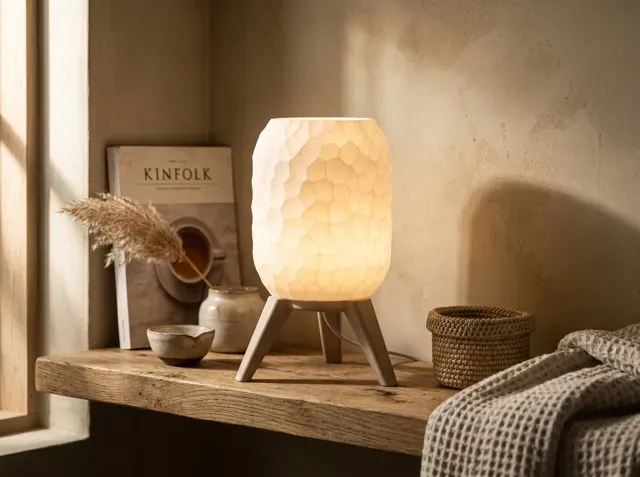

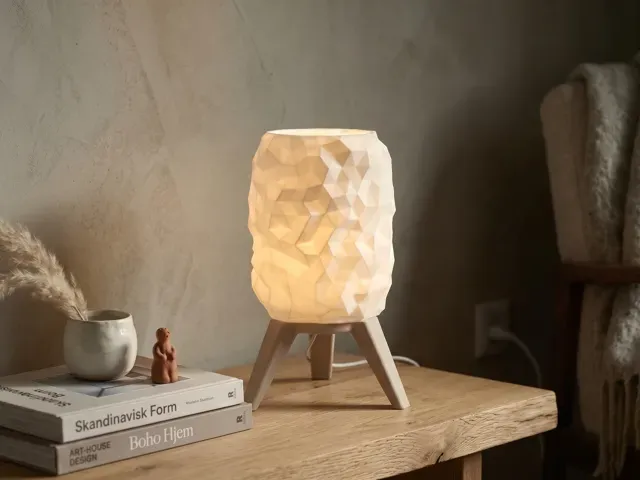

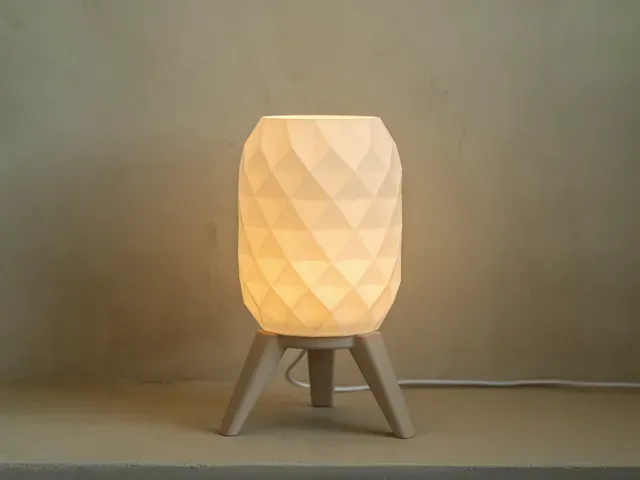

- Hex Big - Hex Small - Triangle Displaced - Voronoi - Diamond Big - Diamond horizontal Tripod Options

- Standart Version - Version with cable routing

Print time

Lampshades ~ 1 h

Tripod and adapters ~ 3.5 h

The tripod print is relatively slow by design. Do not increase the print speed if you want a high-quality result.

⚠️ Important: The lampshades are printed in vase mode (single-wall), so they are delicate. Be extremely careful when removing them from the print bed, as layer adhesion is weak and they can be easily damaged.

Assembly

Membership Boost Me Check my other Work aswell.

Руководства и профили печати

Профили печати и шаги

Lampshades - Vasemode Printed in Vase Mode.

0.2mm layer, 1 walls, 0% infill

⚠️ Important: The lampshades are printed in vase mode (single-wall), so they are delicate. Be extremely careful when removing them from the print bed, as layer adhesion is weak and they can be easily damaged.

Tripod Stand Please do not increase print speed if you want to keep a good quality of the tripod.

0.16mm layer, 2 walls, 20% infill

Tripod Stand A1 Mini 0.16mm layer, 2 walls, 20% infill

4 Different Options:

1.+2. Normal Tripod LED Kit 001 or E27 Version

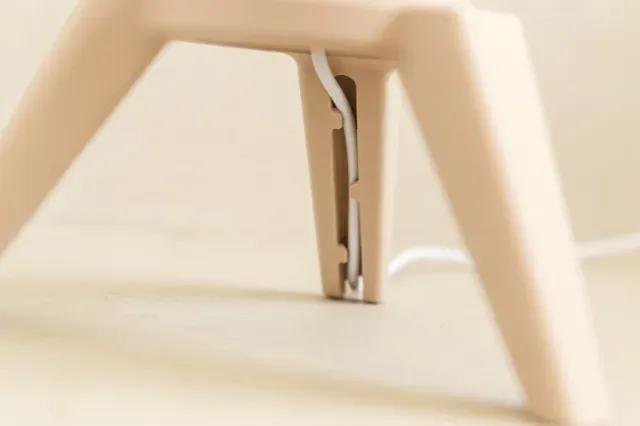

3.+4. Tripod with Cable Management Led Kit 001 or E27 Version

Top cover for Triangle Displaced You can change the star pattern to another design of your choice in:

Strength → Top/Bottom shells → Top surface pattern / Bottom surface pattern

0.16mm layer, 2 walls, 15% infill The E27 adapter didn’t work with the light bulb adapter I bought. I modified the file and included this new print profile along with the corresponding files, which will cover the light bulb adapter and ensure it stays firmly attached to the tripod.

Here’s the purchase link for the cable I used for this setup: https://es.aliexpress.com/item/1005007412684814.html

0.16mm layer, 2 walls, 0% infill
