1:28 Scale Tire Tape Tool for Mini Z RC

Boost Me A boost will greatly encourage me to innovate! Check out my other models too! V3 Update: Improved design

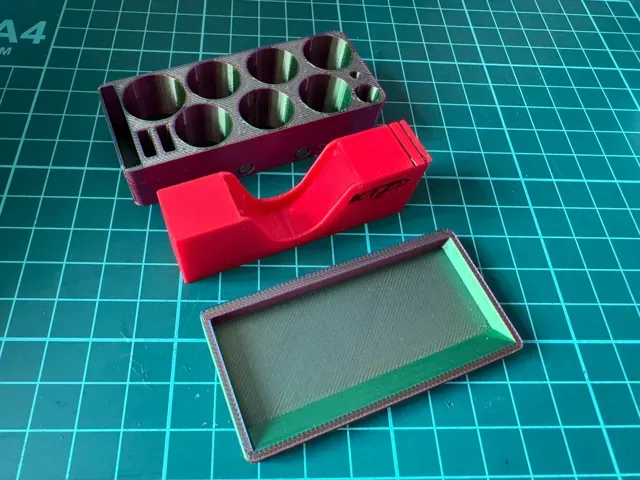

- Changed the orientation of the print, enhancing strength - Increased the length slightly more for Reflex, Nexx and RTRC rims. - Place Edge to Edge for 20mm Diameter Rims. - Place Edge to notch for 19mm Diameter Rims. - Able to fit in my Multi Functional Wheel Case.

V2 Update: All new design for the  Tape Tool!

- Added cutting edge for 19mm diameter rims - Added 4mm diameter x 2mm height slots for magnets and can be used with my Multi Tool Stand - Integrate both 8.5mm and 11mm wheel width - Narrow the cutting edge - Removed the Mounting tool Jig - Instructions to use the V2 Tire Tape Tool! - Will retain V1 and will update print profiles to indicate versions Instructions to use:

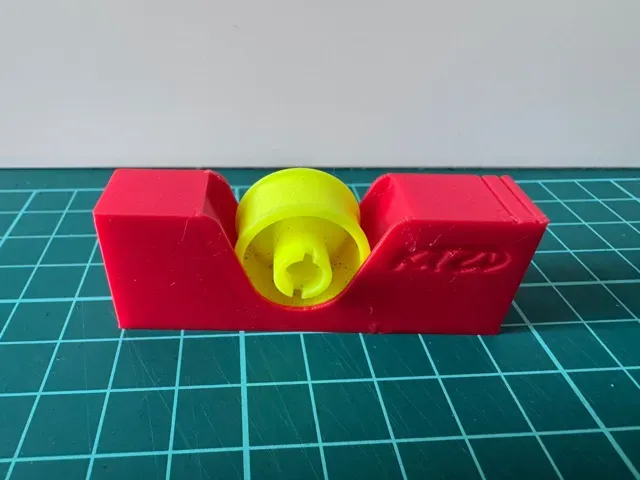

- First Place the rim you want to apply tape in the slot

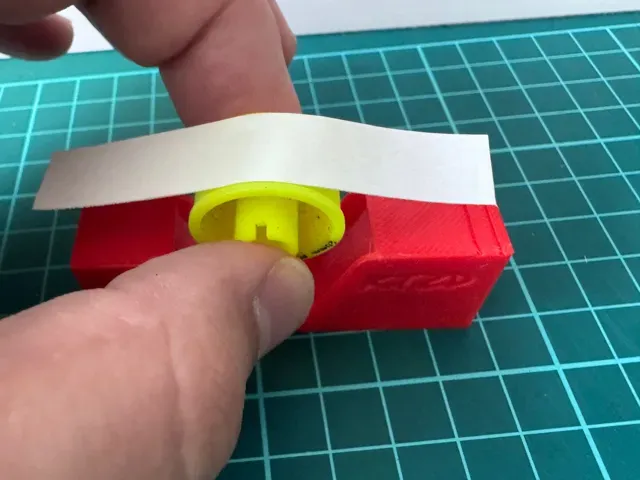

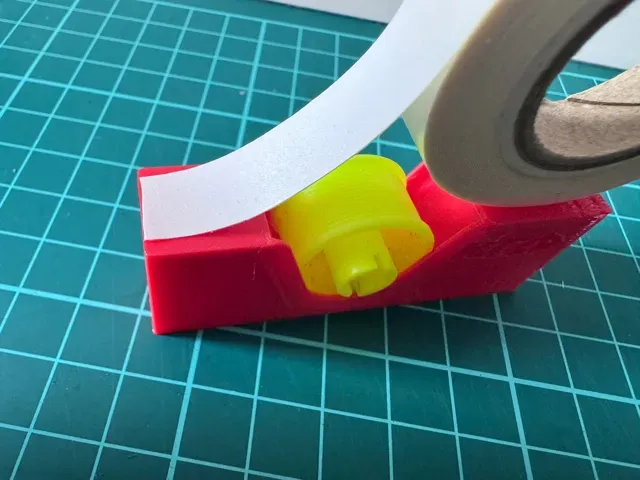

- Align the tire tape to the non-cutting edge of the tool

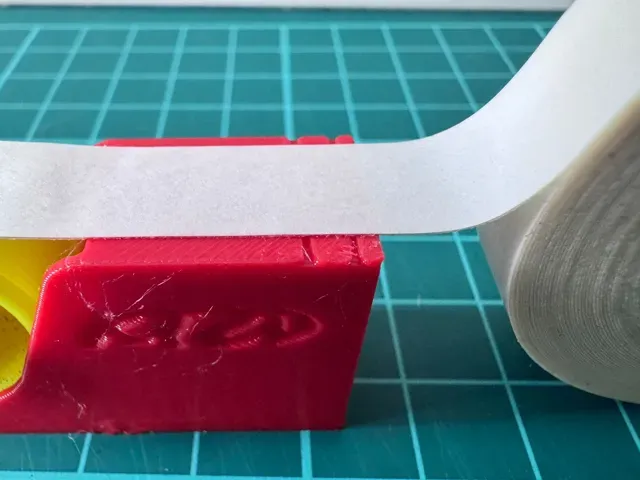

- Pull the tire tape along making sure to align as straight as possible to the other edge

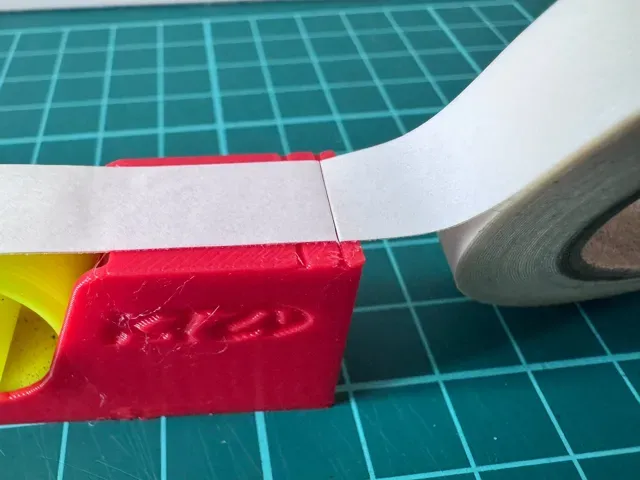

- Using a penknife or hobby knife cut along the cutting edge (take note of the diameter you want)

- Pull up the rim from the tool and ensure the tape initial alignment is accurate

- Apply the tire tape to the rim

- Enjoy

V1 Tire Tape Tool (Legacy):

Tire Tape cutting and mounting tool for 1:28 scale Mini Z RC.

Narrow side for narrow 8.5mm wheel width

Wider side for wide 11mm wheel width

Tire tape recommended R246 narrow and wide tire tape

however you can choose your own double-sided tape, place it flush to both edges and cut accordingly. Will not fit as precisely as the tire tape from R246

Align the edge of the tool and cut along the recess notch with a hobby knife or to mark the cutting line

Includes a hole to store the tire mounting tool as well as a cut out to put the wheel taped for mounting (it can fit up to +3 offset)

Any feedbacks are greatly appreciated and thanks in advance!
