Makita & Milwaukee Router Plate & Fence

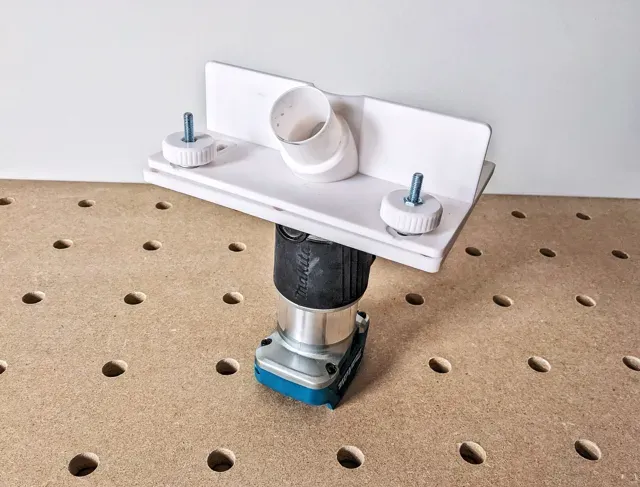

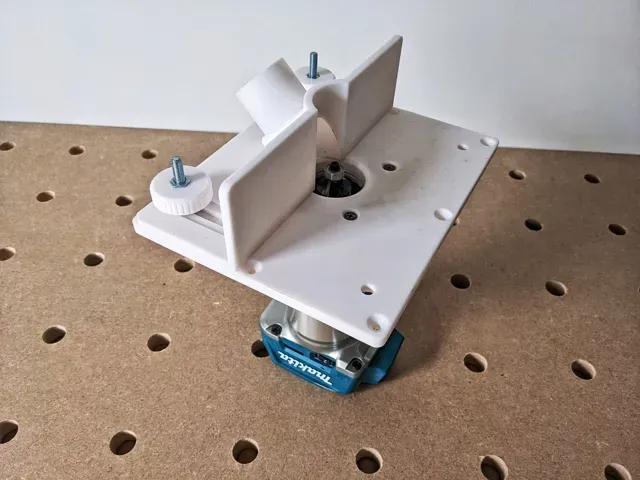

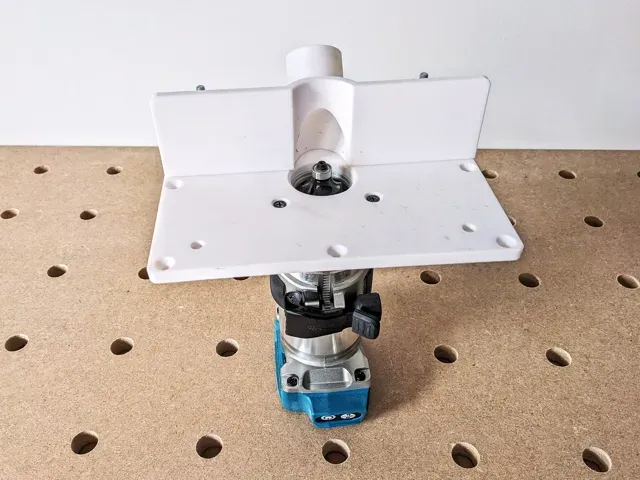

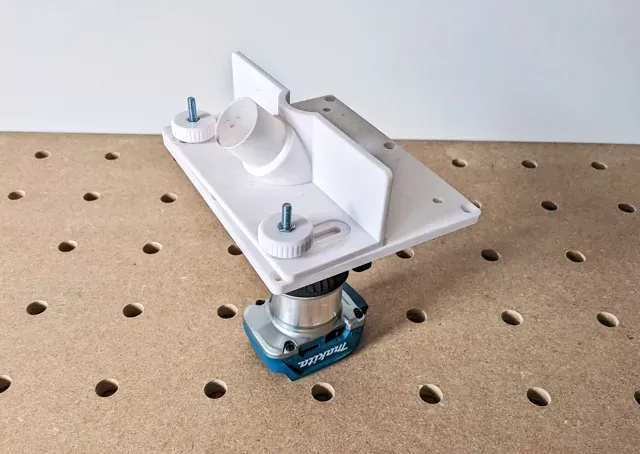

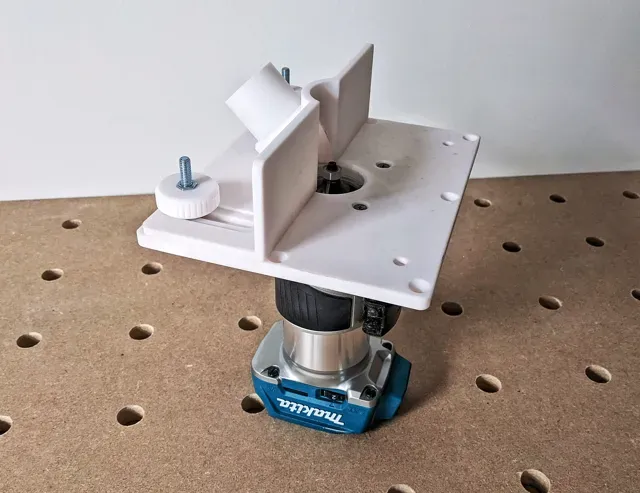

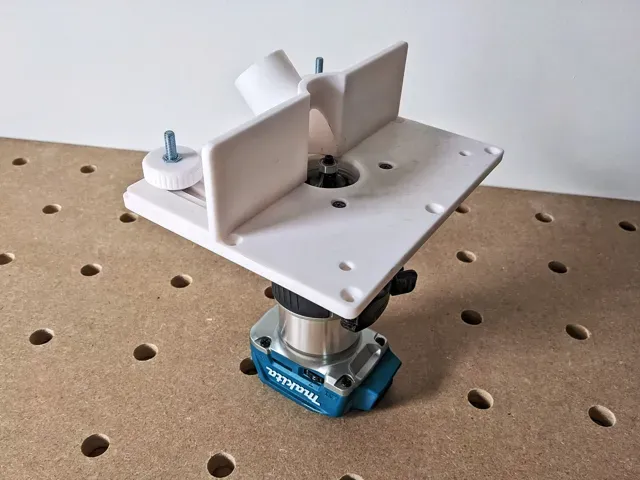

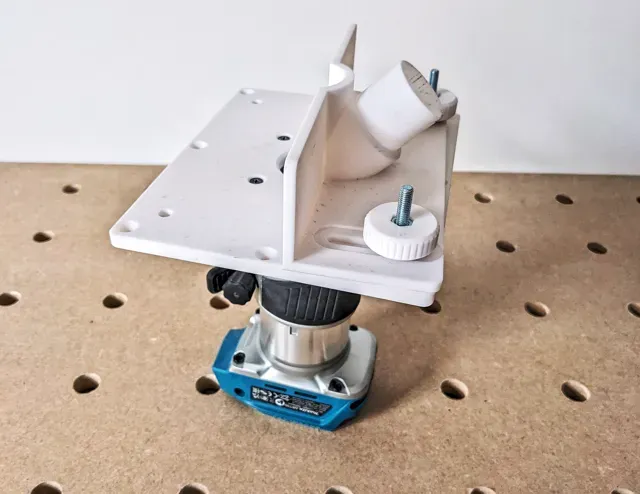

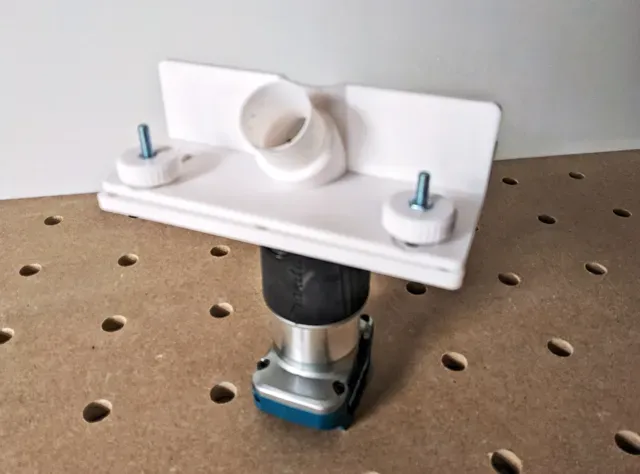

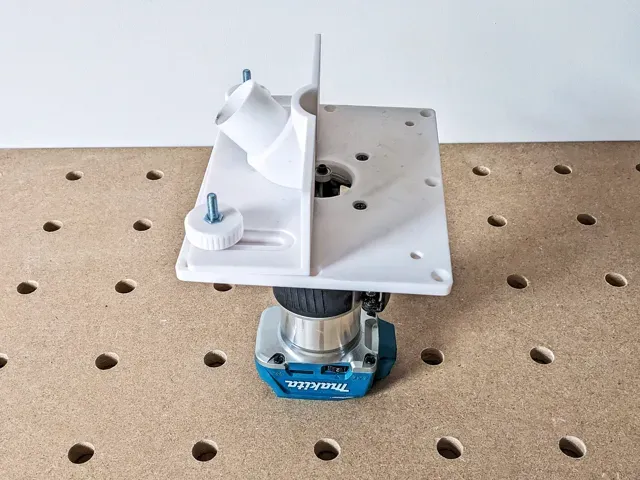

Drop-in router plate and adjustable fence for Makita RT0700, RT0702, DRT50 and Milwaukee M18 Fuel Compact Router (2723-20) . Mounts flush into a workbench or side-mounts with a frame, includes a 35mm dust port and fine-positioning fence.

Key Features

✔ Universal Mounting Options – Can be flush-mounted into a workbench or side-mounted with a frame for flexible installation. ✔ Adjustable Fence with Dust Port – Features fine-positioning adjustment and a 35mm dust port for effective chip collection. ✔ Compatible with Makita DRT50, RT0700, RT0702 and Milwaukee M18 Fuel Compact Router (2723-20). ✔ Sturdy & Secure – Fence attaches using two M6 nuts and two M6x30mm+ screws (hardware not included).

✓ Four fence options – 200 mm and 320 mm, each in standard and reinforced (20 mm deeper) version. 320 mm fences print diagonally on P1/X1 build plates. Fence Standard: 200 mm

Looking for a plate for a different router? Check out the full family

Model Router

Makita & Milwaukee Router Plate & Fence Makita & Milwaukee

DeWalt Router Table Insert Plate & Fence DeWalt

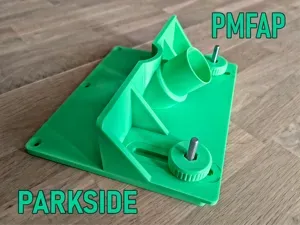

Parkside PMFAP Router Plate & Adjustable Fence Parkside

Makita Router Plate – Katsu-Style Milling Sole Makita

Makita Router Table Insert – Dual Size Makita

Ryobi Router Table Insert Plate & Fence Ryobi

⚠ Important Printing Note

Due to the large surface area of these parts, proper bed adhesion is critical for successful prints. Ensure your print bed is clean, level, and properly prepared to avoid warping or deformation.

Dimensions

- Insert Plate: 200x160x8mm - Dust Port Inner Diameter: 35mm - Fence Standard: 200 mm - Fence Extended: 320 mm - Reinforced versions: 20 mm deeper than standard

Dust extraction accessories - click to open model page

If you print it, please leave a rating - it helps a lot. Check out my other workshop models in the Ikea Skadis collection .

Updates

Update 14/09/2026 : Added two 320 mm extended fence variants (standard and reinforced). Printed diagonally on P1/X1 series build plates. Four fence options now available: 200 mm and 320 mm, each in standard and reinforced (20 mm deeper) version.

Update 26/01/2026 : Added a second fence model to both Makita & Milwaukee print profile, featuring reinforcements and a base that is 20 mm longer with extended adjustment slots. Added an alternative base plate with a smaller 20 mm opening. Thanks for the valuable feedback, @JJ-Fin.

Update 23/01/2026: Added a version for Milwaukee palm router users. A small test piece has been included on the last plate (≈1.45 g of filament), allowing you to verify the mounting hole fit on your router before printing the full set .
