Action Camera Helmet Mount FOX V

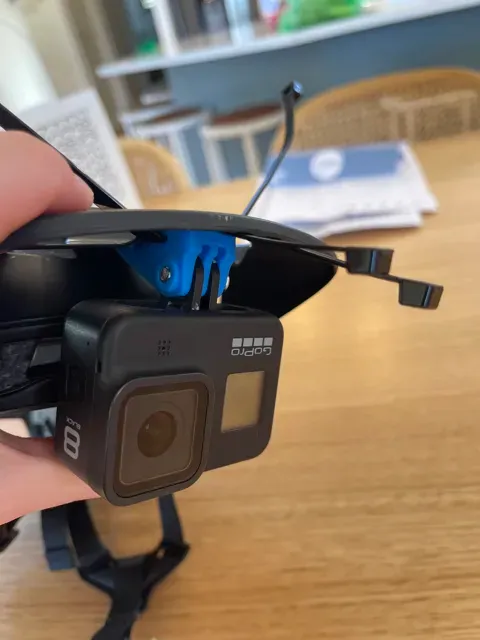

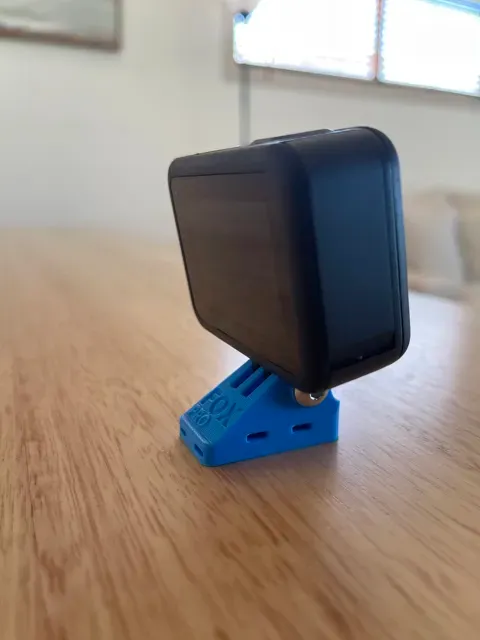

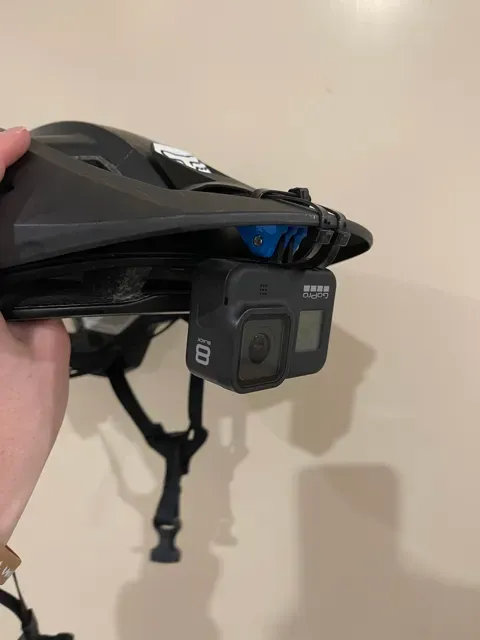

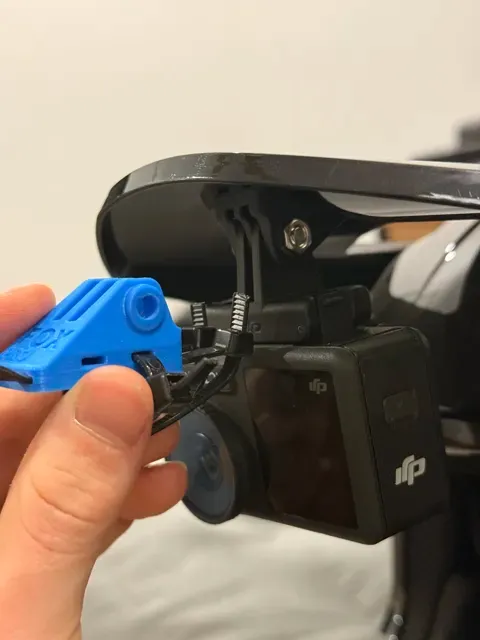

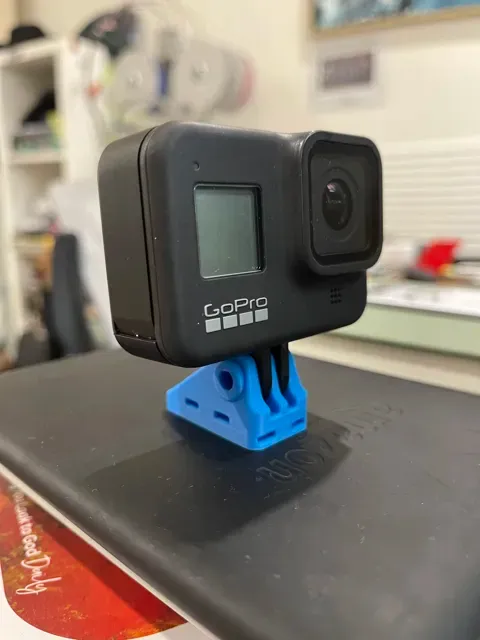

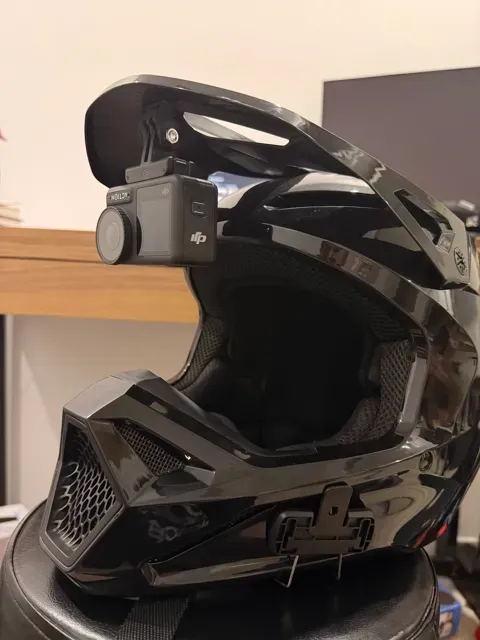

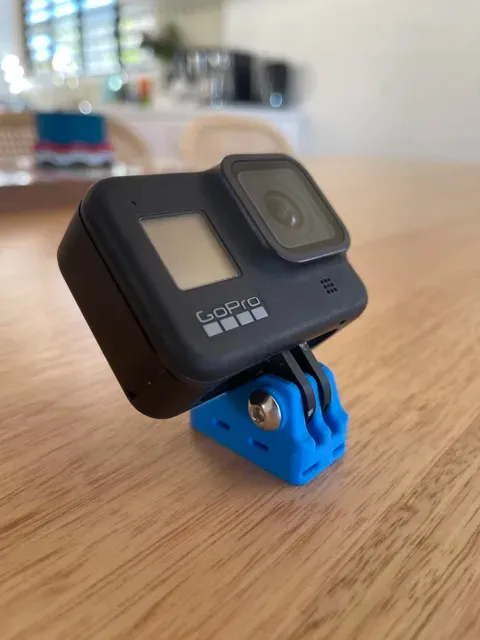

Version 2 action camera visor mount, it fits any gopro or dji, insta 360 action cam and uses zipties or straight 3M tape to connect to the visor of your helmet.

Version 2 adds a recessed hole for the nut allowing screw to tighten properly and fit oem gopro and dji attachment screw.

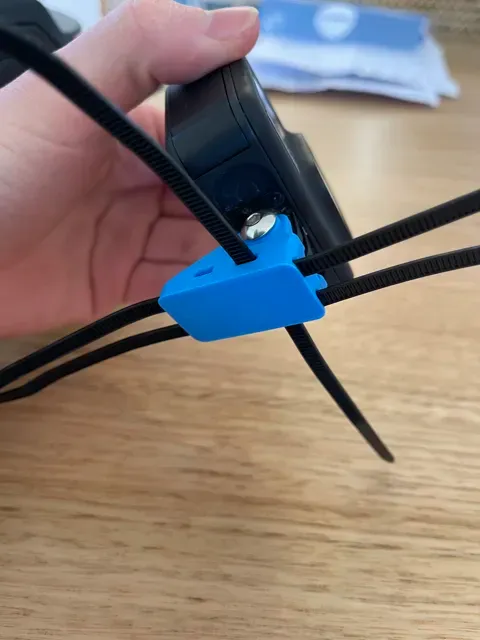

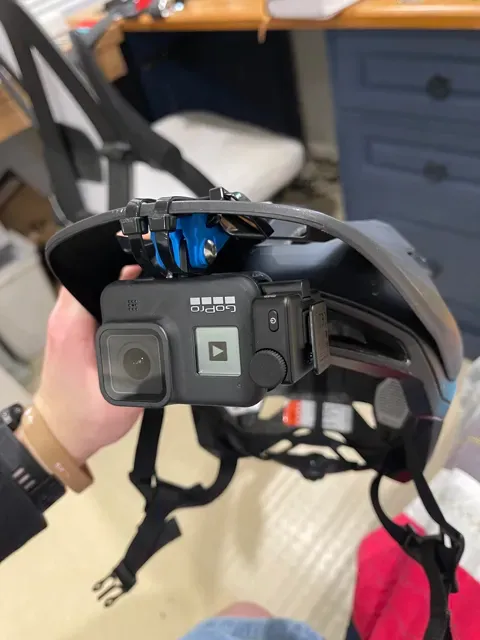

The parts needed are 3 zip ties to securely mount it in position or a tiny bit of 3M tape making it permanent. It will also require the nut and bolt that came with the camera or else use an M5 nut with a 20mm M5 Bolt.

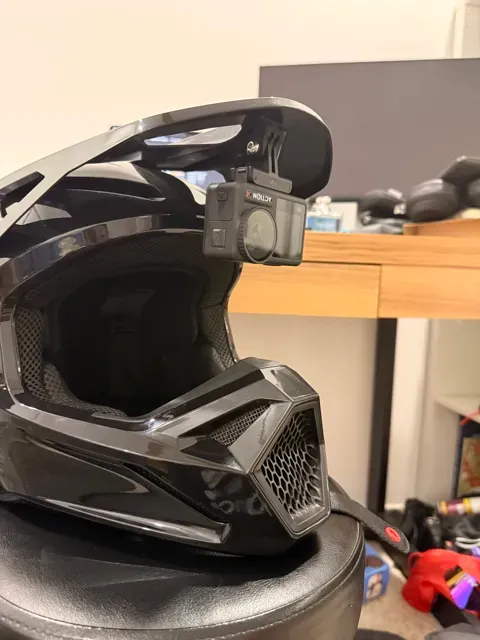

This design has two possible positions, just flip the mount around for it to be closer to your head or further away. Check the diagram below if you don't understand the zip tie holes.
