Initiative Tracker - Interchangeable Clips + Stand
Сведения о модели
- Площадка
MakerWorld
- Цена
- Бесплатно
- Лицензия
- PRIVATE-USE
- Только для личного использования: печатать для себя, без продажи и распространения.
- Форматы
- STL
- 67 Лайки
- 105 Загрузки
- 62 Напечатали
- 212 В подборках
- 3 Бусты
- 2 Комментарии
- 0 Просмотры
Описание

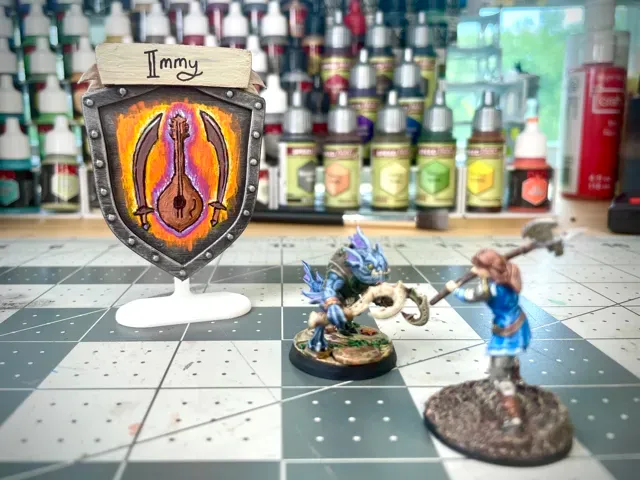

Track initiative in style for your TTRPGs with these customizable bannered shields!

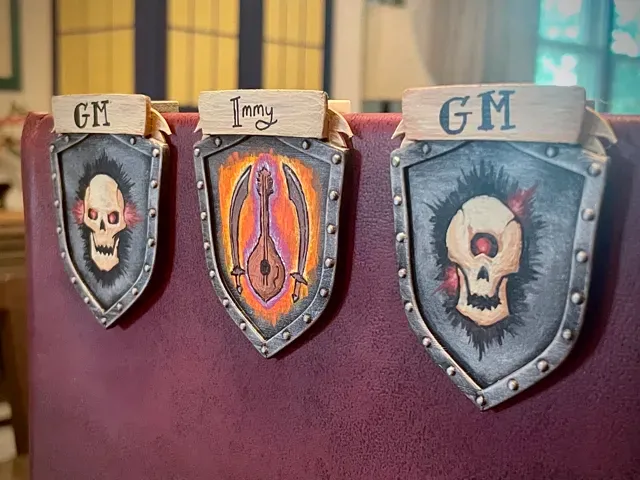

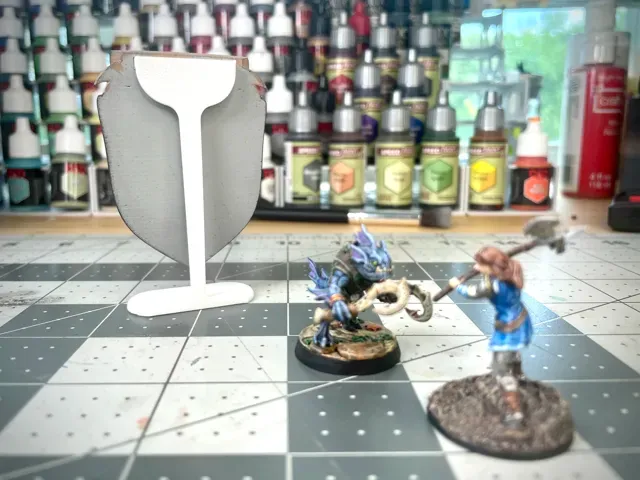

Printing has been optimized to reduce print lines from making it hard to paint on your awesome designs for each character or GM token. Choose from 5 different sized clips to sit on your GM screen, or use the stand option for game masters who like to roll out in the open. Either way, remember to write the token's name on the GM side too! Or if you want to go the extra mile for visibility, grab a duplicate mini for your characters to stick on top and save the back side of the token clip for a scrap of paper to glue on for each character's armor class or passive perception.

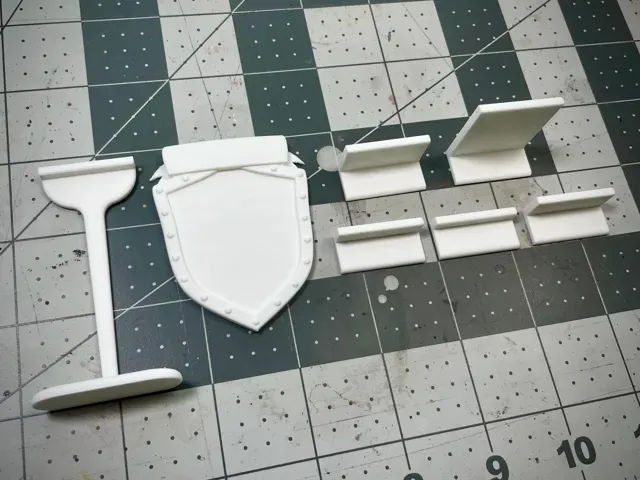

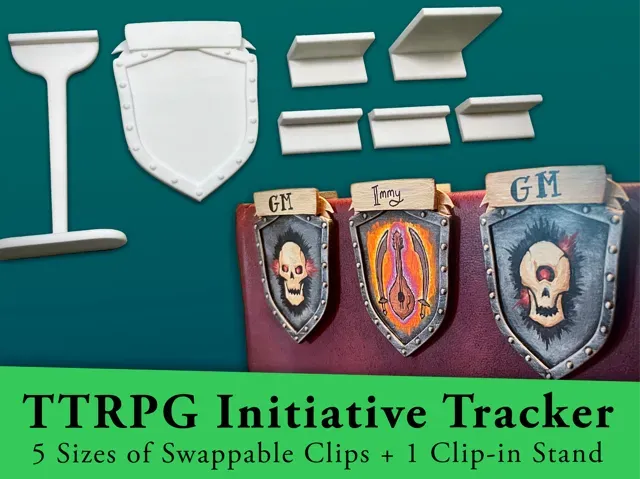

Models are separated by labelled plate for easy identification and printing of the parts you need:
- Shield - 1mm Clip - For thin card GM screens - 3mm Clip - For the standard D&D DM screen - 6mm Clip - 10mm Clip - The average thickness of custom wood GM screens - 25mm (1in) Clip - For beefy GM screens, such as ones with embedded monitors - Stand
Boost Me If you're liking my work a boost would be incredibly appreciated and help go towards testing of future designs and machine maintenance.
NOTES:
- Print orientation: The shield is designed to be printed vertically on its ‘head’ - There are subtle curves that would not be suited to printing flat on its back. - Adding Text or SVG images: I recommend ‘adding’ material on the banner section instead of ‘subtracting’, otherwise you will cut into the slot for the clip. - Z-Seam: If creating your own profile, take special note of where the Z-seam is. Certain versions of BambuStudio seem to have a hard time optimally placing seams on this model, even with seam painting. - Filament profile is tuned for my machine, results on your machine may vary.
Руководства и профили печати
Профили печати и шаги
0.12mm layer, 2 walls, 7% infill, Arachne Walls Plates are labelled by their corresponding part.
- Print speed has been reduced to 50mm/s for outer walls and 110mm/s for inner walls to increase print quality. - Supports are only needed for the Shield. - Infill Combination is on to recover some print time.
