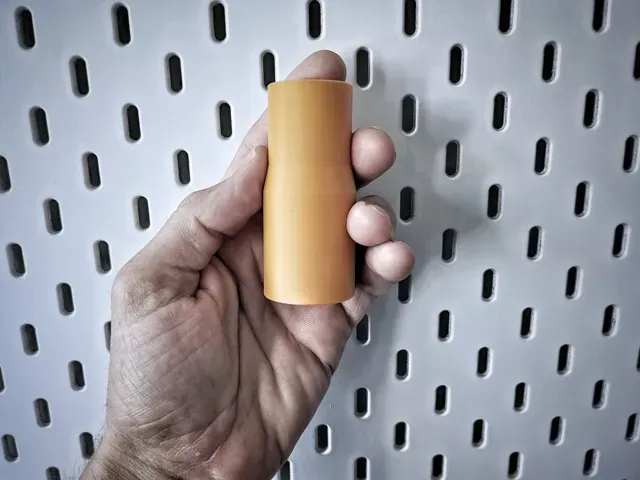

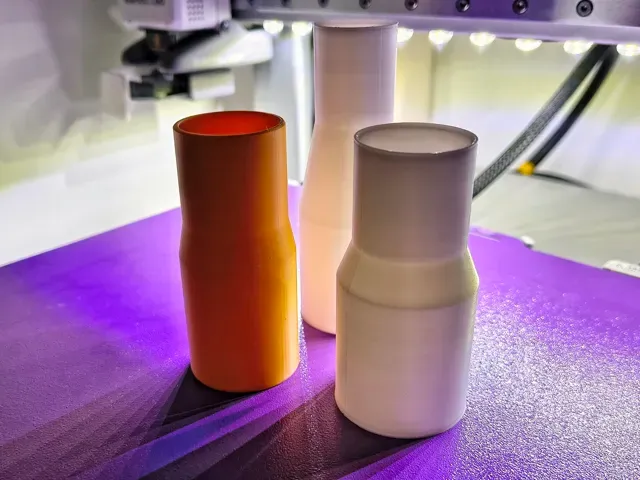

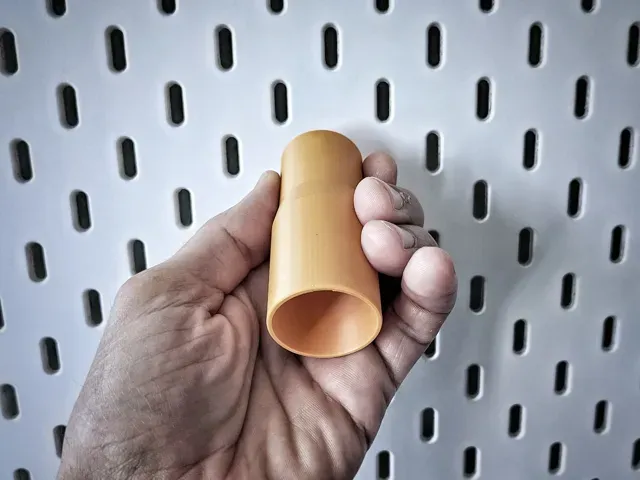

Parametric Vacuum Adapter Generator

A fully parametric vacuum adapter generator. Whether you're connecting different hose diameters or custom tools, this model lets you generate an adapter that perfectly matches your setup. Works with tools from any brand: Makita, DeWalt, Milwaukee, Ryobi, Karcher, Stanley, Bosch and more.

Available Parameters:

- wall_thickness – Thickness of the adapter walls. This affects the outer diameter of both ports. Formula:

- Top outer diameter = top_inner_diam + (2 × wall_thickness) - Bottom outer diameter = bottom_inner_diam + (2 × wall_thickness) Example: - wall_thickness = 1.5 mm, top_inner_diam = 30 mm → Top outer diameter = 33 mm

- top_inner_diam – Inner diameter of the top port - bottom_inner_diam – Inner diameter of the bottom port - top_part_len – Length of the top section - connector_length – Length of the connector between top and bottom sections - bottom_part_len – Length of the bottom section

More Skadis models: IKEA Skadis collection

If you print it, please leave a rating - it helps a lot.
