PCO1881 Soda Bottle Thread + Fusion Profile

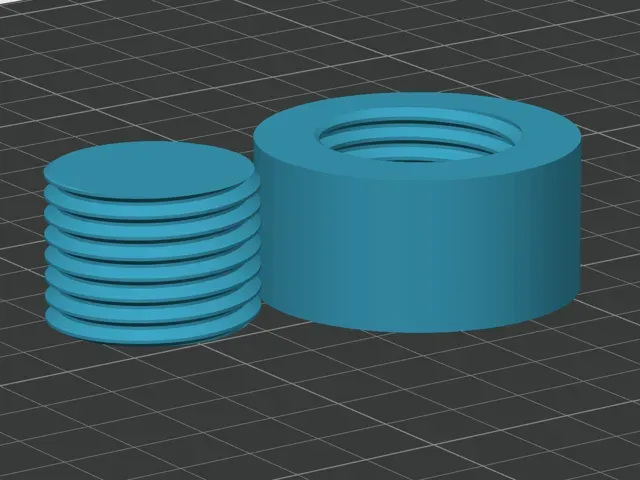

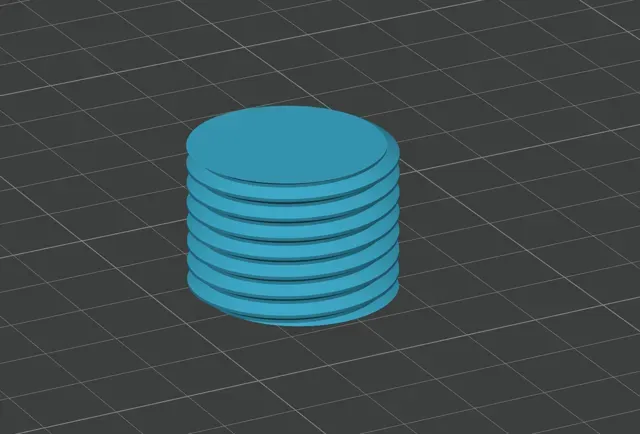

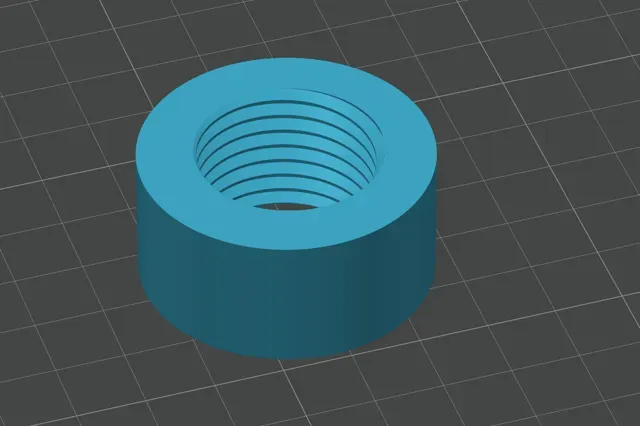

This upload includes a model of the PCO1881 soda bottle thread and a custom thread profile .xml file for use in Fusion 360.

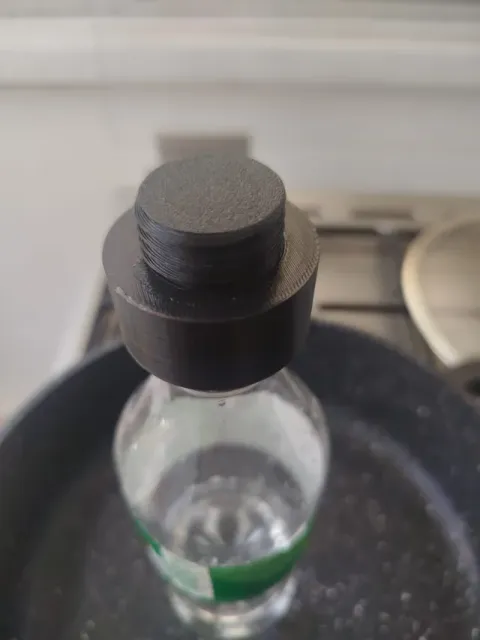

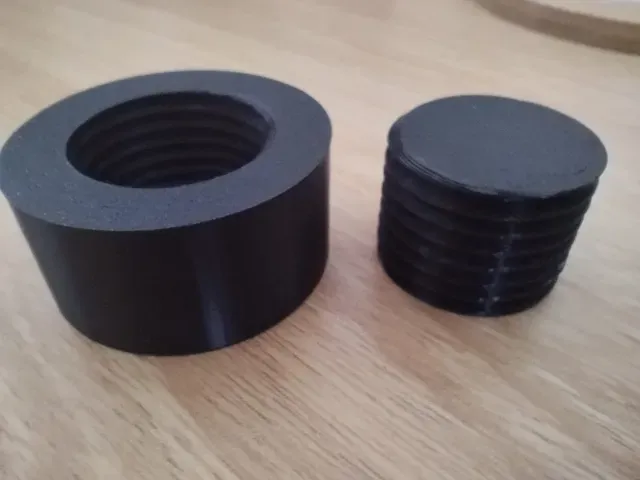

Perfect for designing custom bottle caps or testing thread fit in your projects.

💡 To use custom threads in Fusion 360: Follow Autodesk’s guide: https://www.autodesk.com/support/technical/article/caas/sfdcarticles/sfdcarticles/Custom-Threads-in-Fusion-360.html

📐 Thread specs source (ISBT): https://www.isbt.com/resources/isbt-threadspecs Direct PDF: https://cdn.prod.website-files.com/646b9f8f61d2f66e1f5d5e20/65131b77ef381c1c6e2c0daa_3784253-21.pdf

📁 Copy.xml file from the zip folder to: C:\Users\%USERPROFILE%\AppData\Local\Autodesk\webdeploy\production\FUSION_VERSION\Fusion\Server\Fusion\Configuration\ThreadData

[Change the %USERPROFILE% and FUSION_VERSION as needed]

⚠ If folders don’t exist, enable hidden folders. ⚠ After a Fusion update, copy the file manually again if it doesn’t transfer automatically.
