Автор:Mikael SWE

Опубликована

Описание

Dont miss the optional new lid with the Food Left indicator in the separate profile.

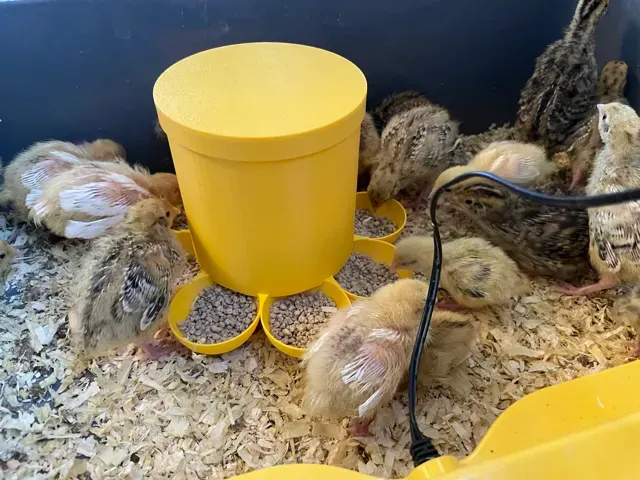

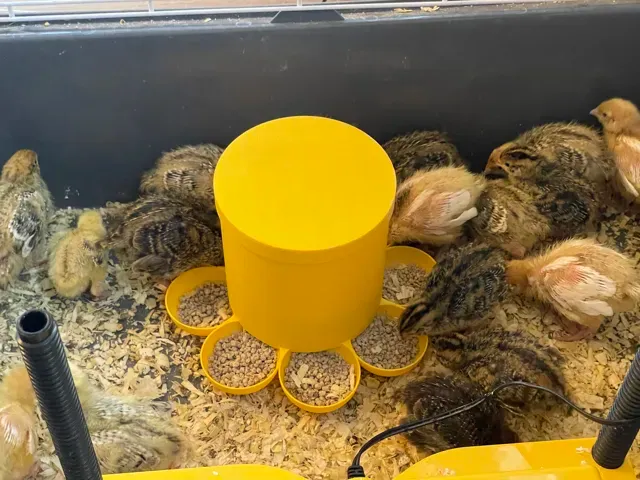

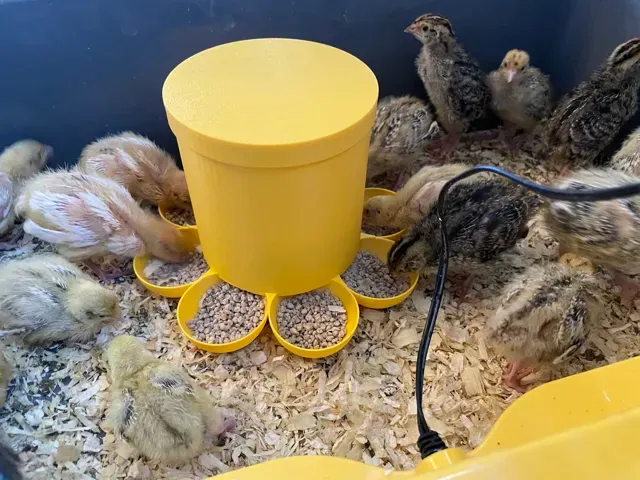

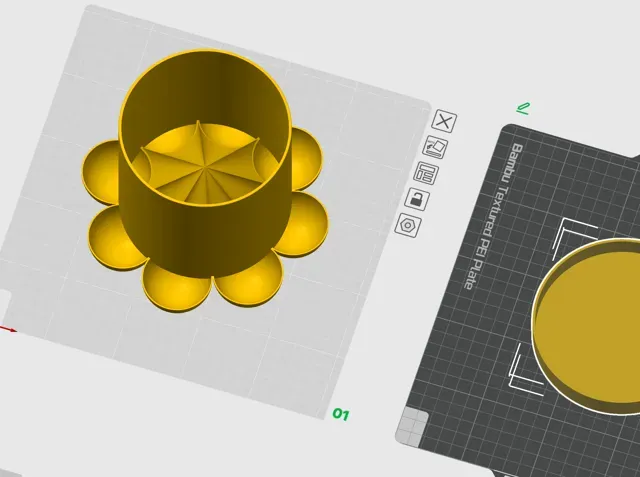

Version 2 of A great 8 station chicken or quail chick feeder. It has a coned inside so the food will distribute evenly in the 8 feeding stations. Great when you have hatched new chickens och quails. Even the smallest chicks will reach the food. The design with individual food bowls makes it very sturdy and stabile. The food has to be dry and if you are feeding them pellets they cant be to large. My other feeder can handle a bit larger pieces.

This version has an improved pellet distribution system with a new internal slide that makes slightly larger pellets possible to distribute evenly in all 8 food bowls.

The lid with the food left indicator is in the separate Print profile.

But when hatching quails my wife usually run the pellets in the blender before giving it to the chicks.

A smaller 5 station version is also available on my site. Check it out.

https://makerworld.com/sv/models/1655237-5-station-quail-chicken-feeder#profileId-1750497

With optional food left indicator

Руководства и профили печати

Профили печати и шаги

Improved version 2. More effective food distribution Support is needed, but only 6 grams or so. Improved food distribution to the bowls. Can handle a bit larger pellets and has a better slide system internally.

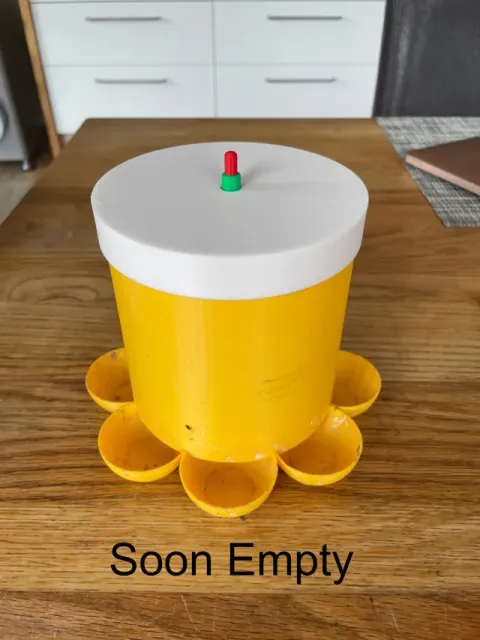

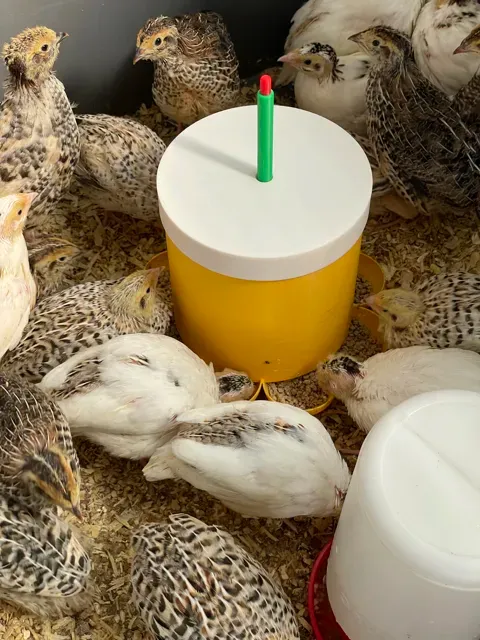

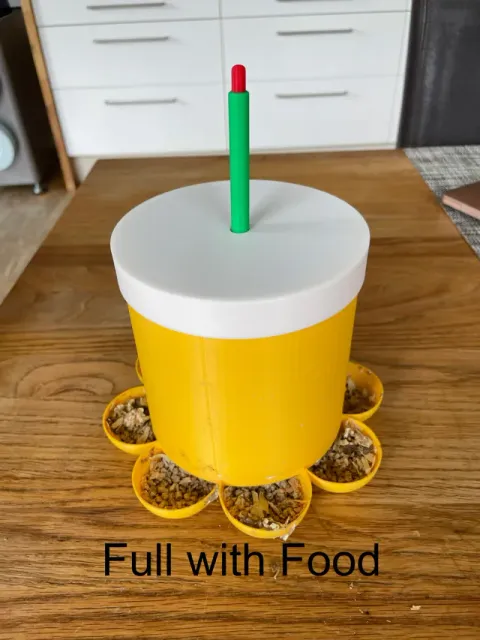

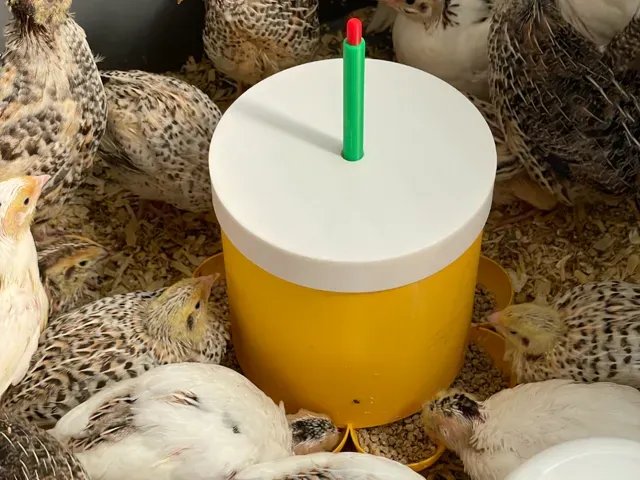

Extra lid with Food left indicator This extra lid has a food left indicator. This makes it easy for you to see when its time to refill the container.

0.2mm layer, 4 walls, 15% infill Used ABS GF (Bambu) for lid and body.

Body was: 339.71 grams (4 layer walls, .2mm layer height) supports needed for underside, and the straight spots over each cup.

Pointed Top (My Design) was: 128.72 grams (4 layer walls, .2mm layer height) Print with brim, no supports needed.
