Описание

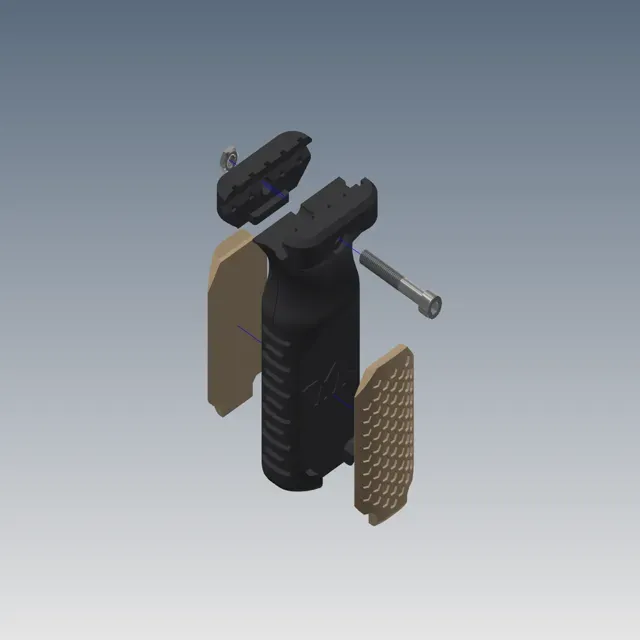

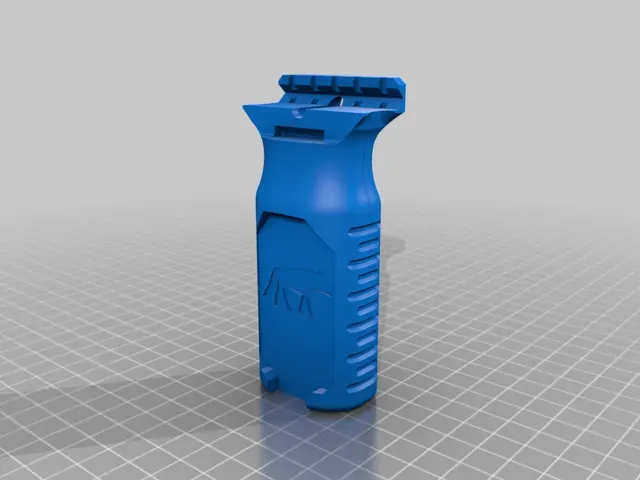

The Shade Foregrip is a vertical foregrip designed for Nerf and Airsoft. This grip can be attached to Picatinny-Rails aswell as Nerf-Rails without any modification or adapter. Notches in the top allow the grip to be locked in different positions on the Nerf-Rail. The grip is secured by a ~35mm long M5 bolt and hex nut.

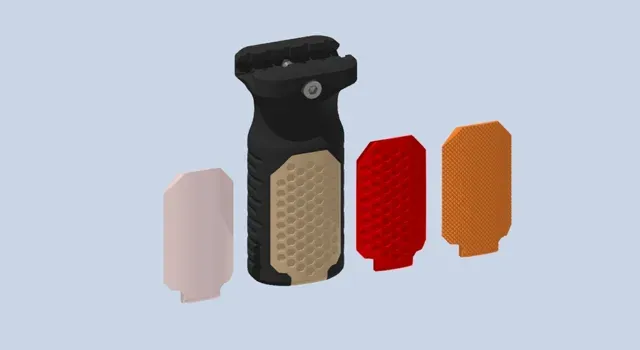

The side panels are seperate pieces. This way you can easily customize the style of the grip and print the panels in different colours. The panels simply snap in. Just push them in top first.

I've released different stylings of the side panels, however I've also published the STEP files so anyone's free to make custom designs.

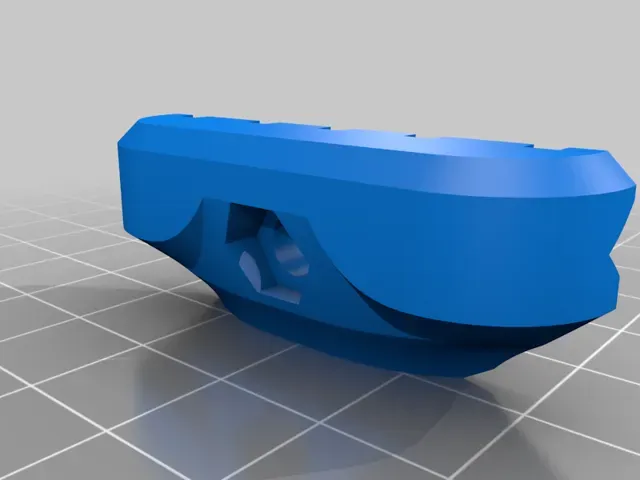

Update June 2nd 2021: Slightly moved in the contact face of the bracket to increase the gap between bracket and body. This should give a tighter grip on off-spec rails like the ones on the Gryphon or the Lynx. Bracket stl. and .step have been updated. Rest is unchanged.

Print Settings

Supports:

No

Infill:

100%

Category: Toy & Game Accessories

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 2 walls, 15% infill Downloaded the Designer model and made a print profile. The profile inludes the grip made from PLA. The grip orientation may seem random but is done like that on purpose to prevent breaking at layer lines under use (nerf springer). The grip insides were printed in TPU, feel free to change them into PLA aswell. its recommended to do a test print for your TPU before or even use a specialiced TPU print profile acc. to your printer model. The last print plates contain an additional plug to add a picantinny rail on the bootom of the grip. That version needs to be used with the arger grip inlets to enable the screw hole.

Теги

nerfairsoftpicatinnytacticalthingiverseforegrip
