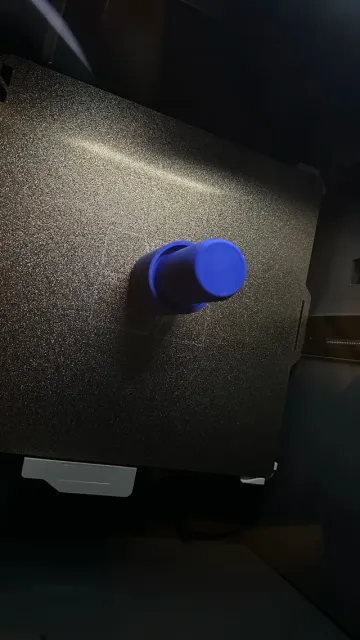

Bicycle Front Fork Dust Seal Tool — Фото 3 из 8
Bicycle Front Fork Dust Seal Tool — Фото 4 из 8
Bicycle Front Fork Dust Seal Tool — Фото 5 из 8
Bicycle Front Fork Dust Seal Tool — Фото 6 из 8

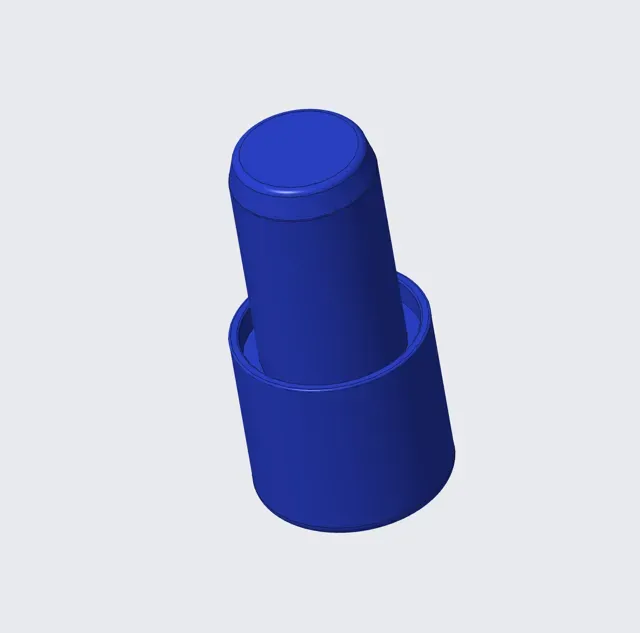

Bicycle Front Fork Dust Seal Tool — Фото 7 из 8
Bicycle Front Fork Dust Seal Tool — Фото 8 из 8
3D-модель · MakerWorld

Bicycle Front Fork Dust Seal Tool

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
STL3MF
  • 39 Лайки
  • 123 Загрузки
  • 89 Напечатали
  • 94 В подборках
  • 0 Бусты
  • 11 Комментарии
  • 0 Просмотры

Автор:Tomeszkomesz

Опубликована

Скачать на MakerWorld

Описание

This is a custom-designed driver tool for installing dust wiper seals on bicycle suspension forks with 36mm stanchions(e.g., Fox 36, RockShox Lyrik, Zeb, Ohlins). It replaces expensive factory tools and ensures the seal is driven in evenly without damaging the delicate rubber lips or the fork lowers during maintenance.

Key Features:

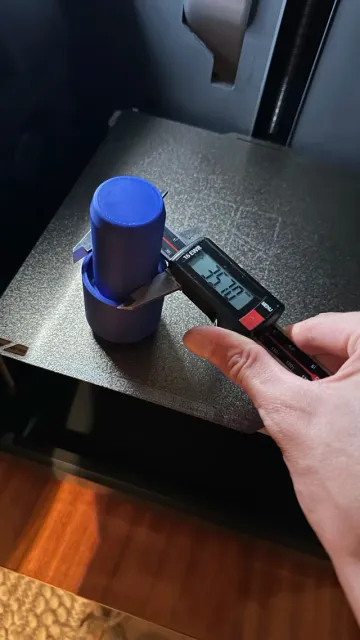

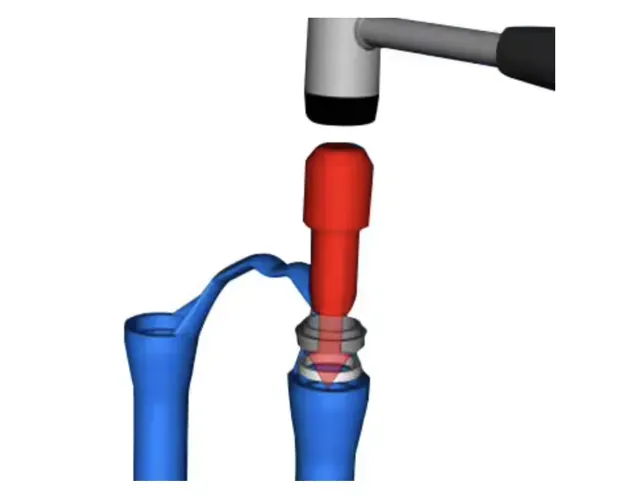

- Safe Installation: The tool is designed to apply force only to the rigid outer rim of the seal, preventing deformation or damage to the internal spring and wiper lip. - Precision Fit: With an inner diameter designed to clear the stanchion guide (approx. 35.70mm as shown), it centers the seal perfectly for a straight installation every time. - Heavy Duty Design: Engineered for impact. The print profile is optimized with extra wall loops to withstand the force of a rubber mallet. - Simple to Use: Just slide the seal onto the fork leg, place the tool over it, and tap it into place using a rubber hammer until the seal sits flush. The model is licensed By: rawhoney

Руководства и профили печати

Профили печати и шаги

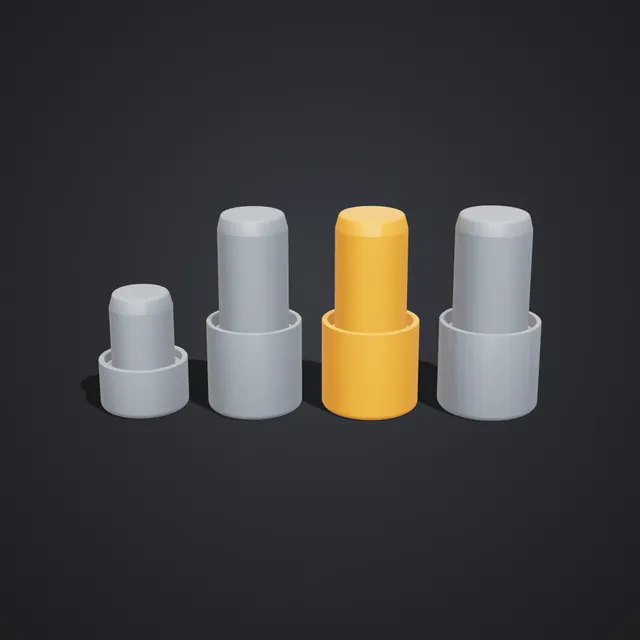

36 mm DIA 0.2mm layer, 5 walls, PLA - Easy print: No special skills required. - No supports needed: The design is self-supporting. - Optimized for strength: Configured with 5 wall loops to withstand hammer impact. - Layer Height: 0.2 mm for a good balance of speed and detail. - Material: PLA is tough enough, but PETG, ASA, or ABS are recommended for higher impact resistance and longevity. - Print Time: Approx. 1h 51m.

35 mm DIA 0.2mm layer, 5 walls, PLA - Easy print: No special skills required. - No supports needed: The design is self-supporting. - Optimized for strength: Configured with 5 wall loops to withstand hammer impact. - Layer Height: 0.2 mm for a good balance of speed and detail. - Material: PLA is tough enough, but PETG, ASA, or ABS are recommended for higher impact resistance and longevity. - Print Time: Approx. 2h 9m.

38 mm DIA 0.2mm layer, 5 walls, PLA - Easy print: No special skills required. - No supports needed: The design is self-supporting. - Optimized for strength: Configured with 5 wall loops to withstand hammer impact. - Layer Height: 0.2 mm for a good balance of speed and detail. - Material: PLA is tough enough, but PETG, ASA, or ABS are recommended for higher impact resistance and longevity.

32 mm DIA 0.2mm layer, 5 walls, PLA - Easy print: No special skills required. - No supports needed: The design is self-supporting. - Optimized for strength: Configured with 5 wall loops to withstand hammer impact. - Layer Height: 0.2 mm for a good balance of speed and detail. - Material: PLA is tough enough, but PETG, ASA, or ABS are recommended for higher impact resistance and longevity.
