Modular Key AirTag ScrewDriver Bit Holder EDC

Modular Key Cover — AirTag + 1/4" Bit Holder (Magnetic, Snap-Together)

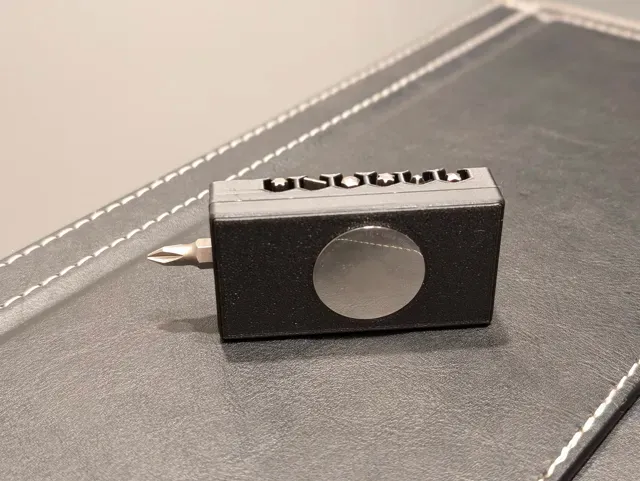

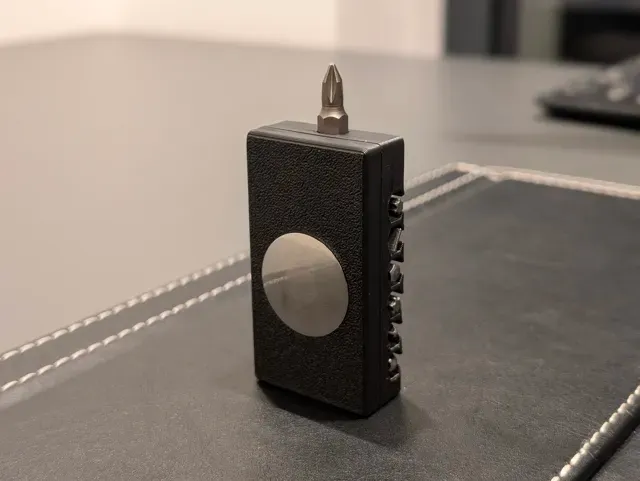

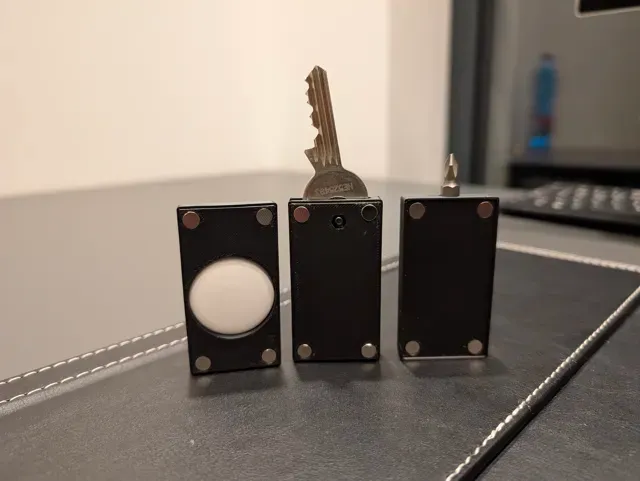

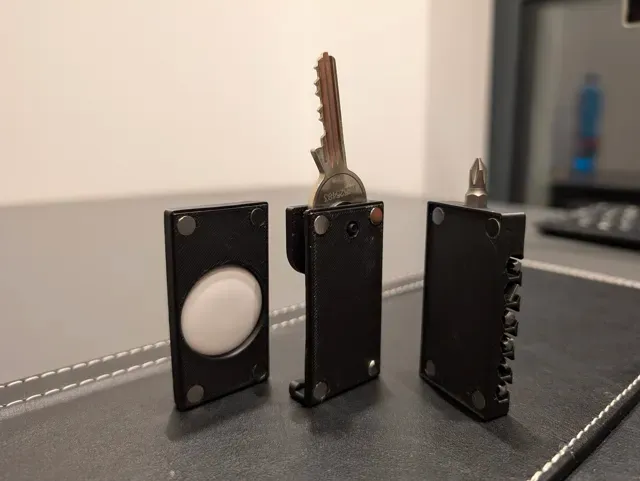

Turn your everyday key into a modular EDC. This design lets you mix and match compact modules that snap together securely: a key cover , a screwdriver handle with magnetic 1/4" bit storage , and an AirTag holder for easy tracking.

Requires: - 19 Magnets Ø6×2 mm round neodymium!!! - One (1) M3 Screw and One (1) M3 Nut !!!

What it is

- Modular system: Combine only what you need today (Key cover only / Key + screwdriver and 7 bit's / AirTag + Screwdriver). - Snap-together with magnets: Modules click together firmly beseeches of integrated 6x2 magnets and separate when you want to go lighter. - Built-in magnets: 6×2 mm round magnets keep the spare bit in place and assist module alignment. - Portable by design: Slim profile for pocket carry; no rattling. Modules

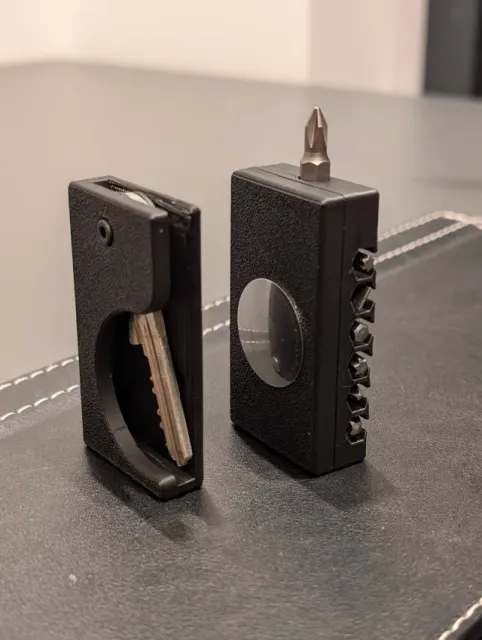

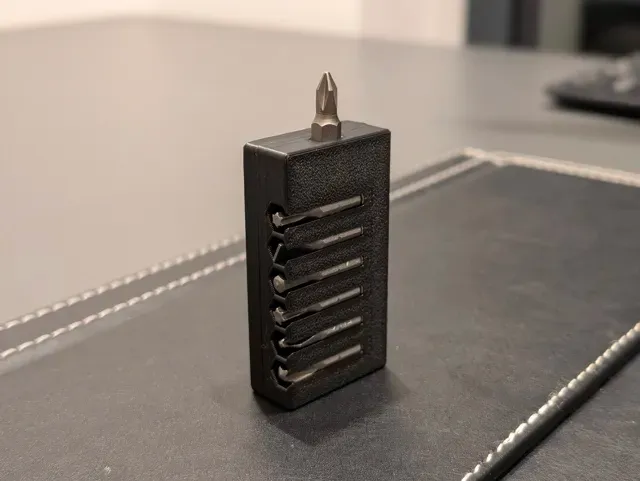

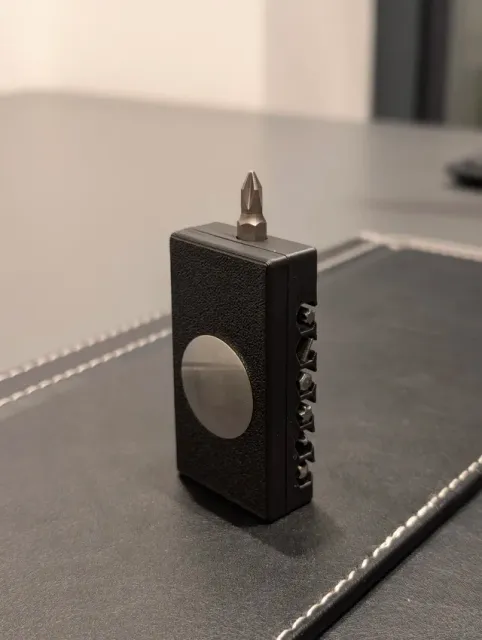

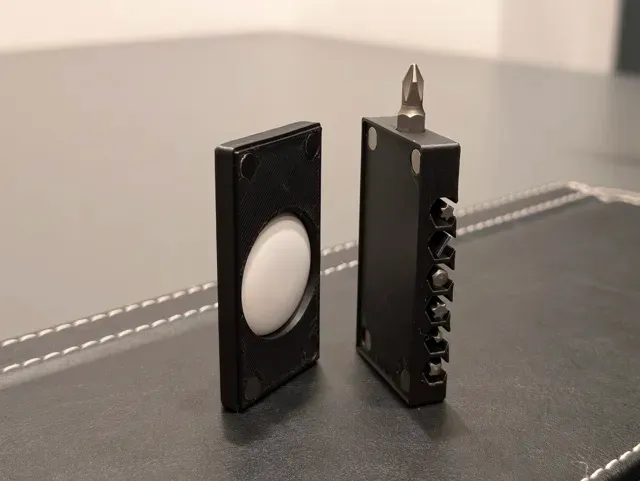

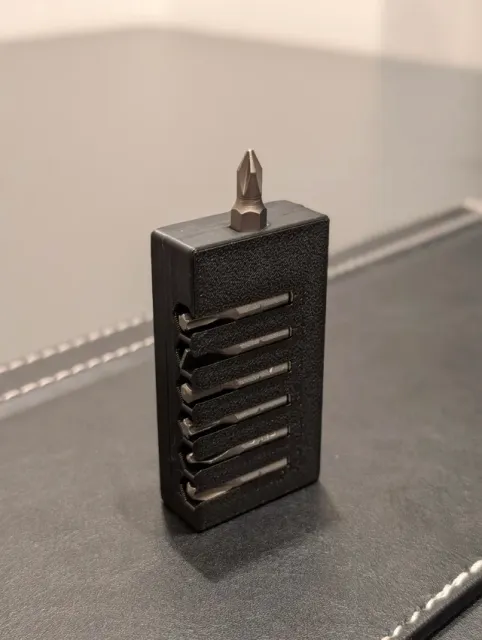

- Key Cover Module – Protects and adds grip to your metal key while keeping it compact. ( Requires 12mm M3 Screw and M3 Nut ) - Screwdriver Module – Works as a driver handle and stores up to 7 of  1/4" hex bit inside; magnet retention. - AirTag Module – Safely houses an Apple AirTag for quick tracking of your keys. Uses standard 1/4" (6.35 mm) hex bits and Ø6×2 mm neodymium magnets.

Print Recommendations

- Material: PLA or PETG (PLA = crisp fit; PETG = tougher) - Layer height: 0.20 mm - Walls: 3–4 perimeters - Infill: 30% (Gyroid/Cubic) - For stronger Scredriver - Use 8 Walls - Supports: Not required (orient flat sides on the build plate) - Orientation: Print each module with the flattest face down for best surface and dimensional accuracy. Assembly

- Dry-fit first. Ensure the key slides in and snaps as intended. Remove Supports and light post-processing if needed. - Magnets: Use Ø6×2 mm round neodymium (N35 or higher). Check polarity before gluing so modules attract, not repel. Magnet Placement for each module Highlighted in Blue on the image

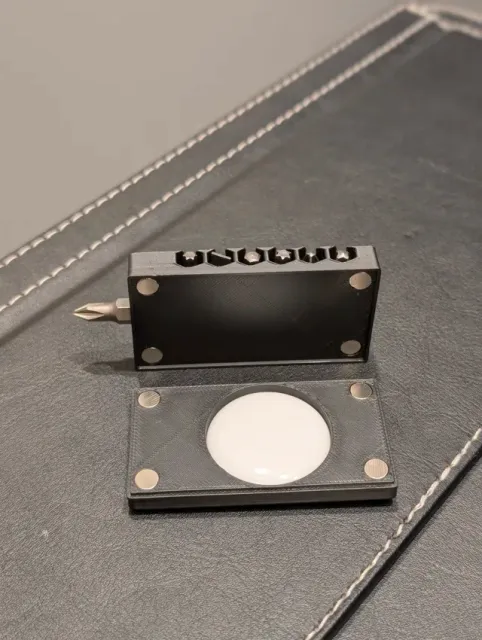

Bit Holder module Magnet Placement AirTag module Magnets Placement  Key cover module Magnets Placement

- M3 Screw 12mm and M3 Nut - Put key and PLA discs (2 small discs that a printed, they are required for smoother sliding of the key ) on each side of the key, slide then together into the cover and align all holes, push trough the M3 screw and tighten n on the other side with a M3 Nut.

M3 Screw Placement  M3 Nut Placement

- Adhesive: A tiny drop of gel CA (super glue) in each pocket. Seat the magnet flush; let cure fully. - Bit storage: Place your preferred 1/4" bit inside the driver module; the magnet will hold it in place. - Snap together the modules you want to carry. Done. Tip: Mark one magnet “+” and its mate “–” during assembly to keep polarity consistent across sets.

Notes

- Tolerances are tuned for standard 0.4 mm nozzles. If your fit is too tight/loose, scale ±1–2% or lightly sand contact edges. - Keep strong magnets away from pacemakers and small children (choking hazard). - AirTag is a trademark of Apple Inc. Parts and electronics shown are for demonstration only. Bill of Materials (BOM)

- Magnets: Ø6×2 mm round neodymium (quantity depends on configuration; typical set uses 4–8 ). - 1/4" hex bit(s): Any standard driver bit you like. - Adhesive: Gel CA or epoxy (optional but recommended for magnets).
