Flint2 Router Stand + Modem
Сведения о модели
- Площадка
MakerWorld
- Цена
- Бесплатно
- Лицензия
- CC-BY-NC-SA
- Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
- Форматы
- 3MFSTL
- 26 Лайки
- 80 Загрузки
- 38 Напечатали
- 73 В подборках
- 3 Бусты
- 0 Комментарии
- 0 Просмотры
Описание

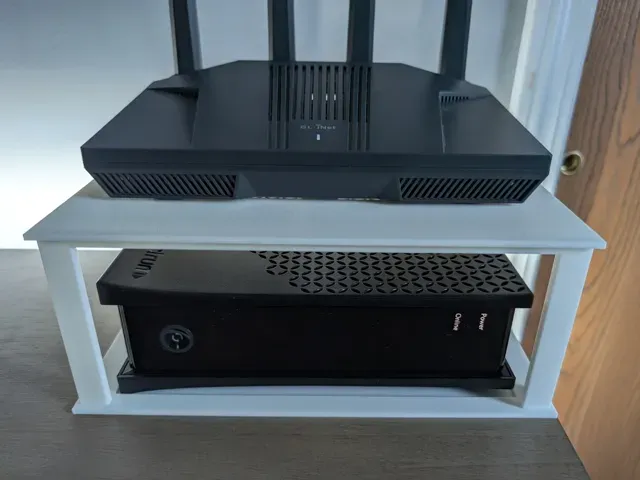

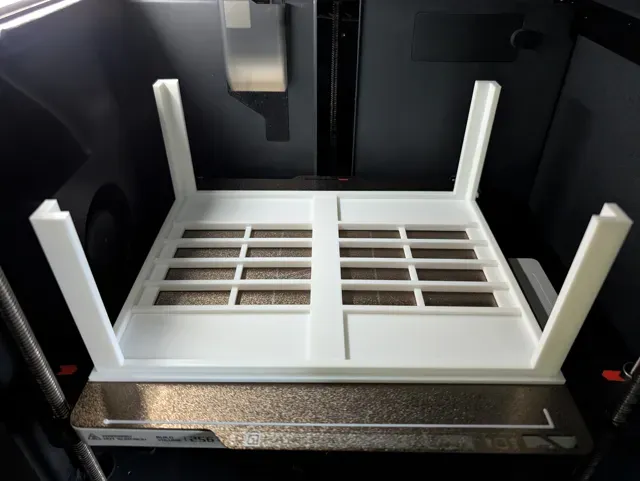

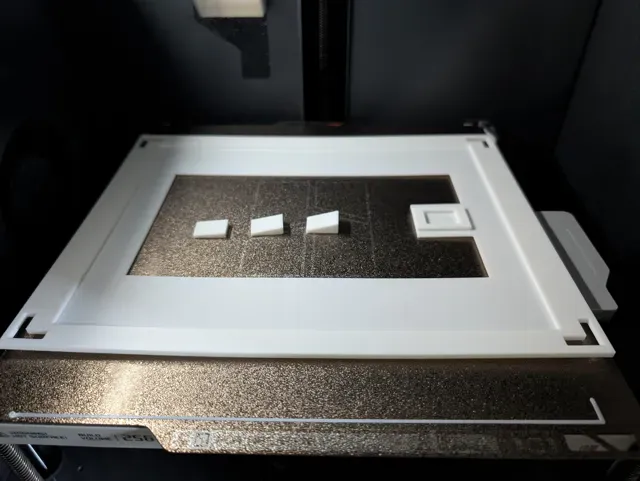

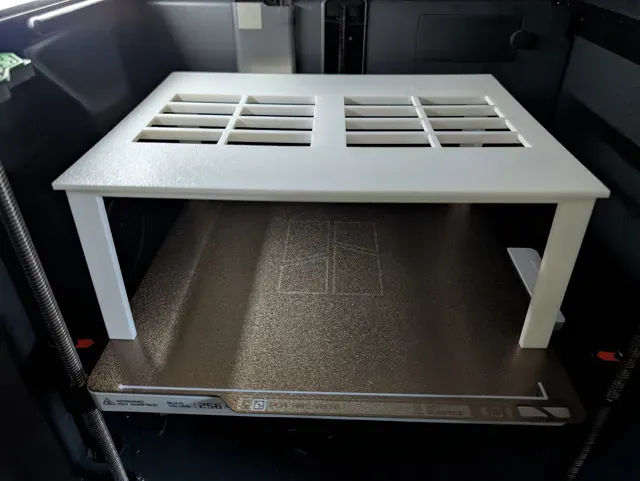

I couldn't find a stand to stack my Spectrum ET2251 modem and GLi.net Flint2 router that I liked. Never done anything in CAD before so this is my first design. The base helps hold the legs and keep them from splaying. It also has a lip on the left side to hold the modem from pushing too far to the left. The base extends under the modem to make it look a little nicer. The bottom can be a bit warpy but will be fine once the legs are popped in.
There is a little ramp that can be inserted to “level” out the modem since it's not a rectangle. The rubber feet on the Flint2 should be on the shelf with plenty of room for air to get in underneath. I have no idea how well it will work I just tried what appeared to make sense.
Руководства и профили печати
Профили печати и шаги
0.2mm layer, 2 walls, 15% infill Gyroid infill printed on the P1S. Model will be too big for the A1 Mini.
0.2mm layer, 3 walls, 15% infill Noticed after a while my original design was sagging. Increased thickness in some spots, removed a few vents and increased walls from 2 to 3.
