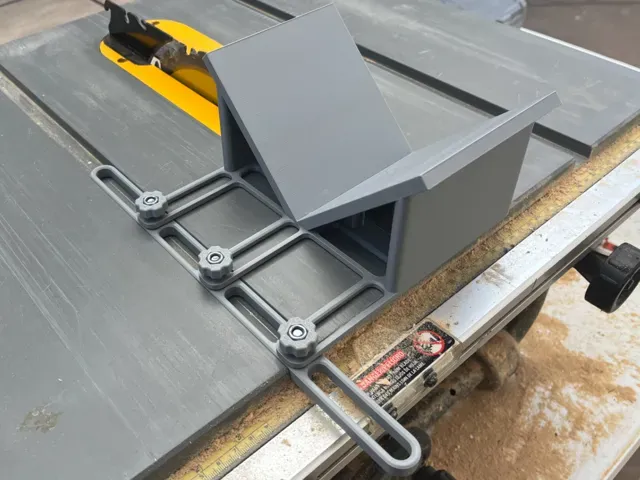

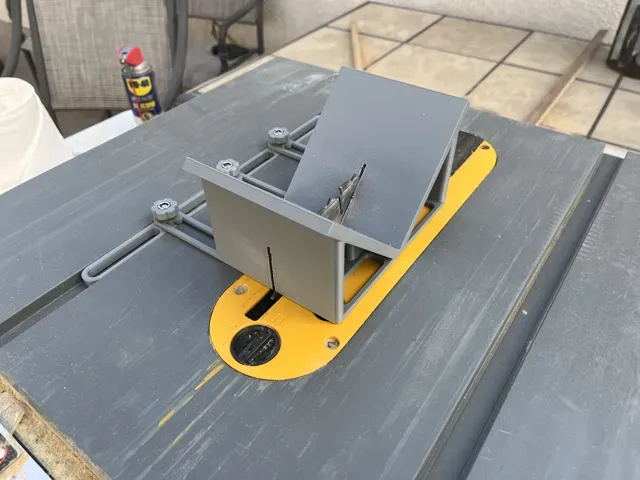

Box Spline Jig for Miter Slot - Dewalt Table Saw

Jig designed to allow easy spline cuts for small boxes or other 90 degree corners

-Designed for Dewalt DW746 Jobsite Table saw. Will fit many other saws

-Miter Slot is a tight fit with no jiggle (3/8" x 3/4")

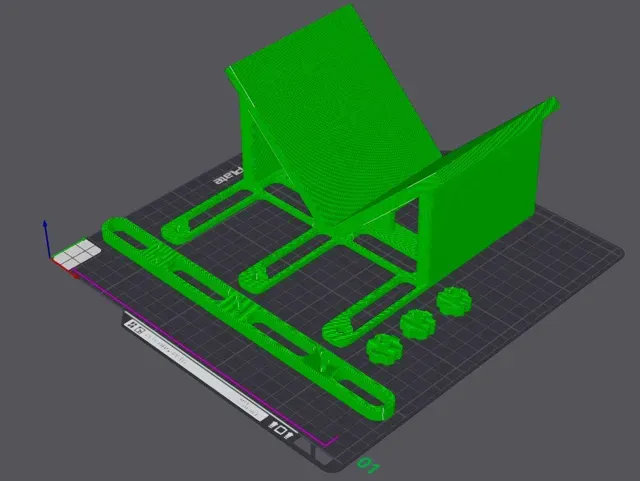

-Prints on one plate

-Requires 3x M6x20mm Hex bolts and 3xM6 Hex Nuts

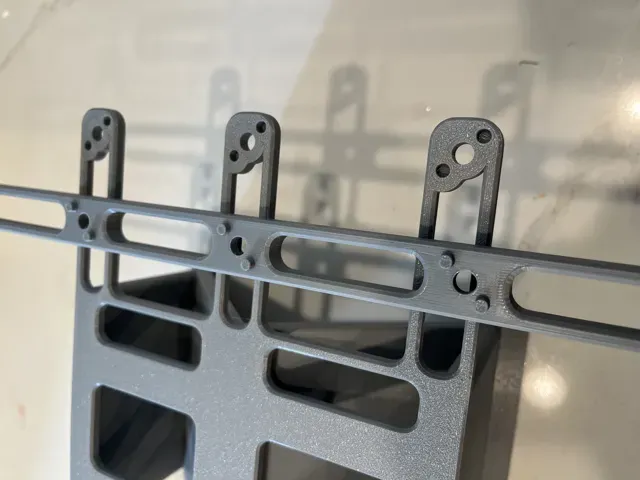

-interlocking pieces for precise assembly

-Ample space for clamping working pieces

First Use:

-Will cut through plastic on first use of the saw to establish the kerf.

-Recommend putting pieces of scrap wood in to minimize tear-out.

-May require light sanding or clean up due to melted plastic from initial cut on table saw

***Keep All hands and finer away from blade at all times***

***Utilize clamps to hold working pieces at all times (never your hands)***

Boost Me Consider giving a boost if you like this model. I am in the process of turning all my old jigs into 3d Printable models.
