Staunton FIDE – Tournament Chess Set

Boost Me 🚀 Like my model? Give it a Boost on MakerWorld! Every boost helps me share my work with more makers and keeps me motivated to create even better models. If you think it deserves some support, just hit that Boost — it’s free but means a lot! 🙌 Thanks a ton! 💙 📄 Description:

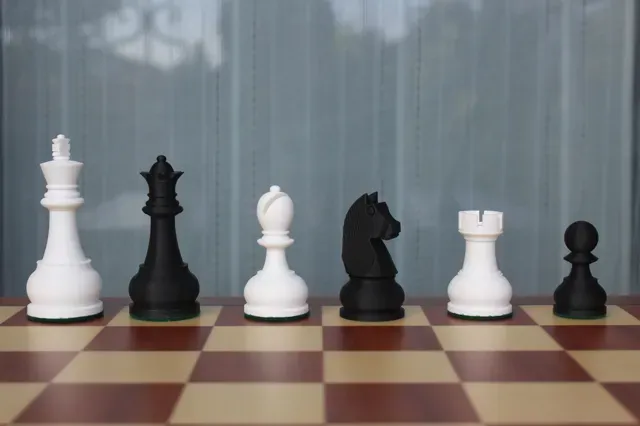

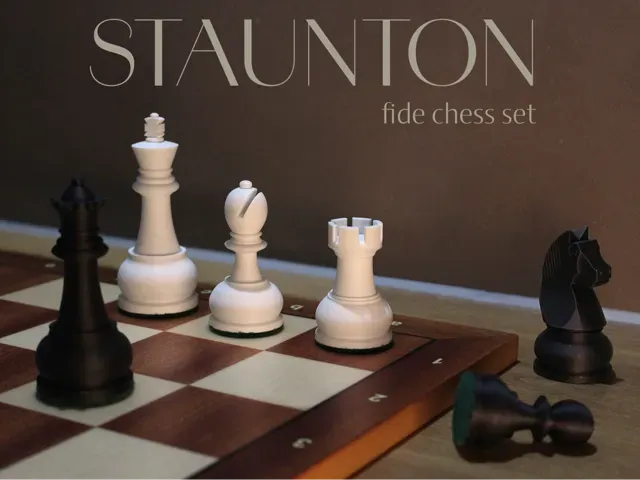

This full 3D-printable chess set is inspired by the classic Staunton style and complies with official FIDE tournament dimensions (king height: 95 mm). The design refreshes the traditional look with cleaner lines and an ergonomic knight, requiring minimal supports.

♟️ About the set:

As a chess player and enthusiast, I wanted to create a set that truly reflects my personal taste. Each piece was designed with the goal of making the playing experience pleasing and satisfying , both to move and to look at. I aimed to create pieces that feel great in the hand , are well-balanced, and have a strong presence on the board — modernized , yet faithful to the Staunton style .

✅ Main Features:

- Tournament-ready design – FIDE compliant - King height: 95 mm - Full set including double queens (extra queens not counted in total weight) - Optimized for minimal supports - Designed for optional internal weighting (~1100 g for 32 main pieces) 🧱 Optional Internal Weighting (Recommended):

To achieve a realistic total weight of around 1100 grams , you can insert metal hex nuts into each piece during or after printing.

Suggested configuration:

Piece Nuts Approx. Weight

Pawn 1× M12 ~25 g

Bishop 1× M12 + 1× M8 ~37 g

Rook 1× M12 + 1× M8 ~37 g

Knight 2× M12 ~52 g

Queen 2× M12 ~52 g

King 2× M12 ~56 g

You will need:

- 44× M12 nuts - 8× M8 nuts Before gluing, it is recommended to screw in the caps. Use silicone or PLA glue to fix them inside.

🔧 Tip: Attach green felt pads to the base of each piece for a professional look and smooth, quiet movement on the board.
