1:28 Scale Mini Z RC Pit Tray

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 30 Лайки
  • 57 Загрузки
  • 33 Напечатали
  • 91 В подборках
  • 5 Бусты
  • 7 Комментарии
  • 0 Просмотры

Автор:KTZD

Опубликована

Описание

Boost Me Thanks in advance! All in one Pit Tray as requested and suggested by @RoydeLeon

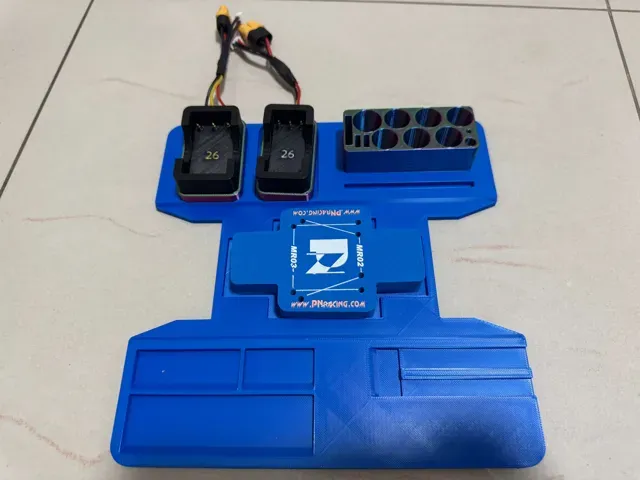

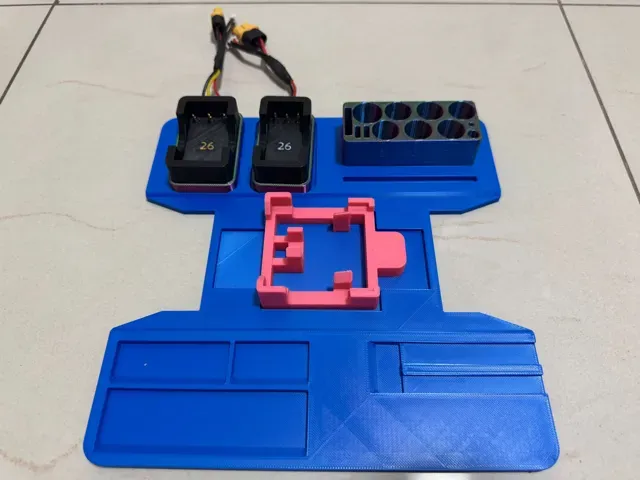

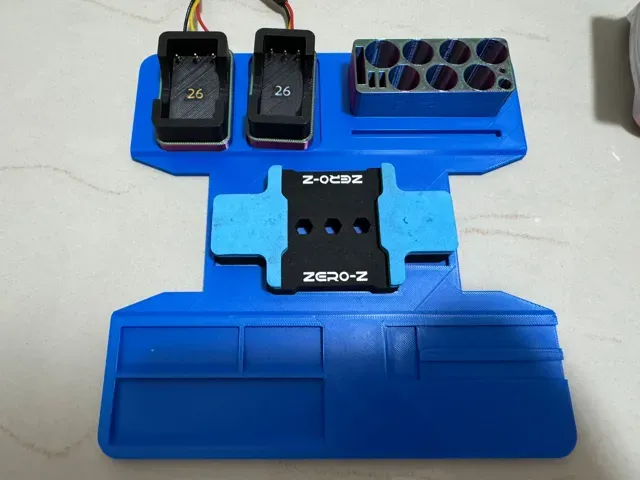

Able to fit different types of foam stands (PN, Zero-Z) as well as my Kyosho Mini Z Battery Remover Stand

Note: Some foam stands may have slightly wider base but squeeze it and it should be able to fit in snugly.

Able to fit my Mini Z Multi Tool Stand as well as my Charging Cradle ( 400mah Extended Base (Select the right print profile!) )

The empty slot is to fit the Tire Size Gauge

Note 2 Print Profiles:

V1: Integrated Tire Tape into Pit Tray

V2: To Glue on Existing Tire Tape Tool (For those who already printed can reuse)

Once again Thanks to @RoydeLeon for the idea!

Руководства и профили печати

Профили печати и шаги

V1 Integrated Tire Tape Cutting Tool Integrated Tire Tape Cutting Tool

For those without Tire Tape Tool printed or want a compact all in one solution

2 hour 15min print time

V2 Slot for Existing Tire Tape Tool Slot that you can put the existing tire tape tool printed to either glue on or to mount as needed.

Sorry for the re-used photo

2 hour 10 min print time
