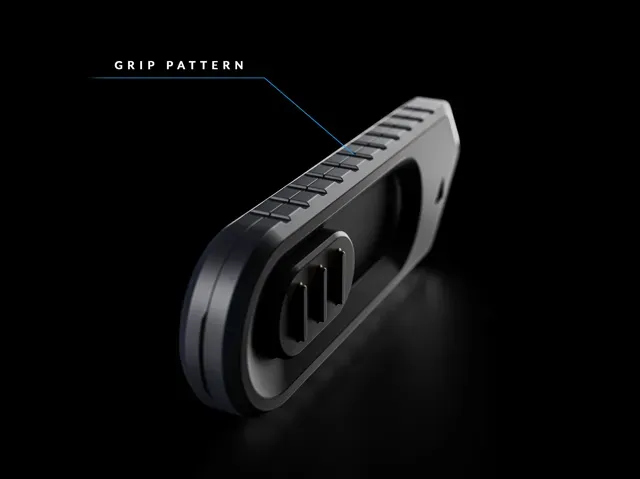

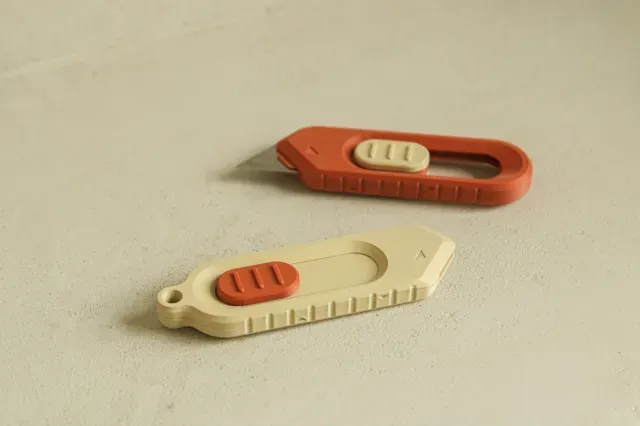

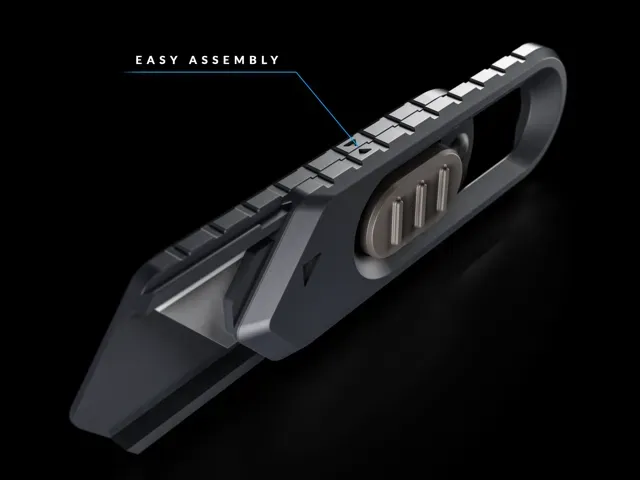

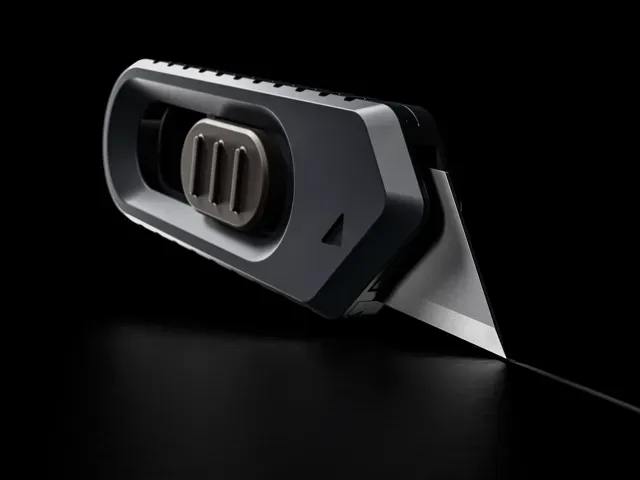

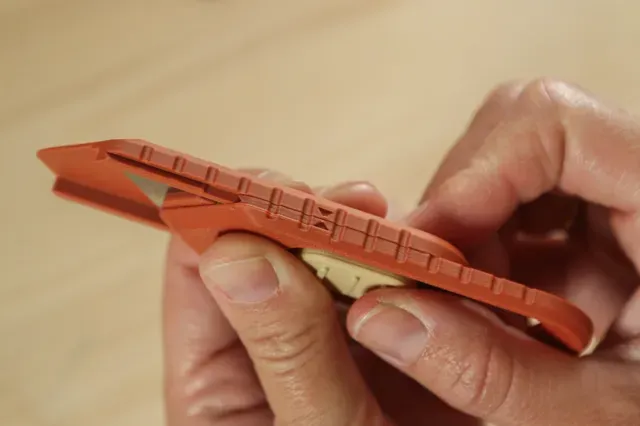

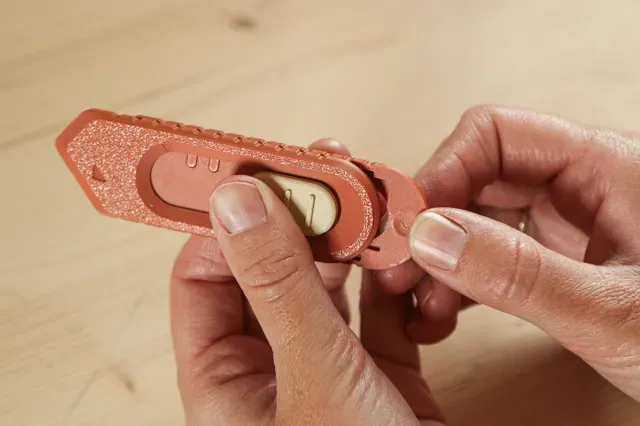

Mini Utility Cutter - Compact & Stylish

0.16mm layer, 2 walls, 15% infill 0.16mm layer, 2 walls, 15% infill

Print time: ~1 hour

This is a pretty accurate model. Make sure that your printer and filaments are calibrated.

Knife Holder Skadis 0.16mm layer, 2 walls, 15% infill

AMS, 3 Colours - 0.16mm layer, 2 walls, 15% infill Based on the original print profile form the designer with following adaptions:

- print sequence by object - arranged and oriented objects on the build plate related to print sequence - added 3 colors for AMS

PETG HF | Reinforced & Reliable 0.2mm, 4 walls, 18% infill This profile is not designed for speed; it is engineered for SAFETY.  For a cutting tool like this, component failure is not an option. This profile has been meticulously optimized for  Bambu PETG HF  to create the most robust, durable, and reliable version of this utility cutter possible. Every setting prioritizes mechanical strength and user safety over print time.

Key Safety Enhancements and Technical Reasons:

- Engineered for Failure-Resistance (4 Walls):  The number of walls has been increased to 4. This creates a massively reinforced outer frame, significantly increasing the model's resistance to cracking or splitting if dropped or put under high stress. This is the most critical enhancement for a handheld tool. - High-Strength Honeycomb Core (18%):  Honeycomb infill was chosen for its excellent compressive strength, providing a rigid internal structure that prevents the handle from flexing or deforming during use. 18% density offers the ideal balance of internal support and material efficiency for this specific application. - Optimized for PETG's Inherent Toughness (Flow & Cooling):  This profile leverages PETG's superior toughness. - Reduced Cooling (30-50% Fan):  Slower cooling dramatically increases layer adhesion, creating a part that is laminated almost like a single solid object. This is essential to prevent layer separation. - Calibrated Flow Ratio (0.96):  Ensures precise dimensional accuracy for the sliding mechanism while preventing over-extrusion, which can create weak spots. - Flawless Internal Mechanics (Bridging & Seam):  A safe tool must also be a reliable one. - Slow Bridge Speed (25mm/s):  Guarantees that all internal overhangs and channels for the blade mechanism print perfectly, ensuring smooth and predictable operation without catching. - Rear Seam Position:  The layer seam is hidden on the back of the handle. This is not just for aesthetics; it places a potential micro-weakness away from primary grip areas, further enhancing structural integrity. - Calibrated for Bambu PETG HF:  While using a High-Flow filament, the print and retraction speeds have been deliberately tuned to a precise balance point. This ensures flawless extrusion without moving too fast, which could compromise the critical layer-to-layer bond required for a safe tool. This profile is the responsible choice for anyone who intends to actually use this cutter. Thank you to the author for the excellent and functional design.

PETG Strength + Optimization Profile PETG hybrid design blending the strengths of two designs.  Combining both an optimized and strength profile and printed in PETG, it ensures absolute durability, and optimal performance.  0.20mm strength layer height, 3 walls, 25% gyroid infill, and Arachne Wall generator.  Nearest seam for less artifacts.

multicolor_petg_0.16mm layer, 2 walls, 15% infill

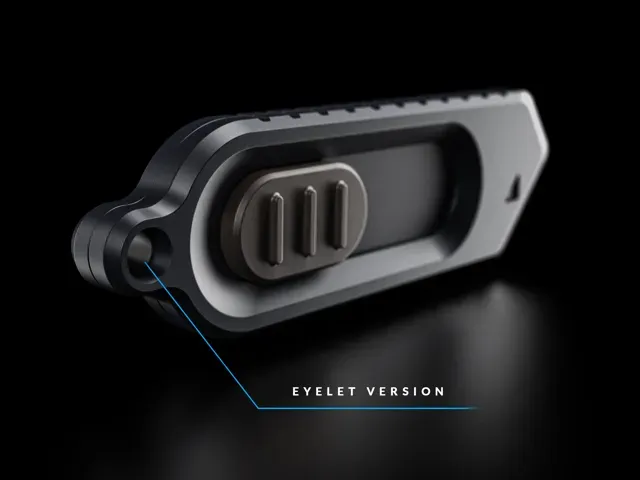

Eyelet Version - Engineering Filament Optimized Modified Eyelet Version with updated geometry to reduce overhangs and improve printability with engineering filaments such as PET-CF, PA6-CF, and similar materials.
