Modular Wine Rack Insert for IKEA EKET Shelf

Modular Wine Rack Insert for IKEA EKET Shelf (3×3 Grid)

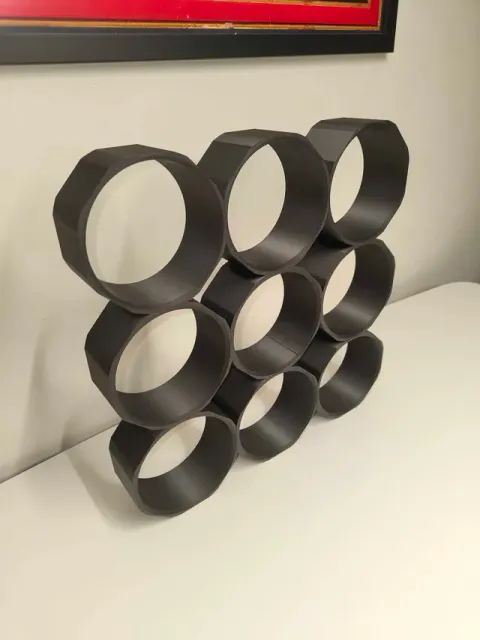

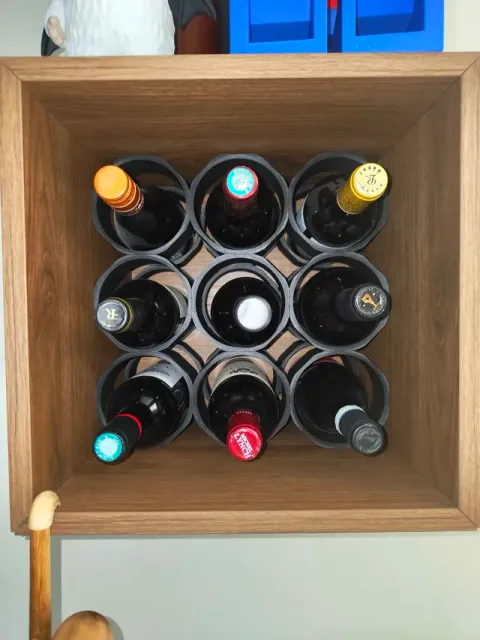

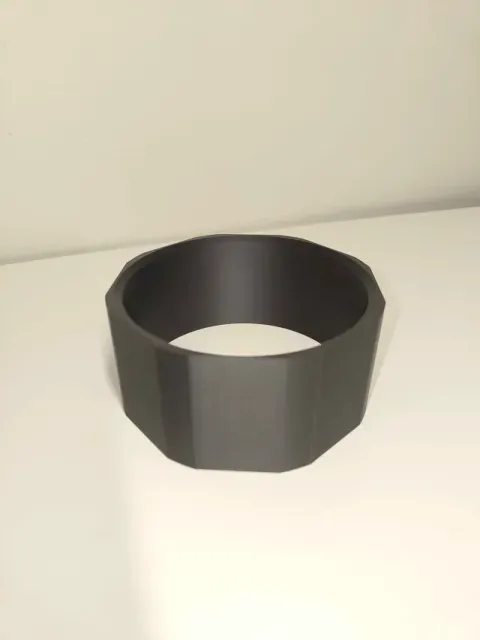

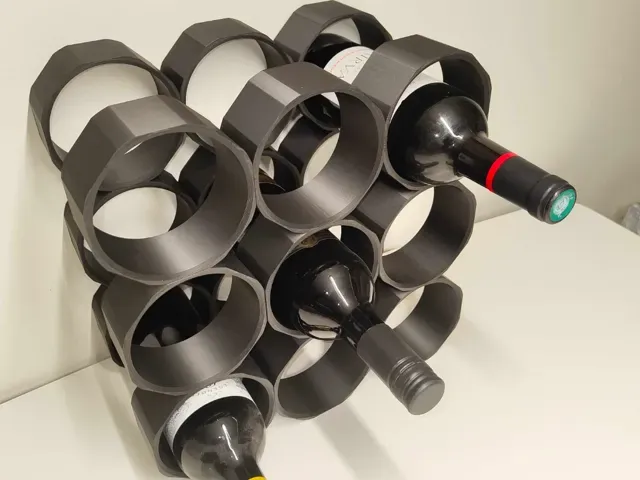

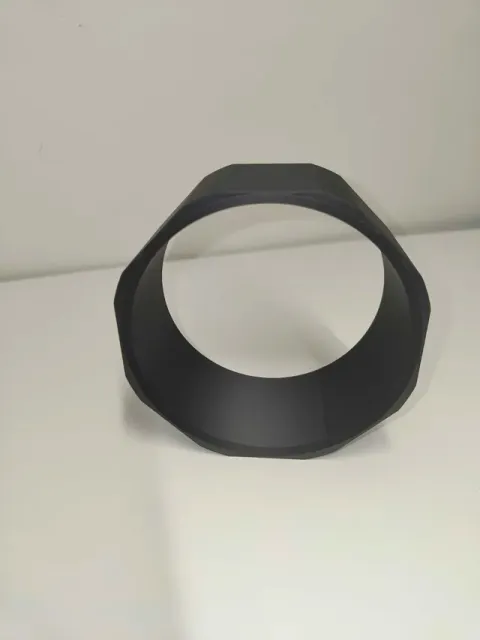

This 3D-printed modular wine rack insert is designed to fit perfectly inside an IKEA EKET cube shelf. Each element is a lightweight faceted ring that can be printed individually and glued together in a 3×3 grid to hold up to nine standard wine bottles .

The design combines a minimal, modern look with practical functionality — perfect for turning your EKET shelf into an elegant wine display.

⚠️ Disclaimer: IKEA EKET cabinets are not officially rated to hold heavy weight when wall-mounted. Use this insert at your own risk and preferably in floor-standing or supported shelves .

🧩 Features

- Modular 3×3 design — print as many rings as you need. - Clean geometric look with flat outer edges. - Fits most standard wine bottles (Bordeaux/Burgundy). - Easy to assemble — just glue the rings together. - Works great in IKEA EKET cubes or similar-sized shelves. 🖨️ Printing Recommendations

- Material: PETG (recommended) or PLA+. - Layer height: 0.2 – 0.28 mm (0.24 mm ideal). - Perimeters: 3–4. - Infill: 15 – 25 % (Gyroid or Lines). - Supports: None required. - Orientation: Flat on the build plate. For one insert (3×3 grid), print 9 rings . Two full inserts (18 rings) fill a standard IKEA EKET cube.

🛠️ Assembly Tips

- Arrange the rings in a 3×3 layout before gluing. - Use CA glue or 5-minute epoxy for bonding. - Assemble 3-ring rows first, then glue the rows together. - Add small felt pads on the back for a snug fit and furniture protection. 📏 Dimensions

- Sized for standard IKEA EKET cubes. - Fits standard wine bottles (750 ml). - May not fit extra-wide bottles (e.g. champagne). 📦 Files Included

- EKET wine rack.3mf – single ring module.
