Harbor Freight 40p Socket Set Insert 62843 (REMIX)

This is a quick remix of PacoDeth's cool organizer for the cheap Harbor Freight 40 Piece socket sets:

https://www.thingiverse.com/thing:4462590

HOW TO TELL IF YOU NEED THIS REMIX

If you have an older set and want to see if you should print the original thing linked above or this remix, you can check by measuring the 9/16 socket.

Since the hole in the original model is 19.38mm, if your 9/16" socket is larger than that, try this version which has a hole sized at 20.625mm for the 9/16" socket.

Description:

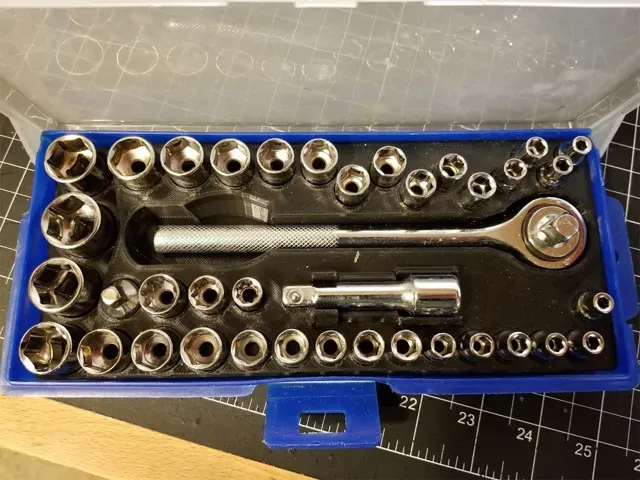

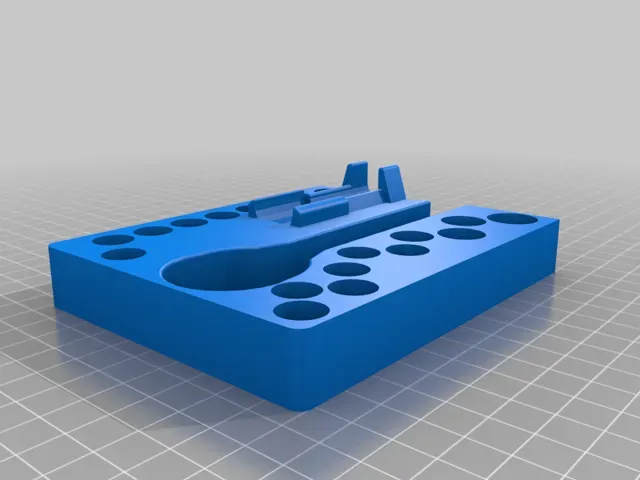

If you have this set, you know what a piece of junk the organizer is that comes with the set is, mine was falling apart so was happy to print the model when I saw it posted. The design that PacoDeth posted makes the set much handier since parts are not falling all over the place. However not all my sockets fit in his version (I have an old set and the design appears to have changed slightly), so I remixed this with some extra clearance on the 9/16 socket, 8mm, and 5/16 sockets. I also raised the base by a few mm to allow all the parts to sit at the same height, which also makes for less rattle.

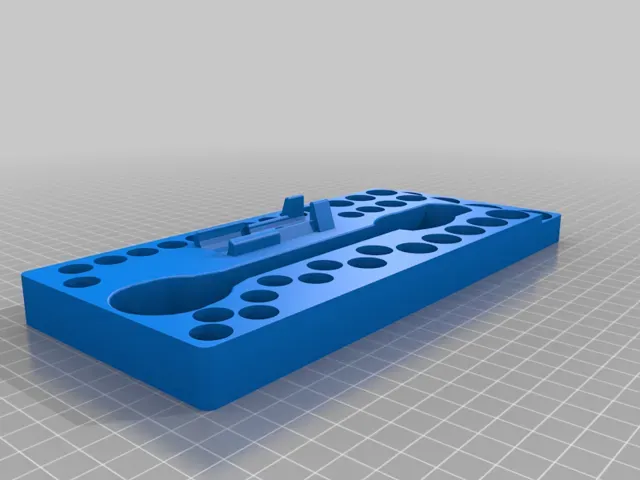

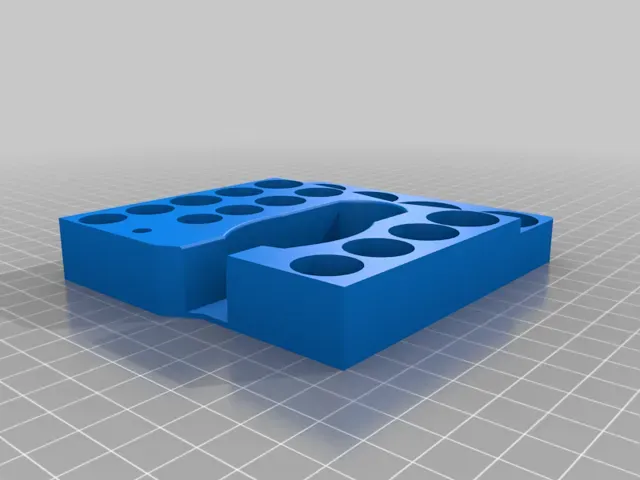

One more change was to "merge" the parts so it can be printed in one piece on a cr10 size printer. The merging was done by just saving the STL's together as one part, but in Cura it slices it as one continuous part (using a 0.4mm nozzle). The merged part may have issues with some slicers because it was generated from the halves set together (it was not formed from one solid).

This version posted here has a few minor improvements over the one in the pic (made several holes a bit larger) but should be good to go.

Thanks again to PacoDeth@thingiverse for the awesome model and for posting the sketchup files so I could modify it to fit my set!

If you find these models useful, please post a like or a comment with some pics of your prints.

Boost Me Thanks for supporting my work! You can find the other things I'm working on at my blog here .  You can also follow me here or on Printables, to see what new stuff I post.  If you would like to support my work, you can Buy Me A Coffee using this link:

https://www.buymeacoffee.com/mystoopidstuff

Changelog:

9/9/2024 : Updated the model by deepening the slots for the 9/16 and it's inboard neighbor by 3mm based on feedback.  If there is a problem, please provide as many details as possible so I can try and update the model further (the socket set seems to have changed in the several years since I originally remixed it).

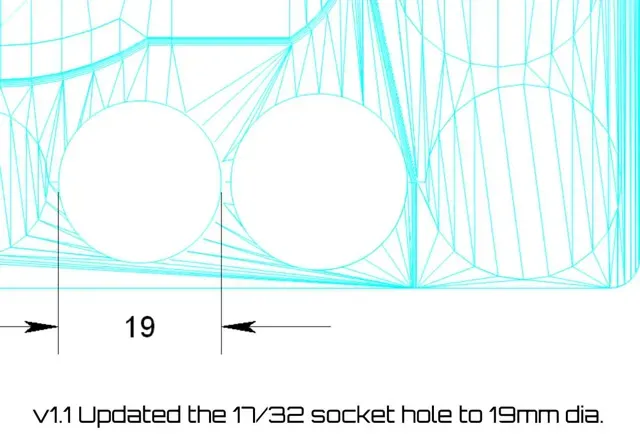

6/22/2025: Updated the model by increasing the diameter of the 17/32 socket hole to 19mm, thanks to feedback.  The updated models are found in the folder named “New V1-1 Models”.  The 3mf profile will also be updated with this change.
