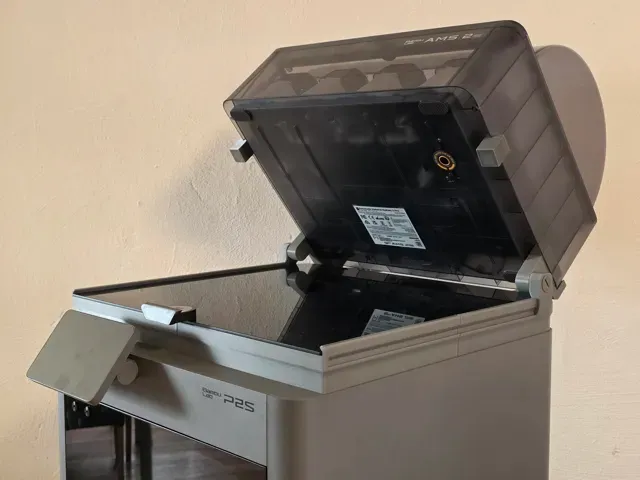

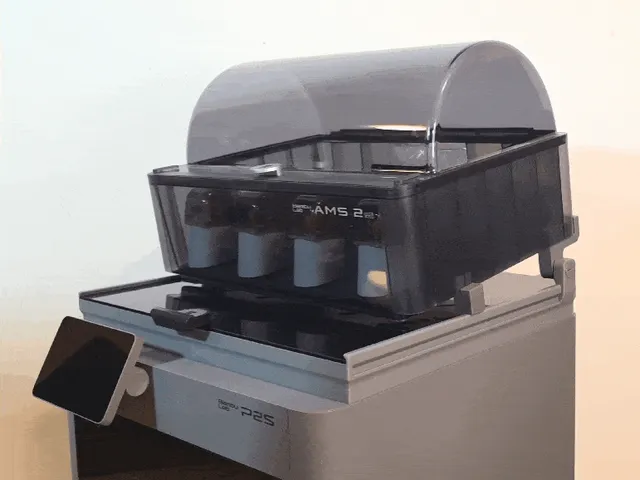

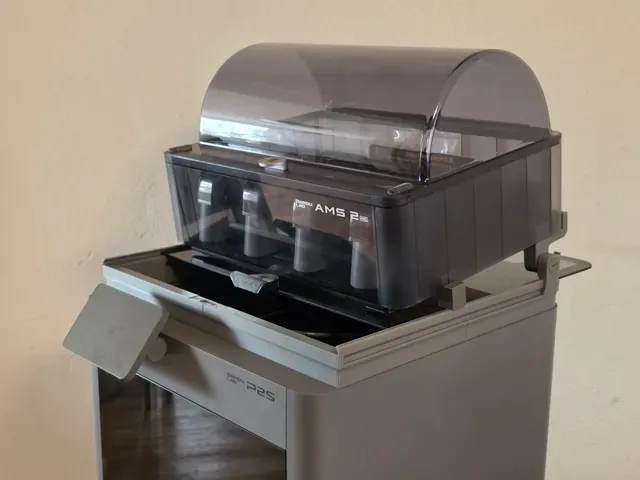

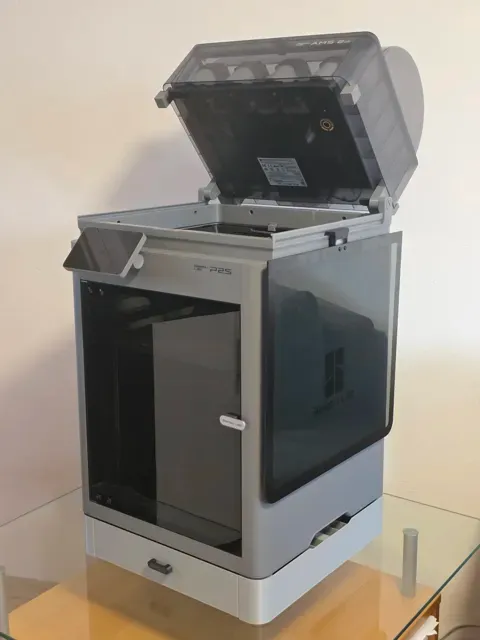

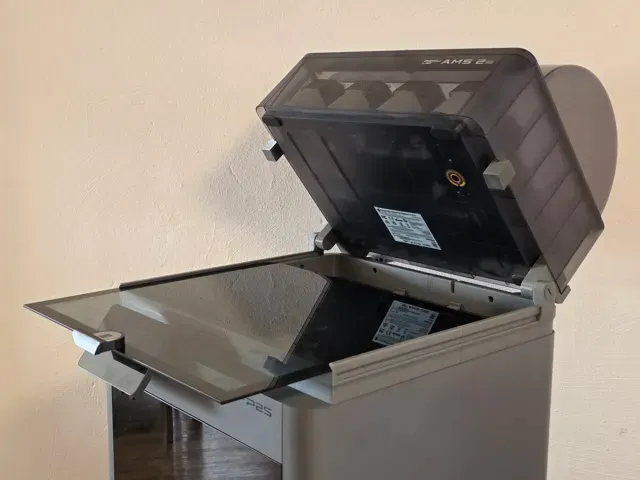

P2S / X2D Riser - AMS Flipper V1

0.2mm layer, 2 walls, 15% infill

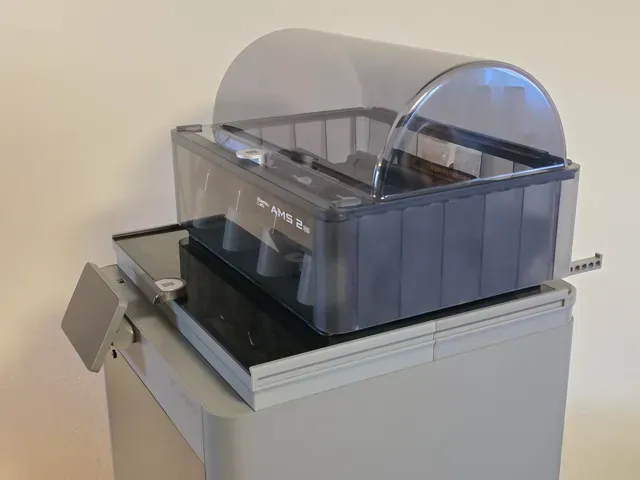

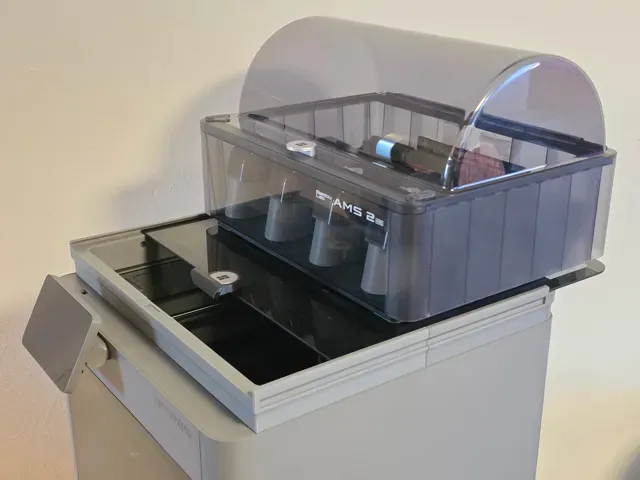

Riser without tilt function AMS tilt function removed. AMS sits on top of the glass, or for the printers without AMS unit.

0.2mm layer, 2 walls, 15% infill

PETG

higher front feet for a level AMS. it is recommended to use some sort of soft coushions under the feet, to reduce the vibration noises before printing.

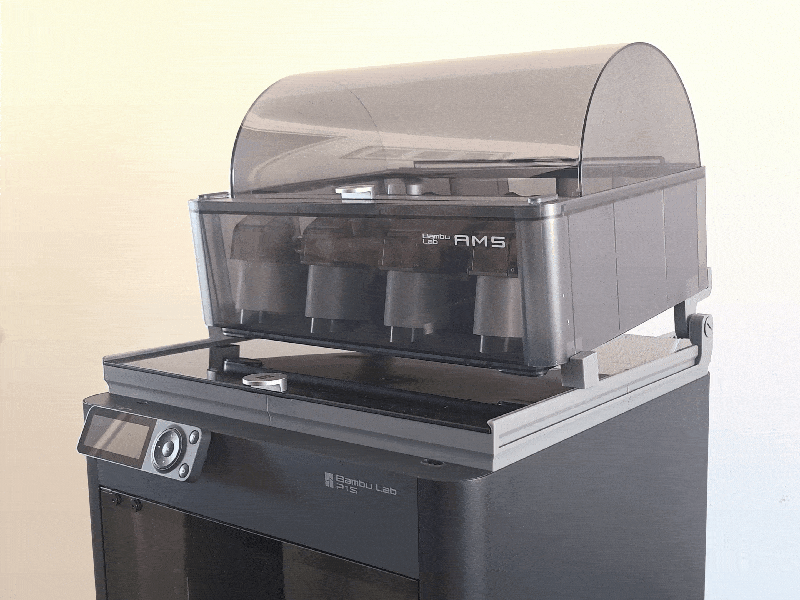

Riser v6 round clips long legs Rounded clips Level (longer legs)

Front feet for slightly thicker-walled AMS2pro There are two versions of the AMS 2 Pro unit , differing slightly in wall thickness. If the brackets fit too tightly with the designers profile, you can print these.

adjusted the hole in the front feet so that it can fit the slightly thicker-walled AMS2pros.

ONLY Clips with Fillet, 0.2mm layer, 2 walls, 20% infill Fillets are added to the clips to protect the PTFE tube. (Third front clip added)

Riser with Beveled Clips Combined the Riser with the tilt and the beveled clips for an all in one print.

PETG no AMS Tilt .2mm layer, 15% infill adaptive cubic Printed out with Generic PETG

all line width 0.6mm

15 percent Infill

0.2mm layer height

infill pattern adaptive cubic

One hand glass insert ver. 0.2mm layer, 2 walls, 15% infill You can now insert the glass panel using ONLY ONE HAND. The original riser works well, but the front edge can make sliding the glass lid in slightly awkward. This version adds a front cutout slope that allows the glass to be put on first at an angle and then seat and slid into place by only using one hand.

Warning: This ONLY contains the modified front left and right pieces, you need to print other parts in order to use the whole setup.

0.2mm layer, 2 walls, 15% infill.

TPU feet for front riser legs TPU feet to cushion the contact between the riser feet and side rails.

0.2mm layer, 2 walls, 15% infill Thought this might help some folks - but if you need the special over-the-chamber stand for TPU or whatever else, this might help.

TPU Spool Holder System for P2S / X2D Riser - AMS Flipper V1 Suitable for PETG, also PLA print is OK Including struts/supports to hold the AMS in the flipped position at Plate 2

Print with Support Original: TPU Spool Holder for P2S / X2D Riser - AMS Flipper - Free 3D Print Model - MakerWorld This link also includes the support to secure the AMS in the flipped position.

Haken für Multiboard Wand Ich setze sehr gerne Multiboard ein um Dinge an die Wand zu bringen. Dadurch bin ich auf die Idee gekommen man könnte so am Drucker die wichtigsten Sachen an der Seitenwand aufbewahren. Die Haken passen für alle Platten von der Seite Multiboard .

Wenn Ihr mein Projekt nachbauen wollt, findet Ihr alle Teile als Druckdatei unter: Multiboard Seitenplatte für Bambu mit Sanja Riser von wolfgang.wendefeuer MakerWorld: Kostenlose 3D-Modelle herunterladen

Lizenz

Dieser Harken ist ein Remix des ursprünglichen MultiBoard-Snap. Daher gilt die Multiboard-Lizenz: https://www.multiboard.io/license

Dank an @DavidD für das Multiconnect System und Jonathan ( KeepMaking ) für die Erstellung von multiboard

Lower Height, Tall Feet w/Knobs Two warnings: 1, the settings are not special - this is mainly for geometry changes. 2, you will need to verify that the AMS feet will fit your specific unit - there are at least a couple variations of the AMS 2 Pro (mainly the wall thickness where the feet mount). Please, check before you print!

The overall height of the frame was reduced in the slicer by removing a safe amount of flat, vertical wall space, ~6mm. The space was taken out above the clip mounts to preserve clip height, and below the curve to preserve geometry. Rails are the same, so accessories will work fine. I cannot speak to whether it would affect installing light strips, but the cutout is still there (it looks like they'd fit to me). It's a subtle chop, but I think it looks sleek.

I've also included two options for feet. The ones pictured are modified from another profile , with knobs that rotate for comfortable lifting (they take a 608 bearing). I believe they are appropriate for AMS 2 Pro units with thicker walls. There's also some standard feet that I adjusted for height to match, but please verify whether they would fit your AMS before printing them!

I'm uploading this profile to share mainly geometry changes (chopped height, modified feet), not the print settings. My actual print settings were a bit different than what is included; I would recommend separating the smaller parts from the frame and adjusting accordingly. Everything was printed on a .6mm nozzle between .18mm and .3mm layer height. The filament used was Polymaker ASA-CF08 in Dark Grey. Note that it comes in .5kg spools, which this project would pretty much consume.

Adapter for AMS 1 and Riser v5 brackets Adapter for mounting a first-generation AMS—using the brackets from Sanja 3D’s Riser V5—onto the mounts of this riser. The adapters fit precisely into the mounts of this riser for the P2s and X2D. No more wobbling or slipping.

PETG, 0.2mm layer, 2 walls, 15% infill

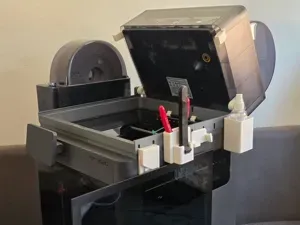

Scrapper Holder For Bambu Lab official scrapper

See below for more assembly info:

https://makerworld.com/en/models/2268164-accessories-for-riser-by-sanja-3d

Bambu Glue Bottle Holder For Bambu Lab official liquid glue

See below for more assembly info:

https://makerworld.com/en/models/2268164-accessories-for-riser-by-sanja-3d
