MTB Front Mudguard/Fender 29"/27.5" +Zip-Tie Mount
Сведения о модели
- Площадка
MakerWorld
- Цена
- Бесплатно
- Лицензия
- CC-BY-ND
- Можно печатать и распространять с указанием автора, в том числе в коммерции, но без изменений.
- Форматы
- 3MF
- 333 Лайки
- 596 Загрузки
- 275 Напечатали
- 939 В подборках
- 6 Бусты
- 27 Комментарии
- 0 Просмотры
Описание

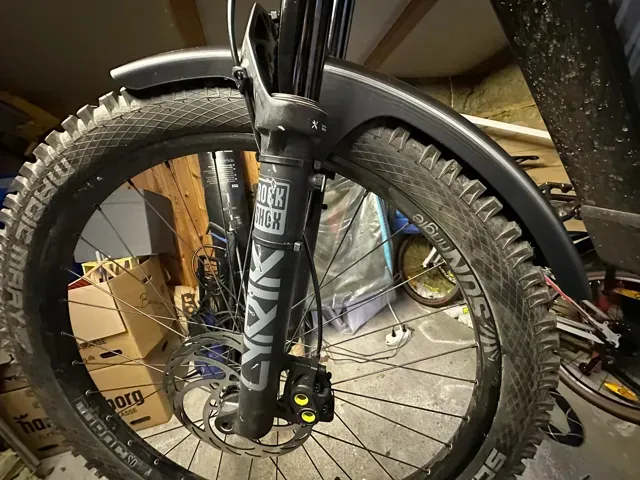

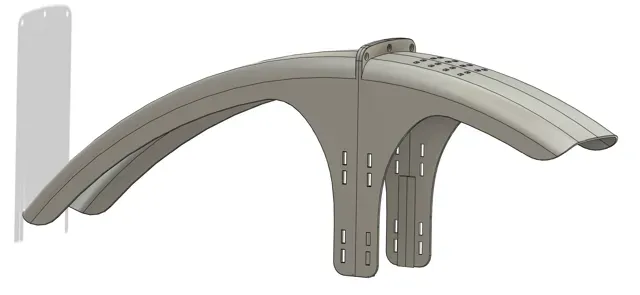

This front mudguard/fender is designed for MTB and eMTB bikes with 29" wheels and up to 2.8" tires — but it also fits 27.5" and narrower setups.
✅ No support material is required – all parts are designed for clean, support-free printing.

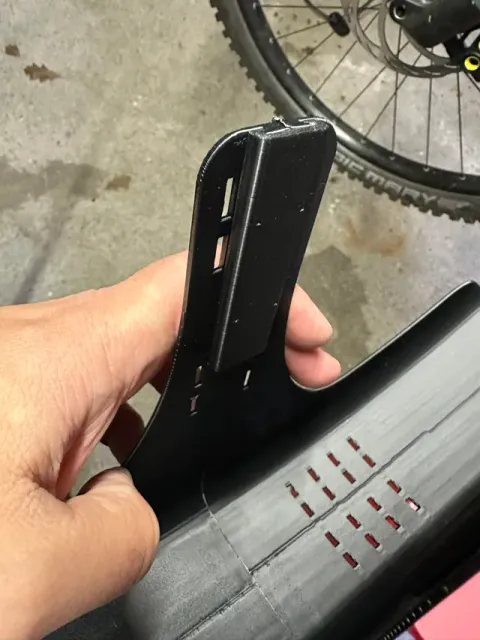

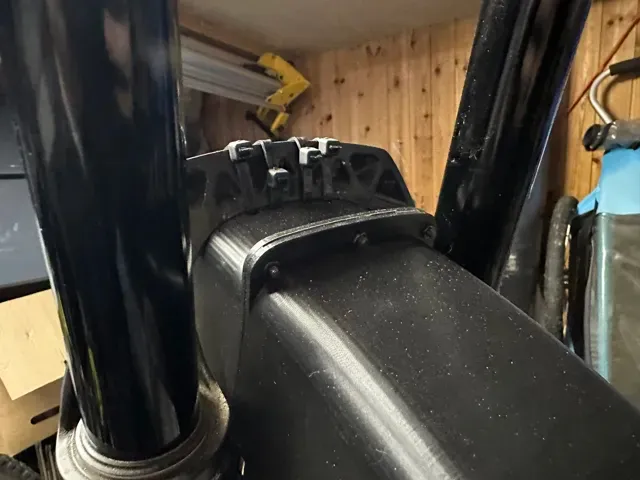

It mounts easily using 6–8 standard zip ties (≈4.4 mm width) plus 3 × M3 nuts and 3 × M3×8 mm hex bolts for extra stability. Two dovetail connectors are included in the model — they should be printed standing upright for maximum strength. Each connector is attached by four small safety bridges to ensure secure and reliable printing.
The fender has been optimized for PETG HF from Bambu Lab , providing the right balance between rigidity and flexibility. You can also print it in ABS if you prefer. PLA is not recommended due to its lack of flexibility and impact resistance.
2/11-25 added a shorter version for smaller printers (X1C/P1S sizes). 249mm height.
Руководства и профили печати
Профили печати и шаги
Short model 249mm height - 0.2mm layer, 6 walls, 15% infill 0.2 layer height
6 walls and 15% infill
No supports needed - but use a brim for stability
0.2mm layer, 6 walls, 15% infill The big part is 308mm high, so needs a big printer. Theres also a shorter version available, use the other profile.
0,2 layer hight
6 walls
No supports needed - but use a brim for stability
