(Beer?) bottle/can holder for the fridge

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
STL
  • 2 558 Лайки
  • 6 026 Загрузки
  • 5 169 Напечатали
  • 10 178 В подборках
  • 273 Бусты
  • 641 Комментарии
  • 0 Просмотры

Эта модель на других площадках

Автор:schiko

Опубликована

Скачать на MakerWorld

Описание

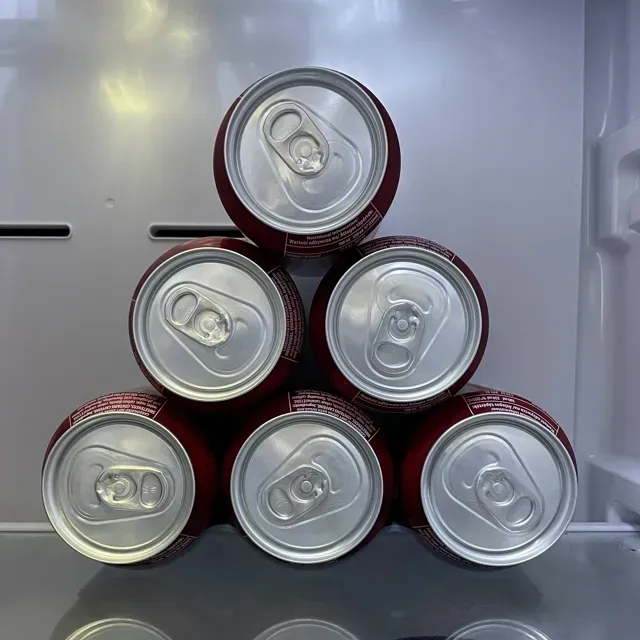

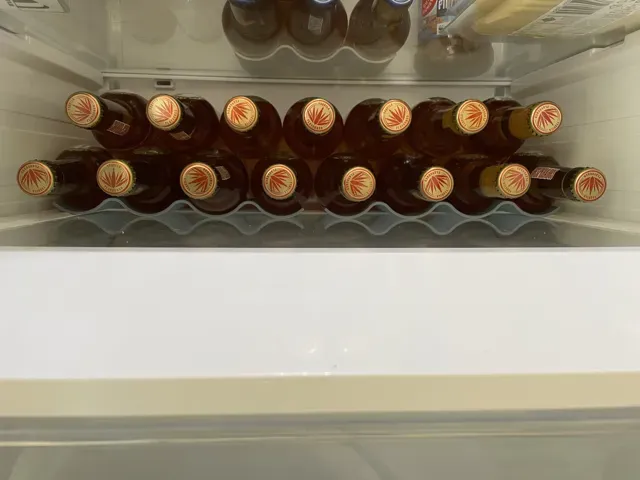

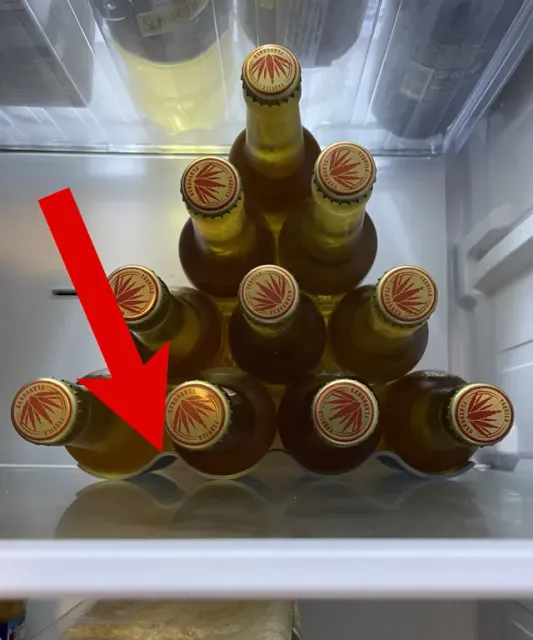

Organize the bottles/cans in your fridge and prevent them from rolling, clashing or falling. Easy to print, many different sizes!

Chose from 4 different diameters :

- (beer) bottle 330ml: 61mm - (beer) bottle 500ml: 70mm - (beer) can: 66mm - (beer?) can/slim: 58mm - (beer?) can/slim 250ml: 53mm … and versions for up to 8 bottles/cans !

Inspired by FrankieNL's beer holder on Printables, but I wanted it a bit smoother and needed other sizes, so I designed it from scratch.

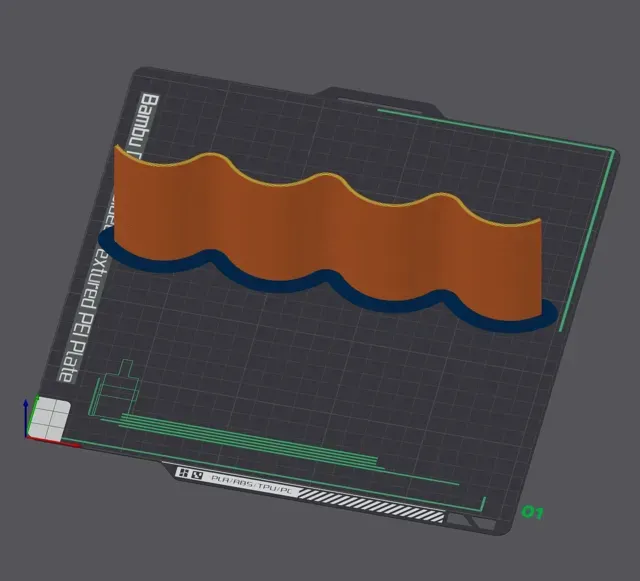

I printed with .4 nozzle and 3 walls (the holder is 2.4mm thick) without brim, no place for infill. If you are not sure about adhesion you should use a brim. PLA worked fine here.

I originally posted this model at Printables .

2023-12-28 : I updated the print profiles to put up to 5 different versions to each 3MF file.

Руководства и профили печати

Профили печати и шаги

2-6x bottle_0.33l_61mm BRIM

2-5x bottle_0.5l_70mm BRIM

2-5x bottle_0.5l_70mm no_brim

2-5x can_classic_66mm no_brim

2-6x bottle_0.33l_61mm no_brim

2-6x can_slim_58mm BRIM

2-5x can_classic_66mm BRIM

2-6x can_slim_250ml_53mm no_brim

2-6x can_slim_250ml_53mm BRIM

2-6x can_slim_58mm no_brim uploaded again with photo

0.6mm nozzle, 0.3mm layer, 2 walls, 15% infill Turned 45 degrees to fit on the A1 mini build plate. Outer brim added.

0.12mm layer, 3 walls, 15% infill

2-3x bottle 0.5l 70mm BRIM extra Draft Optimized for A1 mini.

Size for 2x or 3x 0.5l bottles only.

Use Brim and extra draft with 0.28mm layer, 3 walls, 15% infill!

0.2mm layer, 3 walls, 15% infill - 1l bottles Scaled the 0.75l profile to 1l bottles with 3 or 4 on the bottom layer.

0.2mm layer, 3 walls, 15% infill Widened the profile to fit wine bottles. Most “normal” cava/prosecco/champagne bottles fit as well when I tried them
