Motorola Cable Modem Rack Mount 1.3U - 10" rack

Площадка: MakerWorld
Цена: Бесплатно
Лицензия: CC-BY-NC; Можно печатать и изменять для себя с указанием автора; продавать модель и отпечатки нельзя.
Форматы: STL

4 Лайки
32 Загрузки
18 Напечатали
24 В подборках
1 Бусты
2 Комментарии
0 Просмотры

Автор:fmriguy

Опубликована 31.10.2025

Скачать на

MakerWorld

Описание

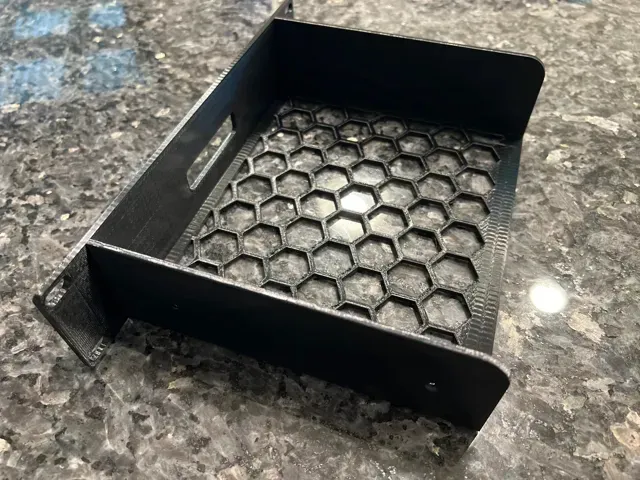

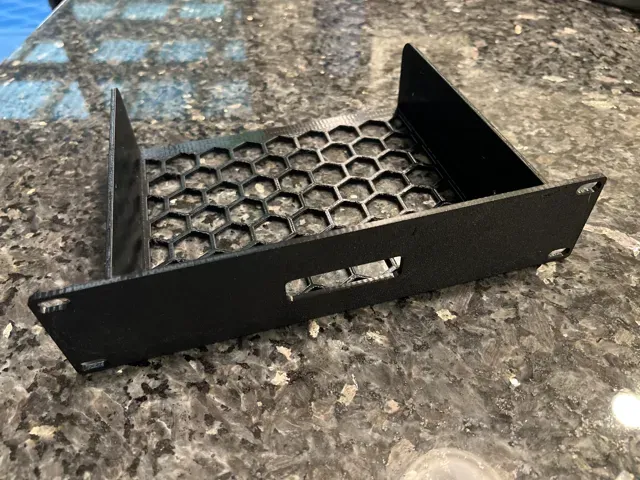

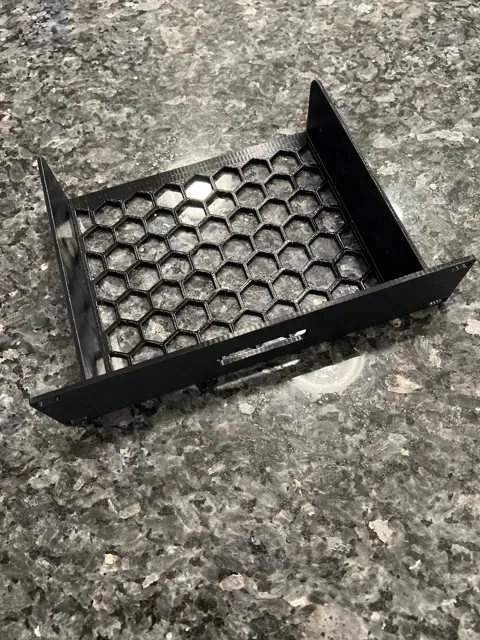

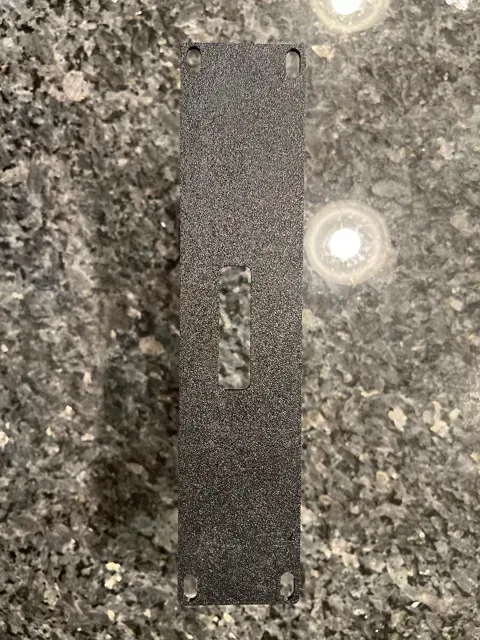

This mount will allow you to attach a Motorola cable modem ( models MB8611 / MB8600 / MB7621 ) horizontally and store in a 10-inch networking rack. Unscrew the base from the modem, lay on its side and attach screws through the side of the mount into the base of the modem.

Modified the original 19" model from loopj (https://www.printables.com/model/123833-motorola-mb8611-mb8600-mb7621-cable-modem-rack-mou) to fit a 10” server rack. Removed attachment holes from larger 3-piece model that are no longer needed. Added some fillets to the face and removed overhangs on the honeycomb structure so that model can be printed face down on the print bed to eliminate supports.

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 2 walls, 15% infill Printed face down on the bed to minimize overhangs and not need supports. I printed in PETG for better temperature resistance but PLA would probably be fine as well.

*.2mm layer height

*15% gyroid infill

*2 walls
