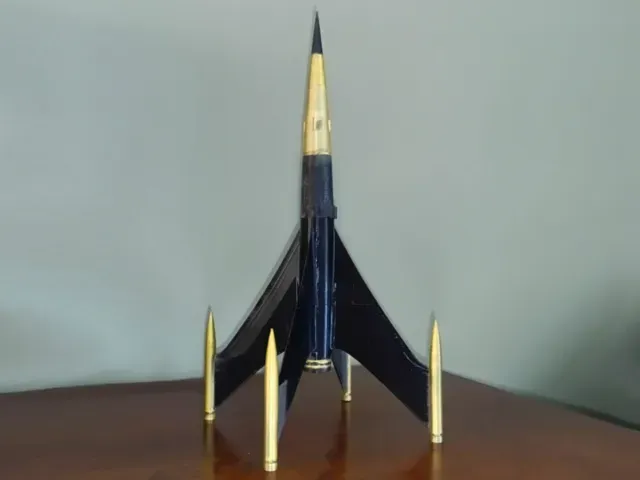

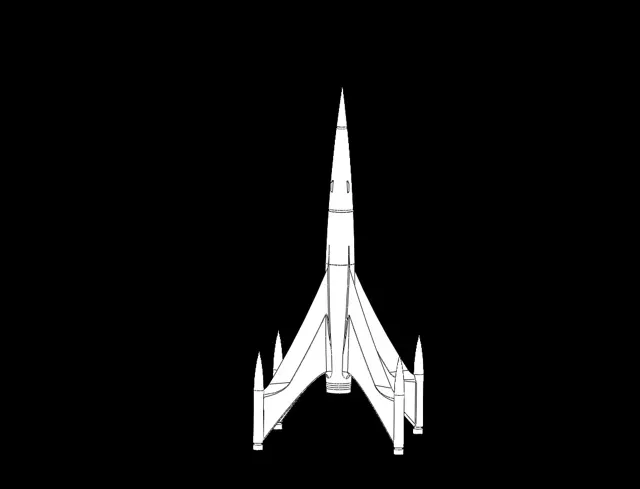

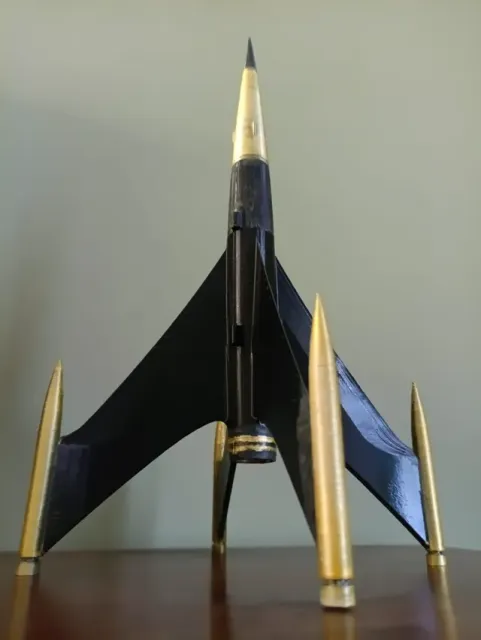

Sci-fi Model Rocket

Valigursky rocket (Have a look at my other rockets here )

specs:

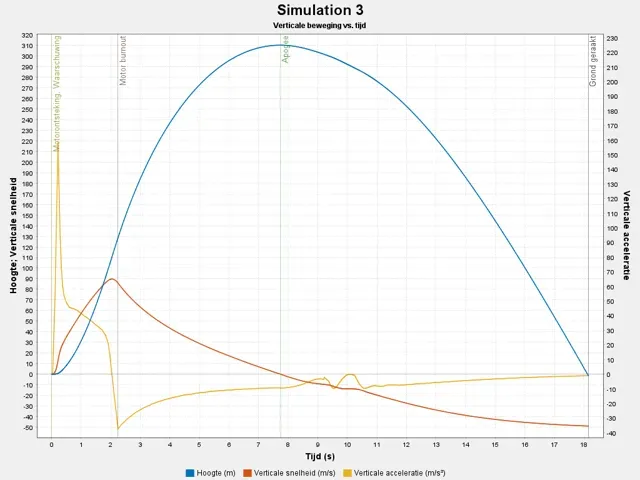

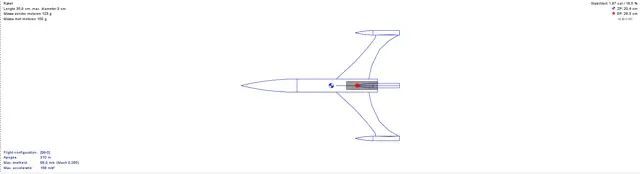

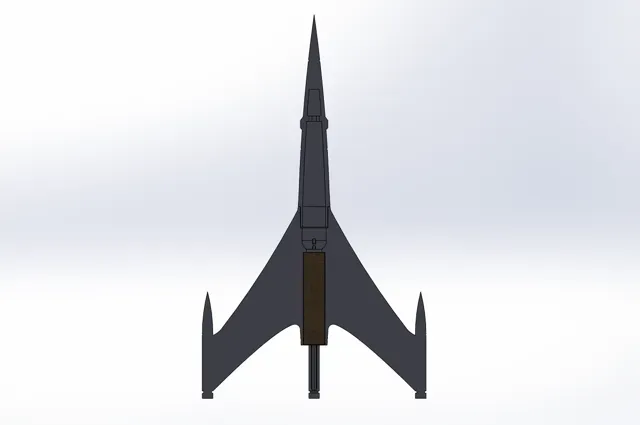

- total length: 360mm - weight (without motor): 144g - body diameter: 30mm - launch lug diameter: 4mm - max motor diameter: 20.5mm - max motor length: 87mm - Recommended motor class: C or D class - max parachute length (folded): 99mm - inside diameter for parachute: 22mm to 14mm (cone shape) - max parachute volume: 25.62 cm³ - stability: 1.9 cal - apogee: 290m (using 20Ns engine) Assembly tips:

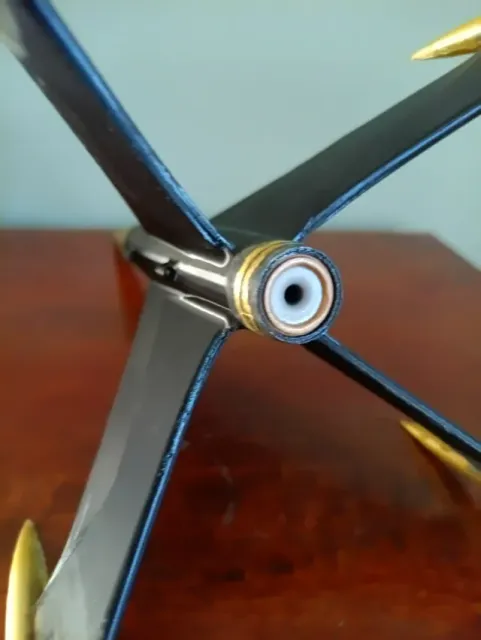

- Use tape for a snug fit of the motor - Use an elastic material for the shock cord - Use a thin metal wire to route the cord  design : based on Sci-fi illustration by Edward Valigursky

- Choose nose cone option one for strength - Choose nose cone option two for easy installation

nose cone option 1 nose cone option 2

Printable on the A1 mini
