Sovol SV08 Max PTFE Tube Inlet Gasket

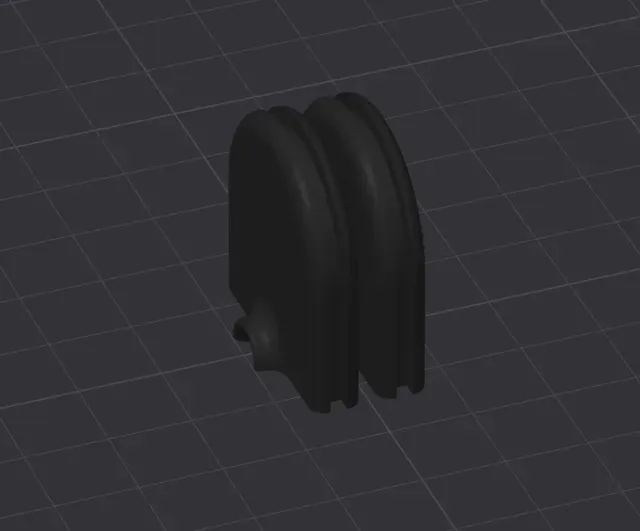

Sovol SV08 Max Top PTFE Inlet Gasket (95A TPU)

Description:

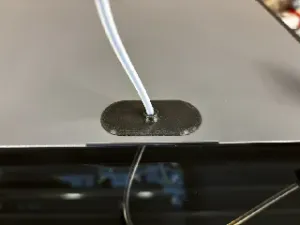

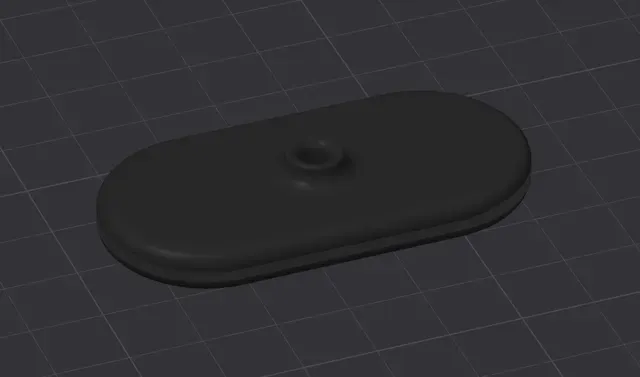

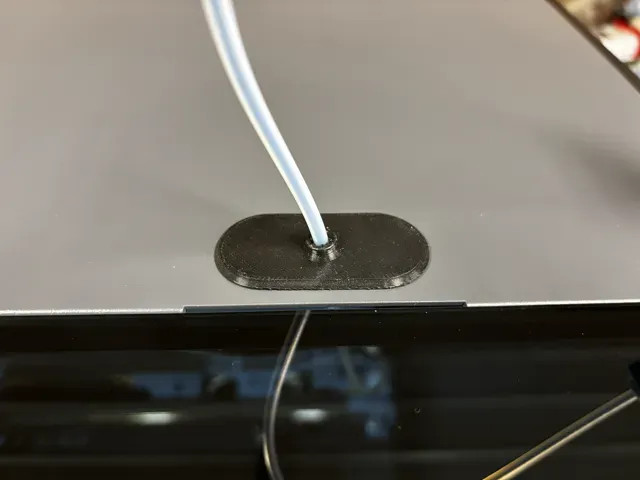

Upgrade your Sovol SV08 Max with this custom PTFE inlet gasket, designed in Fusion 360 for a perfect fit. Made from durable 95A TPU, this flexible gasket seals the 55mm x 25mm opening at the top of the printer where the PTFE tube enters the chamber. By closing this gap, you can fully enclose the chamber, improving heat retention and making you one step closer to enabling stable high-temperature printing for advanced materials.

Key Features:

- Material: 95A TPU for flexibility and resilience - Dimensions: Fits the 55mm x 25mm top opening - Function: Seals the chamber for better thermal performance - Compatibility: Sovol SV08 Max - Design Intent: Supports chamber heating and prevents heat loss - Options: Includes a split version for those who prefer no supports during printing - Future Models: I’ll be publishing additional gaskets to seal other openings on the Sovol SV08 Max. Check my profile for new designs! Recommended Print Settings:

- Material: TPU (95A recommended) - Layer Height: 0.2 mm - Infill: 10–20% - Sparce Infill Pattern: Gyroid - Walls: 2 walls - Supports: Required for full model; split version available for support-free printing - Print Speed: 20–30 mm/s for TPU - Bed Temp: 50–60°C - Nozzle Temp: 220–240°C Installation Guide:

- Remove the PTFE tube from the top inlet. - Place the gasket over the opening, aligning the PTFE pass-through hole. - Reinsert the PTFE tube through the gasket. - Ensure a snug fit for a fully sealed chamber. Why Use It? Maintaining a stable chamber temperature is critical for advanced materials and high-quality prints. This gasket helps eliminate unwanted airflow, ensuring your Sovol SV08 Max performs at its best.
