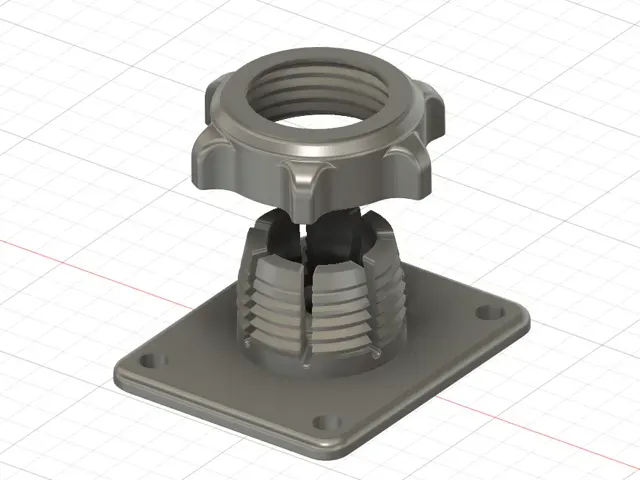

17mm Ball Mount Adapter Socket, AMPS 30x38mm

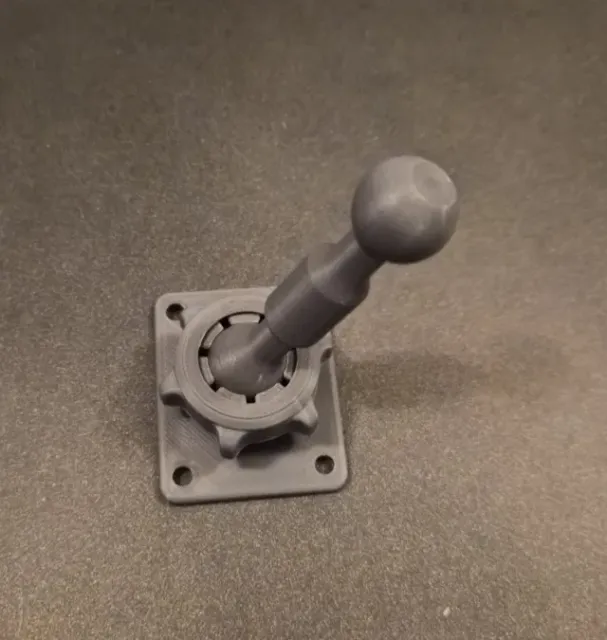

17mm Ball Mount Adapter Socket, AMPS 30x38mm — Фото 2 из 4

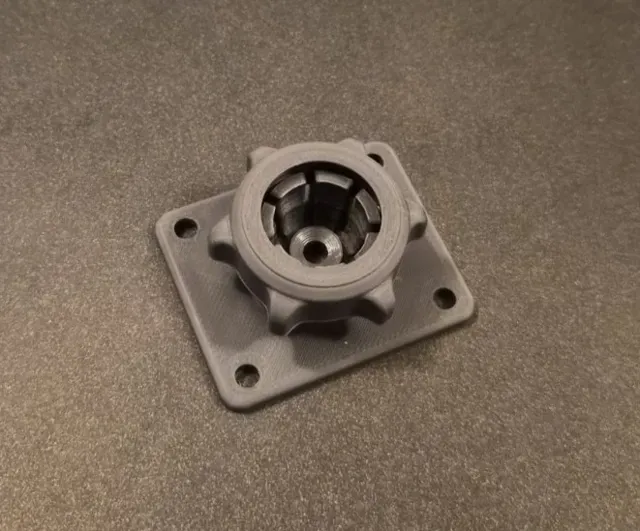

17mm Ball Mount Adapter Socket, AMPS 30x38mm — Фото 3 из 4
17mm Ball Mount Adapter Socket, AMPS 30x38mm — Фото 4 из 4
3D-модель · MakerWorld

17mm Ball Mount Adapter Socket, AMPS 30x38mm

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MF
  • 1 569 Лайки
  • 3 534 Загрузки
  • 2 143 Напечатали
  • 5 132 В подборках
  • 32 Бусты
  • 117 Комментарии
  • 0 Просмотры

Автор:chronicity

Опубликована

Скачать на MakerWorld

Описание

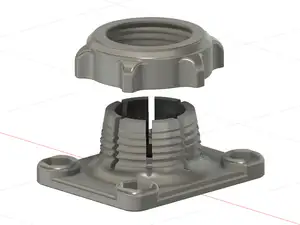

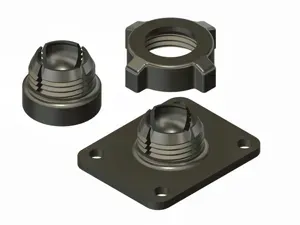

This is a 17 mm socket-style mount built on the AMPS 30 × 38 mm bolt pattern. Many mobile-electronics accessories—phone mounts, GPS units, camera brackets, small displays, etc.—use the 17 mm ball/socket standard along with the AMPS mounting standard.  Mounting systems using 17mm ball mounts include various ProClip/Brodit-style components, Garmin mounts, RAM mounts, Bulletpoint systems, Scosche mounts, and others.  There are also various available 17mm ball/socket mounts that work with Magsafe.

You can mate my 17mm ball adapter with this socket adapter to form a swivel mount between two AMPS compatible components, such as a bracket and a phone holder.

Also see:

20mm Ball Mount Adapter Socket

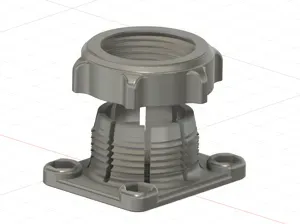

1" RAM Ball Mount Adapter Socket

See my   Vehicle Mounting Parts Collection for additional related components.

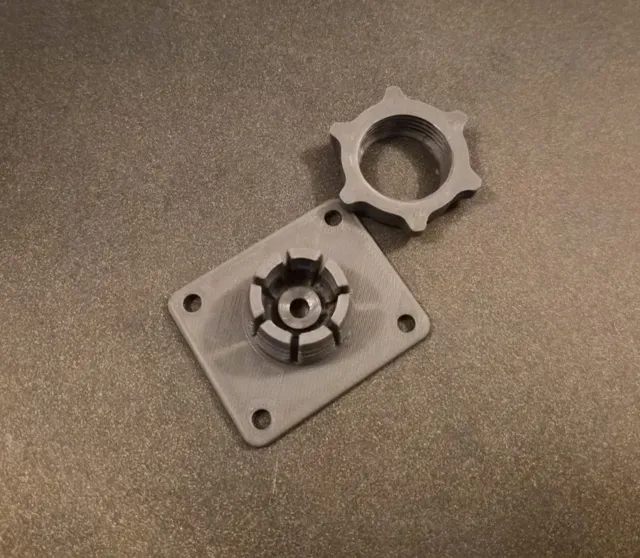

The print profile has a version with nut insets/traps (not shown in the pictures) and another version without nut insets/traps (pictured).  I have not needed supports.

Руководства и профили печати

Профили печати и шаги

0.12mm layer, 5 walls, 50% infill

30x18mm mount plate I replaced the plate to fit my Chinese car-play module, which has mount size approximately 30x18mm but very weird original mount.

anker prime socket AMPS petg reduced socket size for much smaller anker prime ball socket. increase thickness of AMPS plate. i printed in petg plan to print in pa
