External Wall Vent Grille Exhaust Fan 4 duct size

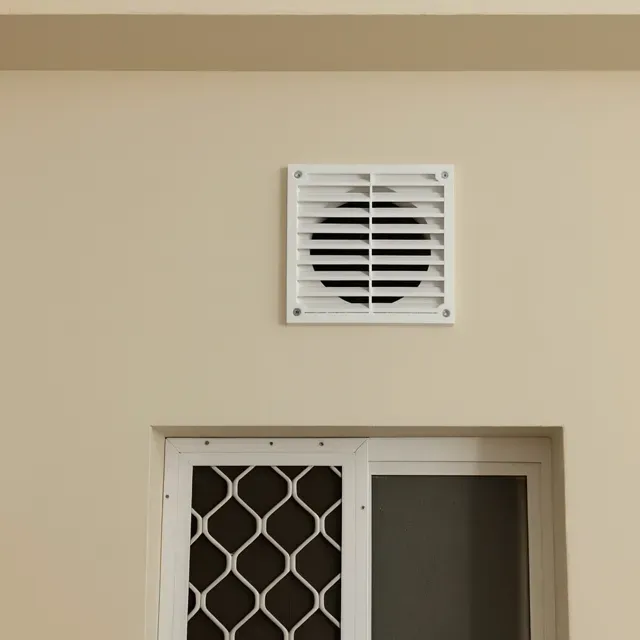

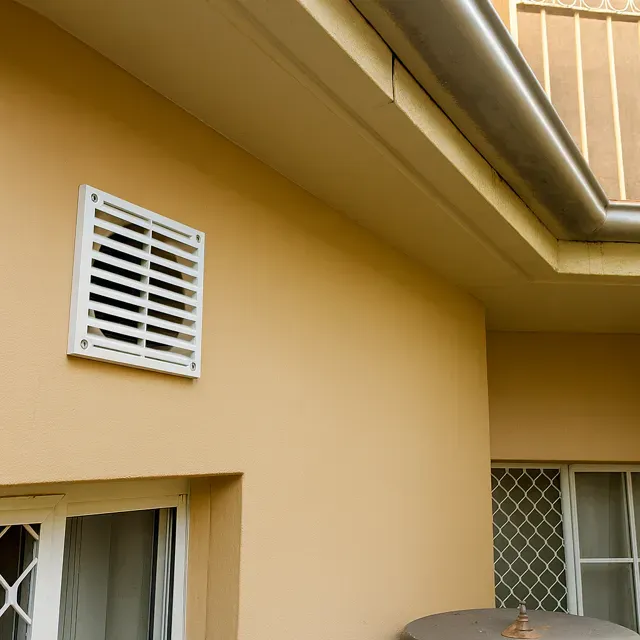

External Wall Vent with Angled Louvres

Designed for efficient airflow and weather protection, this external wall vent is ideal for use with exhaust fans in kitchens, bathrooms, and utility spaces. It features a robust, construction and angled louvres that help deflect rain and debris while allowing free air passage. •     Duct Compatibility: Fits standard 100mm (4"), 125mm (5"), 150mm (6") and 200mm (8")  round ducting. •     Louvre Design: Fixed angled louvres for effective weather shielding and airflow •     Material: Durable plastic like ABS or ASA, suitable for outdoor installation •     Mounting: Surface-mount flange with pre-drilled holes for secure wall attachment •     Application: Suitable for domestic and light commercial exhaust systems

3 Sizes to choose from:

-  Size:1 - 100mm Duct (4 inch duct), 131mm x 131mm Fascia

-  Size:2 - 125mm Duct (5 inch duct), 164mm x 164mm Fascia

-  Size:3 - 150mm Duct (6 inch duct), 195mm x 195mm Fascia

-  Size:4 - 200mm Duct (8 inch duct), 262mm x 262mm Fascia

Boost Me Please support me for more great models like this one BENEFITS:

- No Brims - Designed for FDM Printing - Free to Download!

TIPS:

- Glue stick can help condition the print bed for proper adhesion/release and is recommended. - ASA filament would be the best choice filament for this item. TESTED PRINT DETAILS:

- Glue Stick: Yes (without is at your own risk) - Support: Enabled - Walls: 2 - Brims: No - Nozzle: 0.4mm - Layer Height: 0.2mm - Layers 4 top, 5 bottom - Infill: 10% Gyroid
