Komplement & Hjalpa Ikea Hinge Drill Template

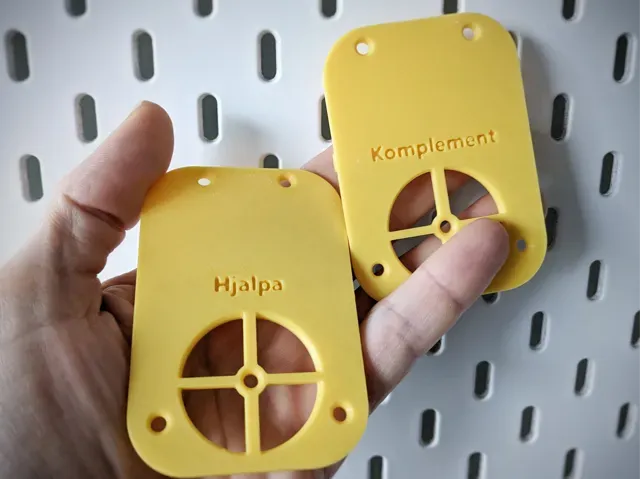

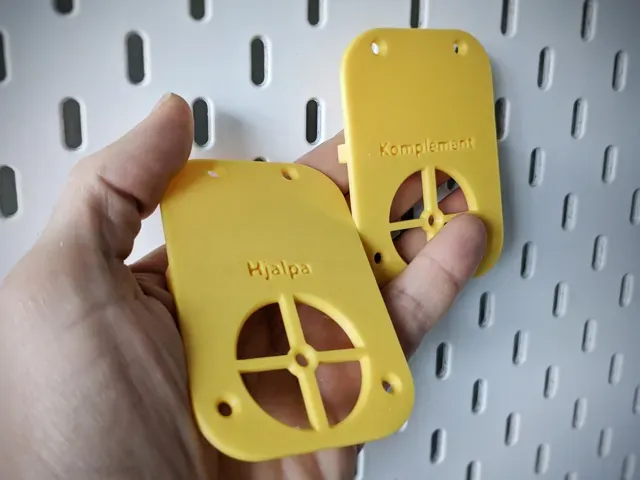

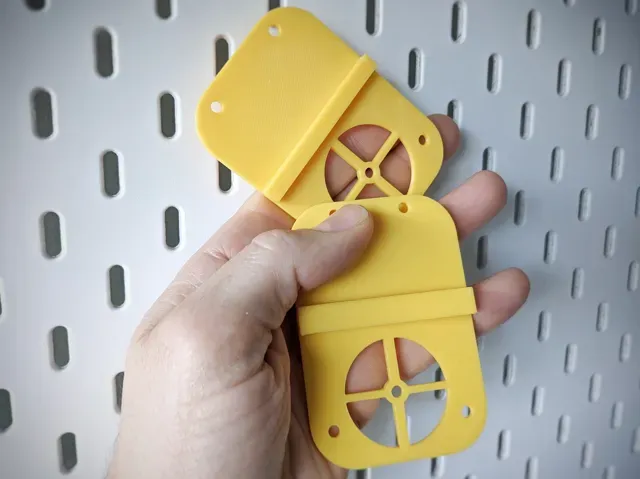

I designed these two drill templates to reuse a set of Komplement and Hjalpa hinges from Ikea in my own custom projects. If you have spare hinges lying around and want to integrate them into furniture or DIY builds, these templates will help you drill the mounting holes with consistent spacing and alignment.

Both templates are made for standard 19 mm boards/panels. The concealed hinge cup requires a 35 mm drill bit. The guides ensure accurate positioning of both the hinge cup and the mounting screw holes, making the installation process quick and repeatable.

These templates are compact, easy to use, and a helpful addition for anyone working with Ikea Komplement or Hjalpa hinges in custom cabinetry or other constructions.

Happy printing! I’m always open to comments, feedback, and ideas, feel free to share any suggestions for improving the model. Let me know how it works for you, and don’t forget to check out my other designs in the Ikea Skadis collection !
