Full Travel Chess Set - Folding Board Box w/ Latch

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
уточняйте на площадке
Условия задаёт автор — проверьте их на странице модели, прежде чем печатать на продажу.
Форматы
3MFSTL
  • 52 Лайки
  • 189 Загрузки
  • 62 Напечатали
  • 185 В подборках
  • 6 Бусты
  • 13 Комментарии
  • 0 Просмотры

Автор:LickCarlmore: No-AI Models

Опубликована

Скачать на MakerWorld

Описание

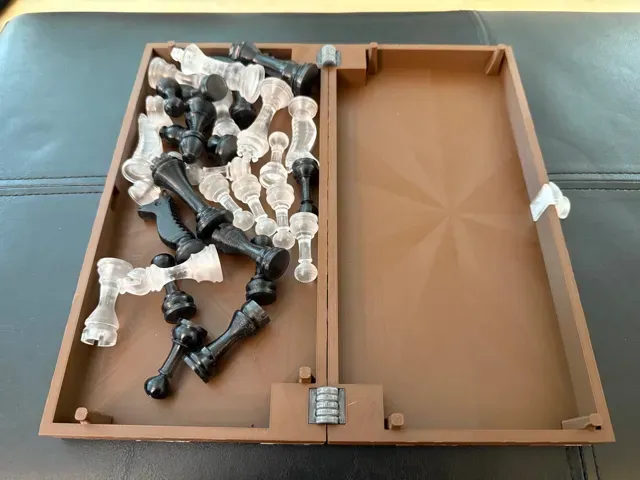

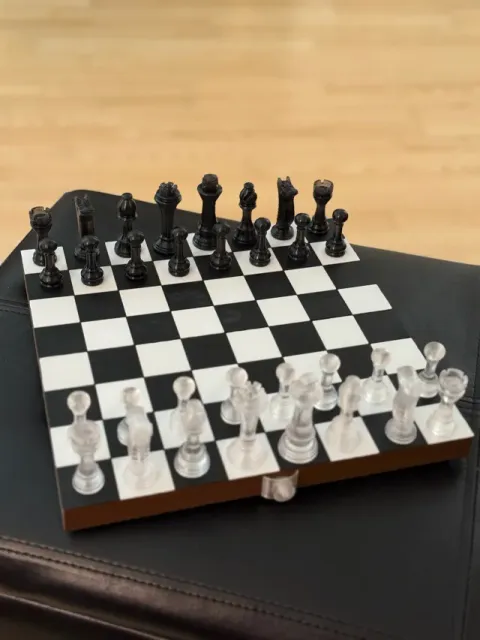

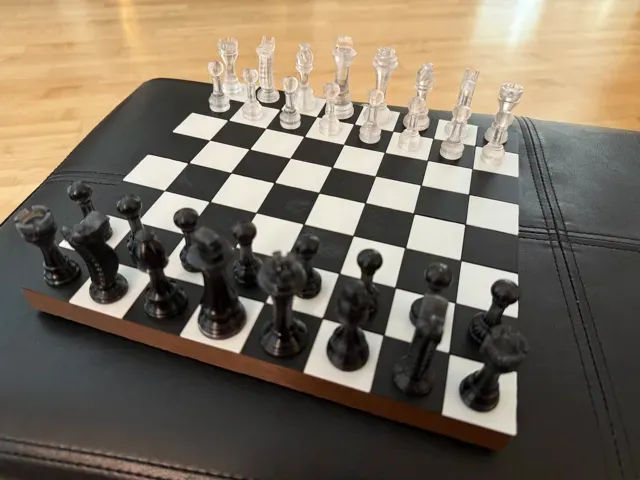

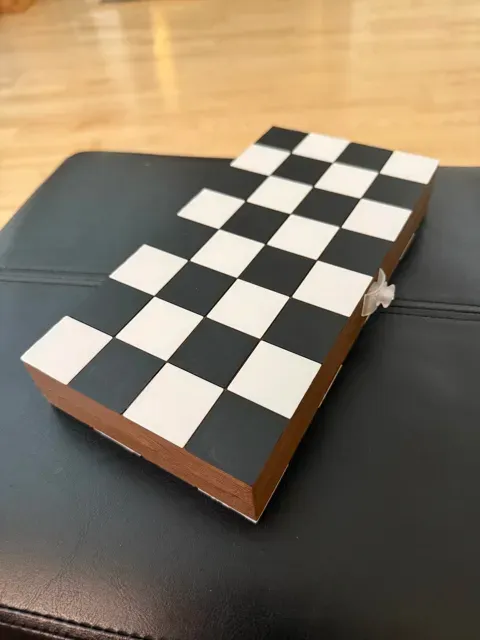

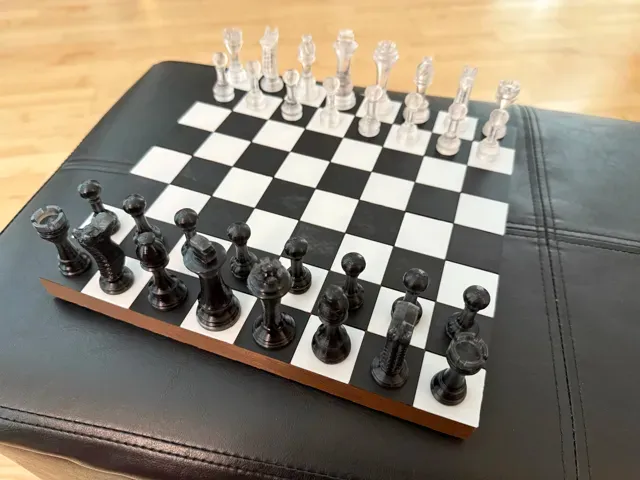

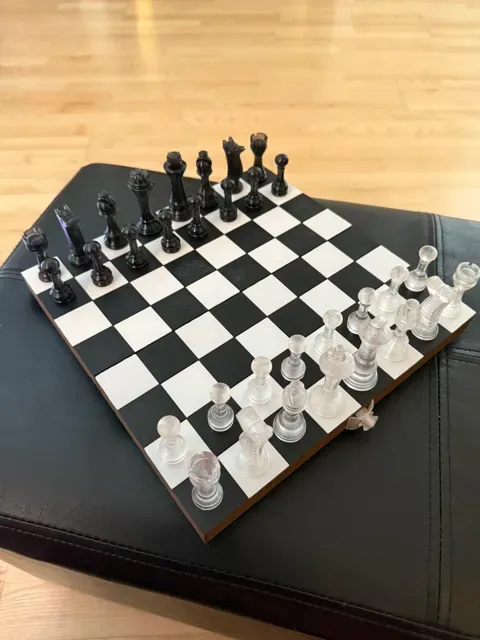

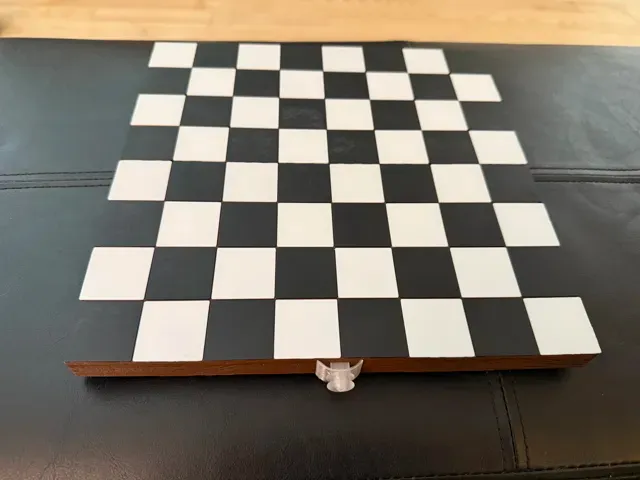

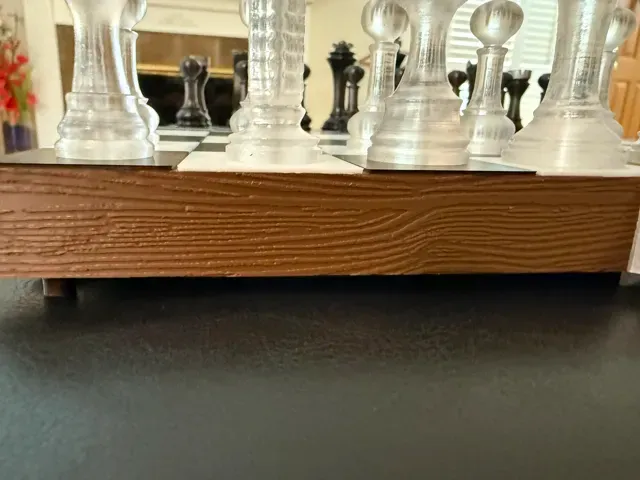

This elegant travel chess set comes complete with standard Staunton-style pieces that are stored in the foldable board. The chessboard/box has an elegant wood grain pattern etched into the sides, and a latch mechanism to keep the foldable board closed securely for storage of all the game pieces.

AMS is recommended but not required, however you will need to color/paint/sticker the chess board tiles yourself if not using an AMS.

100% 3D printed, and no tools are necessary for the very simple & quick assembly.

No supports are needed for the print, with only the small latch spring requiring a brim.

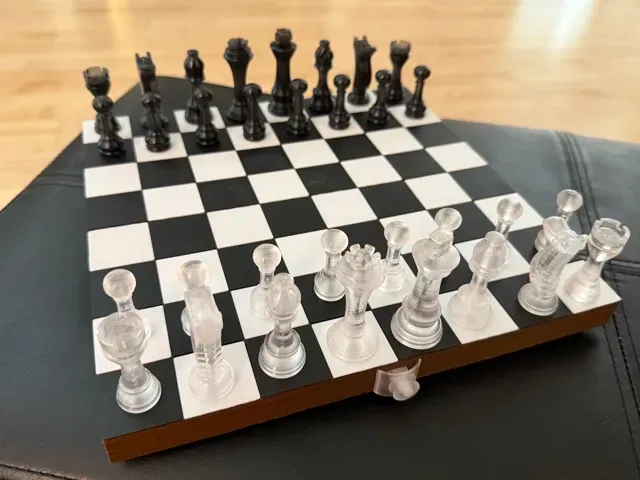

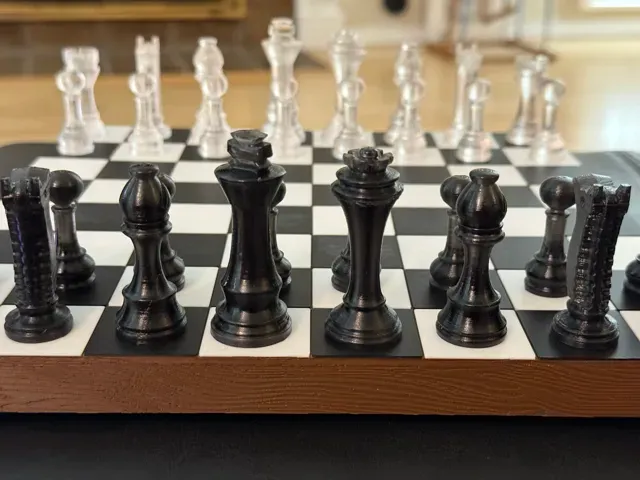

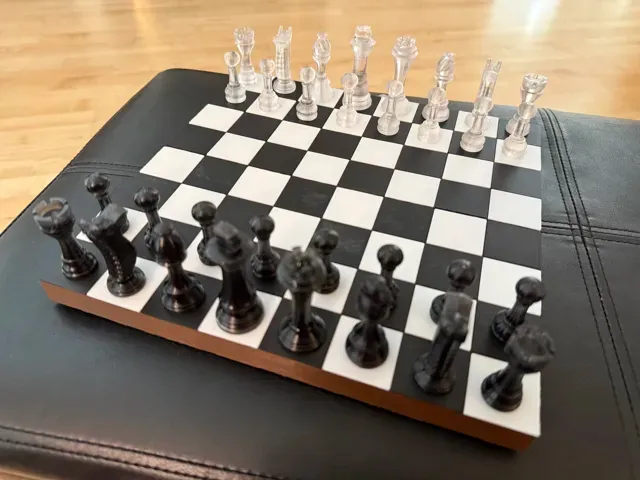

The latch pieces print with the White pieces on Plate 4, and the hinges print with the Black pieces on Plate 3 (note that the pieces shown were printed with the Translucent PETG profile, included as a separate print profile on this model--but everything is otherwise identical).

ASSEMBLY INSTRUCTIONS

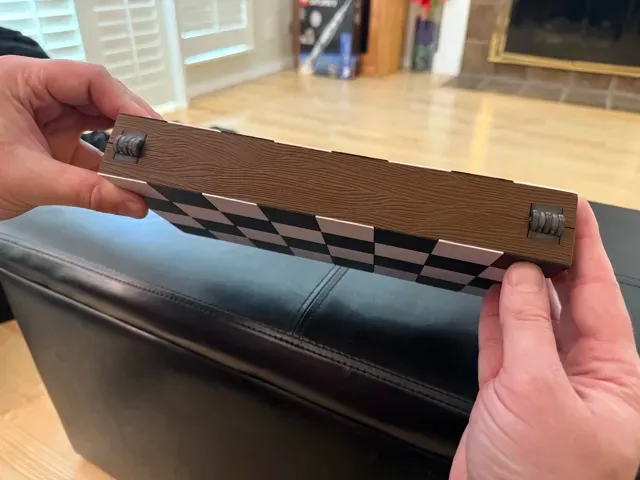

For the folding game board , insert the hinges into one side of the board first as shown, then clip both halves together and press firmly together.

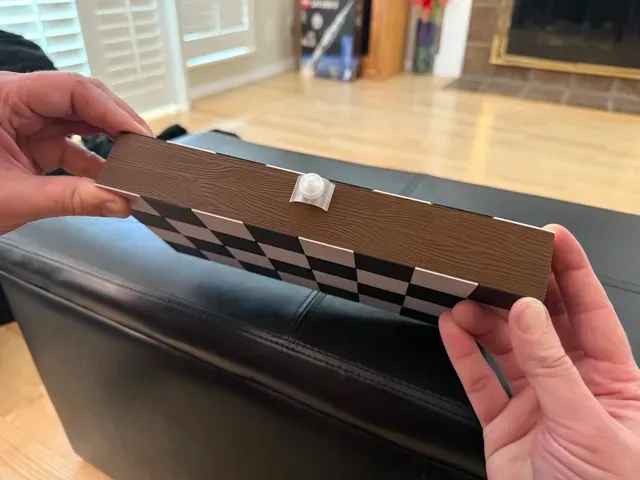

For the latch , place the latch part through the triangular cutout inside the box, then place the curved spring piece over the protruding part outside the box, and finally screw the knob on firmly from the outside as well.

Руководства и профили печати

Профили печати и шаги

A1 Mini compatible -- Chessboard/box + pieces This version has been scaled and tested to work on the A1 mini! It is otherwise identical to the primary print profile. The cover photo of this print profile shows the difference in size of this print profile vs the original print profile for the model.

This print profile includes the entire chessboard, all pieces (black and white), and the hinges and latch components across four plates.

No supports are needed, with only a brim required for the latch spring part on Plate 4.

Recommended to print with a 0.08mm layer height and with a brown filament for the game board to enhance the wood grain appearance, and black and white for the pieces.

0.08mm layer, 2 walls, 15% infill

Full chess set - Board/box + game pieces This includes the entire chessboard, all pieces (black and white), and the hinges and latch components across four plates.

No supports are needed, with only a brim required for the latch spring part on Plate 4.

Recommended to print with a 0.08mm layer height and with a brown filament for the game board to enhance the wood grain appearance, and black and white for the pieces.

0.08mm layer, 2 walls, 15% infill

Translucent PETG, Game Pieces ONLY This does NOT include the game board, please print the first two plates from the primary print profile to get the game board/container box.

For best results, update only the settings for filaments 1 and 2 (which print the game pieces), but do not change the settings for filaments 3 and 4 away from the standard settings (filament profiles 3 and 4 are for the hinges and latch pieces, which have finer tolerances and should not be printed with the same translucency settings as the game pieces).

The settings for filaments 1 and 2 should be updated according to the following Bambu wiki article: https://wiki.bambulab.com/en/knowledge-sharing/transparent-petg

All other settings should be kept as they are. Pieces are set to print by object (with some pieces printing in pairs) to improve the translucency.

This is confirmed to work fantastically with Bambu translucent PETG filaments. Happy printing!
