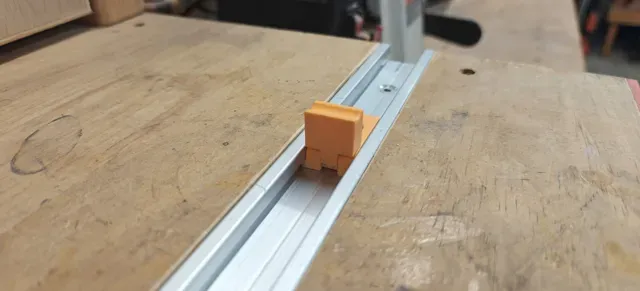

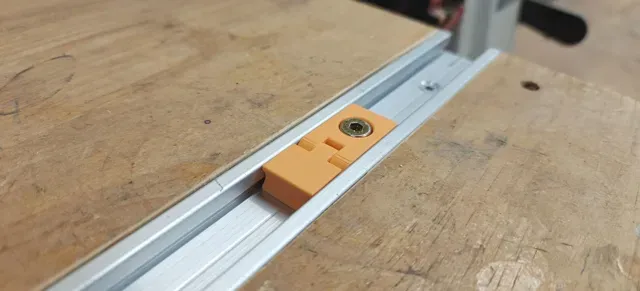

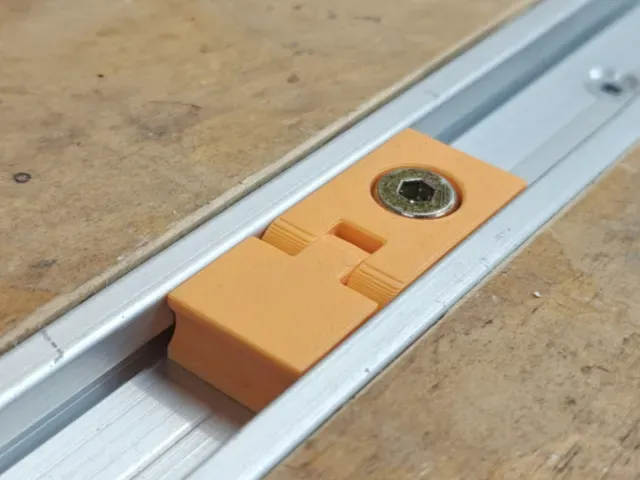

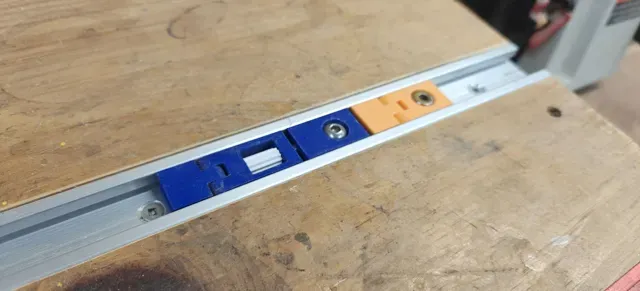

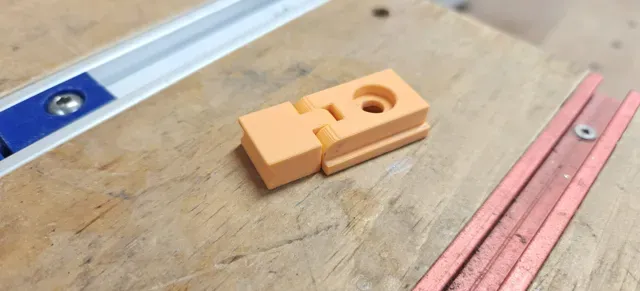

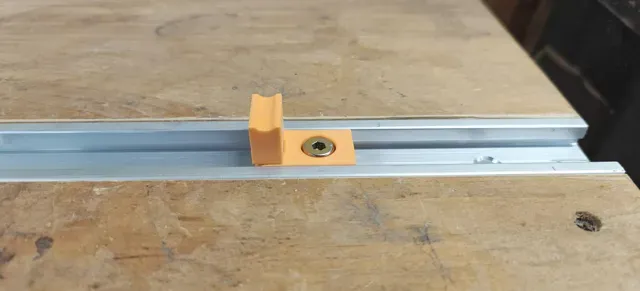

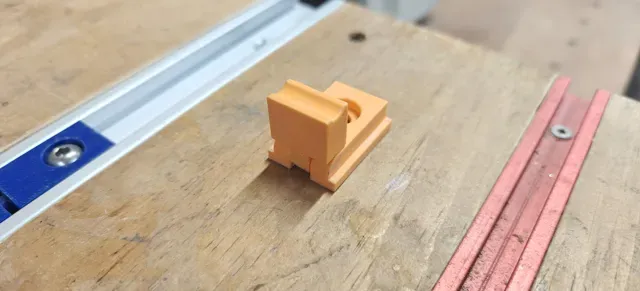

19mm T-Track Flip Stop

A flush T-Track insert for 19mm x 9.5mm (¾" x 3/8") T-Track. This version is print in place. After printing, you will have to break free the hinge, this should be rather easy if printed out of PLA or PETG.

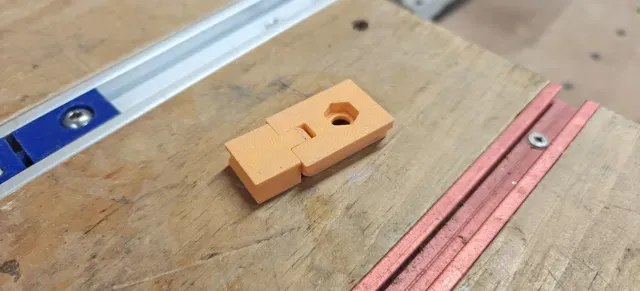

You will need a M6x1 socket cap bolt or button head bolt that is approximately 9.5mm in length (or the length needed to accommodate your T-Track) with a head diameter no larger than 12mm by 3 mm and one M6 nut. I would recommend rounding the bottom of the locking bolt to minimize damage to the track. The nut needs to be 10mm from flat to flat and no more than 4 mm thick.

This little stop can be very useful at a mitre station, or router table, even on some mitre gauges for the table saw.

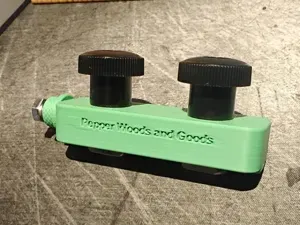

Here is my model of the micro-adjustable version:

https://makerworld.com/en/models/995058-19mm-3-4-t-track-micro-adjustable-stop-block#profileId-1076118
