Siemens EQ.6 hand

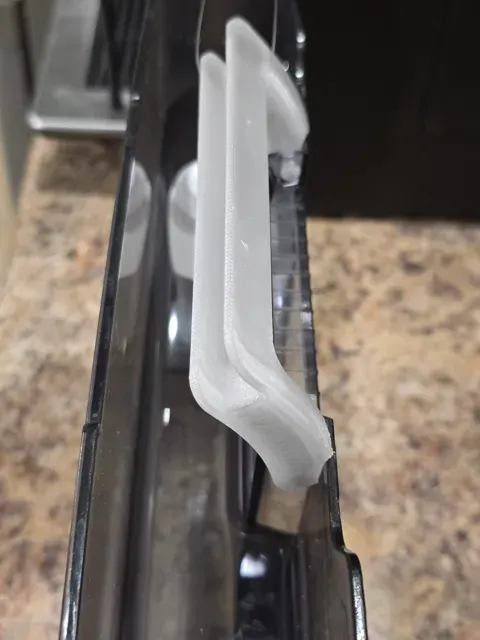

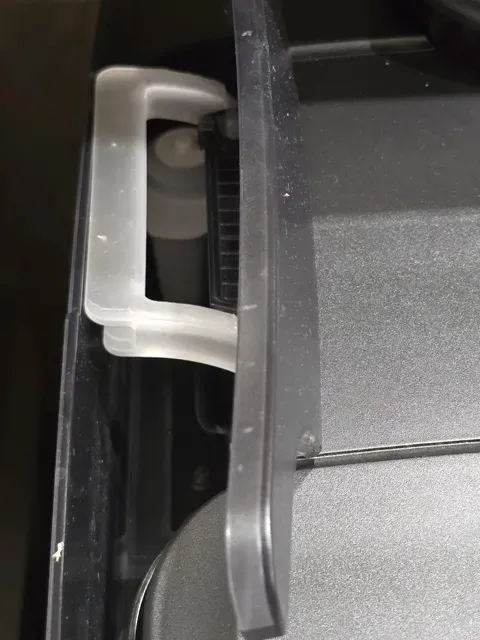

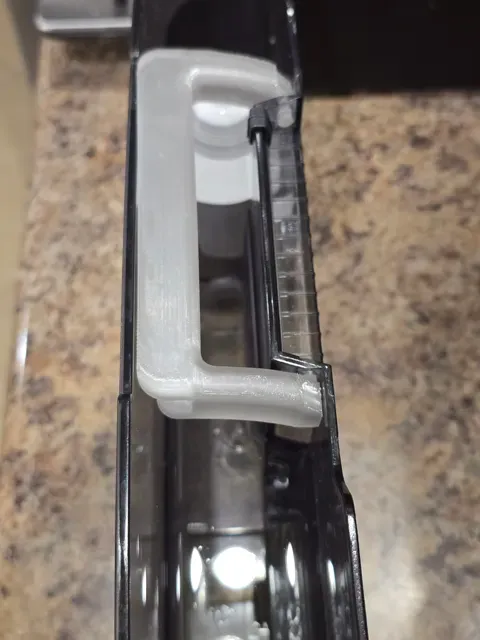

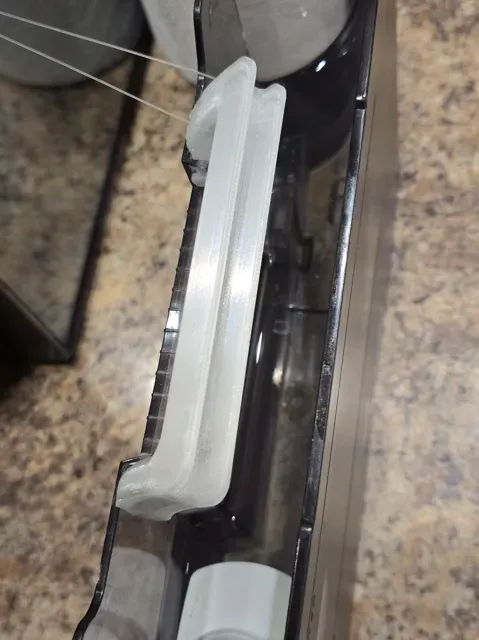

Water Tank Handle – Siemens EQ.6 A precisely reproduced handle for the water tank of Siemens EQ.6 coffee machines, created based on a high-accuracy 3D scan of the original part . The model has been additionally reinforced by filling the side walls of the handle , providing greater durability than the factory component , while maintaining full compatibility and ergonomics.

The part is manufactured using 3D printing technology , ensuring high dimensional accuracy and solid performance. It is recommended to print the model using two materials that do not bond with each other , which allows for clean separation and excellent surface quality:

- PETG – as the main material, offering strength and moisture resistance, - PLA – as the material for the supports raft - , enabling easy removal after printing. Due to the high stiffness of the part , please exercise special care during installation to avoid damaging the mounting points or the water tank itself.

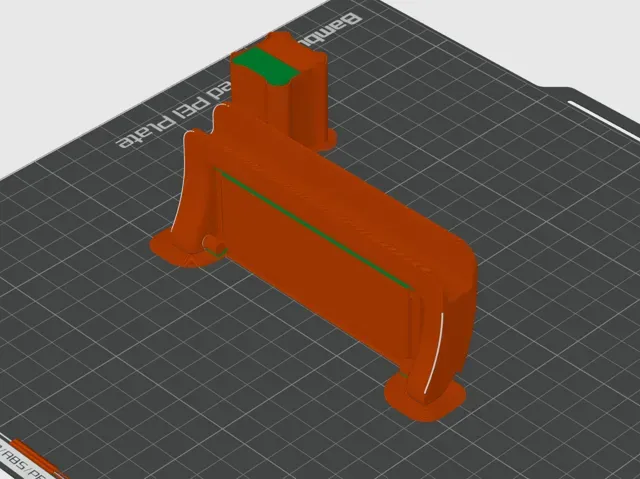

Included Print Configuration Files (Profiles):

1. Dual-material configuration (recommended):

- Materials: PETG (main model) + PLA (supports raft) - Purpose: achieving perfect surfaces in overhang areas and preventing distortions - Settings: Z-distance of supports from the model = 0 - Advantages: cleanest support removal and highest surface quality 2. Single-material configuration (PETG only):

- Materials: PETG as both model and support material - Settings: Z-distance of supports from the model = 0.25 - Notes: may result in slightly lower quality on overhangs , but is suitable for printers without multi-material capabilities
