USB-C PD to XT60 Voltage trigger adapter box.

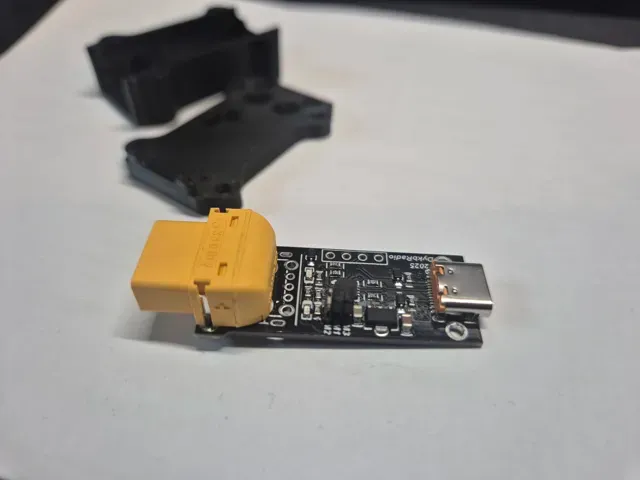

Boost Me If You like this case then please support me to motivate make more projects like this. Thank You!   This is box for USB-C to XT60 voltage trigger board that I bought in aliexpress ( link1 or link2 ).

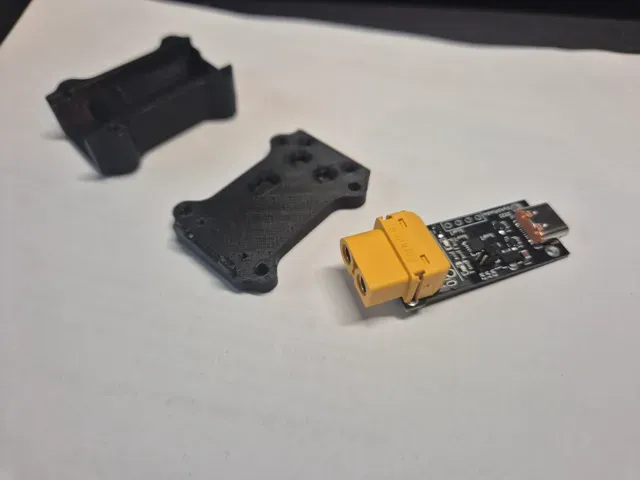

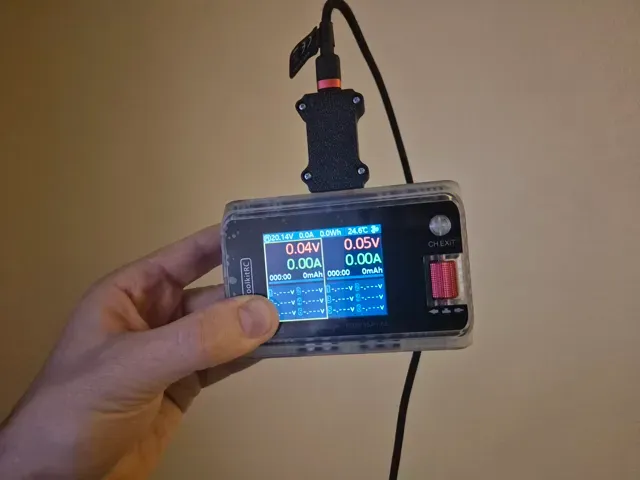

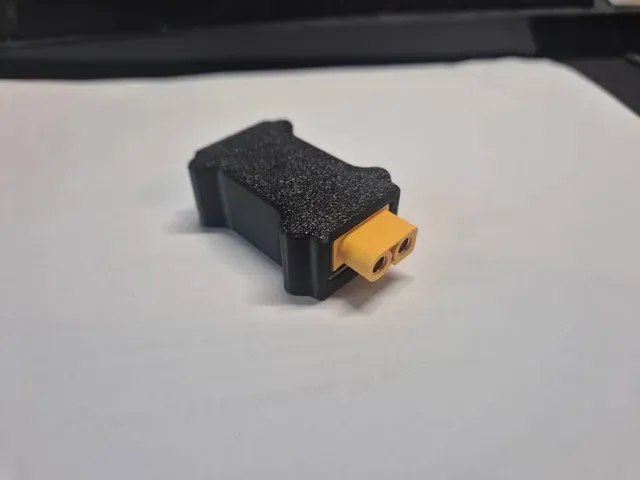

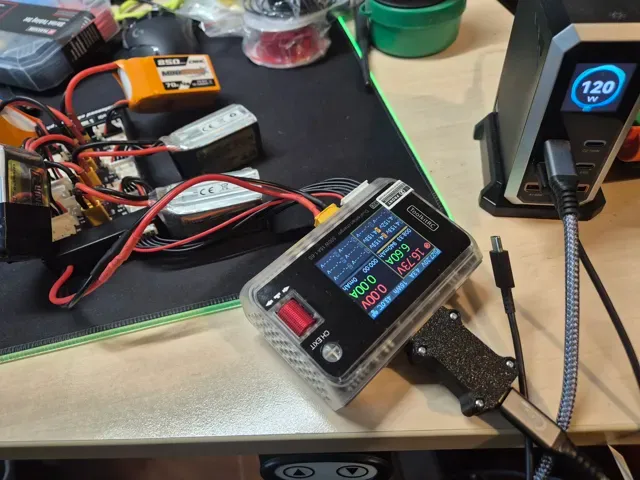

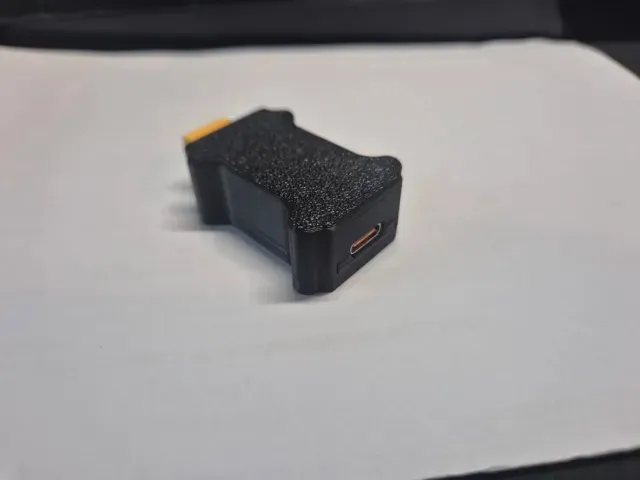

They say that it can handle 140w - I tested with my charger which can provide 120w and it worked flawlessly - charged batteries without problems. But keep in mind that You need a good USB cable that can handle that power to get 28V. I had some cables that was rated 240w but I could get only 20V from charger and not 28V.

This device did not heat up while using it as it works like a pass thru - it does not convert anything - just trigger a charger for set voltage level.

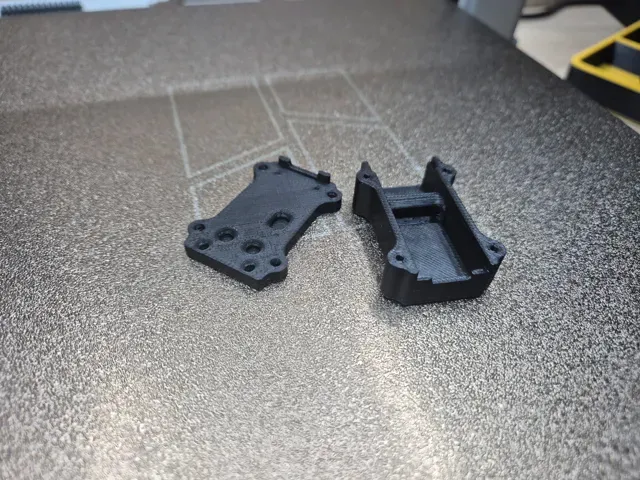

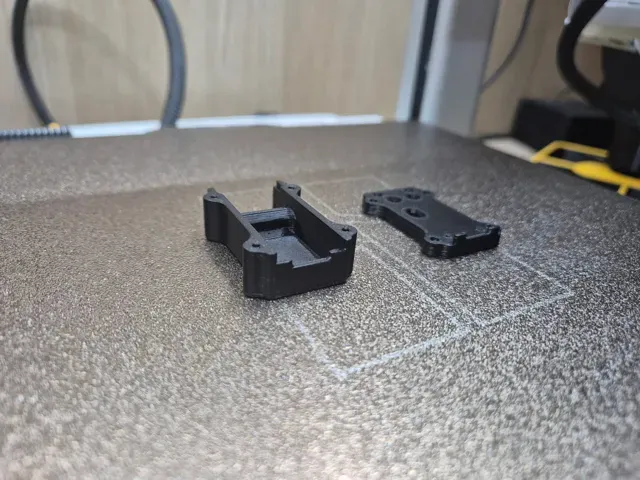

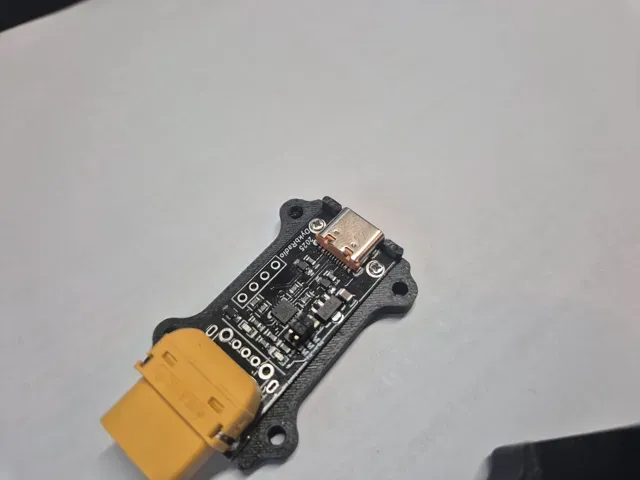

To fix a board to base I used two 1.6 x 4.8 mm (with head) self tapping screws. Hole is 1.5mm.

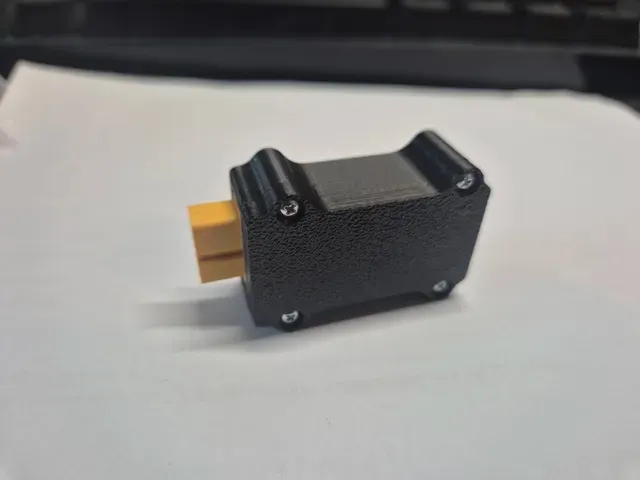

To screw together top and bottom I used 2.2 x 8 mm (with head) self tapping screws. Hole is 2mm.

Some information about this bord from store:

1. Support multiple fast charging protocols

PD3.1:5V, 9V, 12V, 15V, 20V, 28V

Support PD protocol :5V, 9V, 12V, 15V, 20V

Support QC protocol :5V, 9V, 12V, 20V

Support Samsung AFC protocol :5V, 9V

Supports FCP protocol :5V, 9V, 12V

Supported protocols :PD2.0, PD3.0, PD3.1 QC2.0, QC3.0 QC4,QC5
