Low Profile CNC Clamps "Oops"

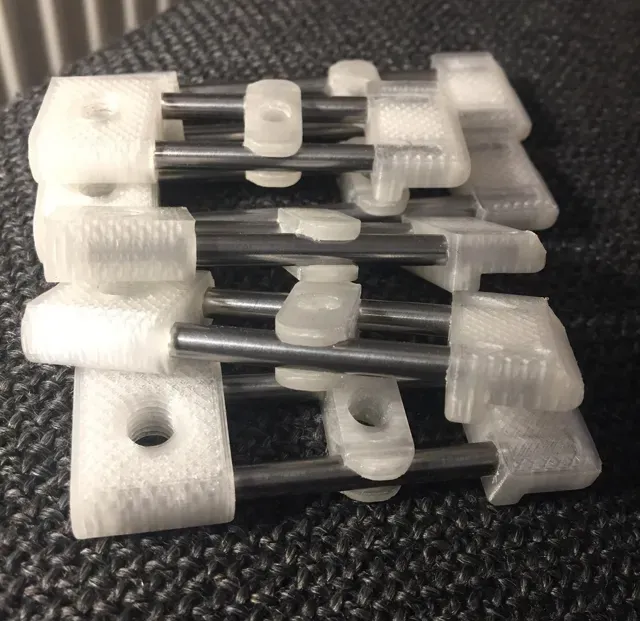

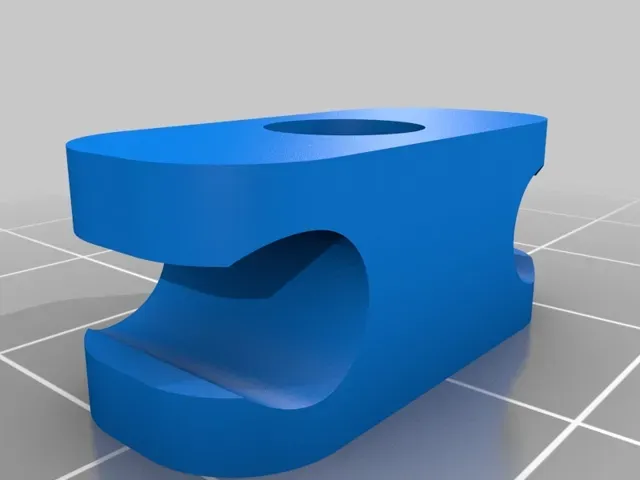

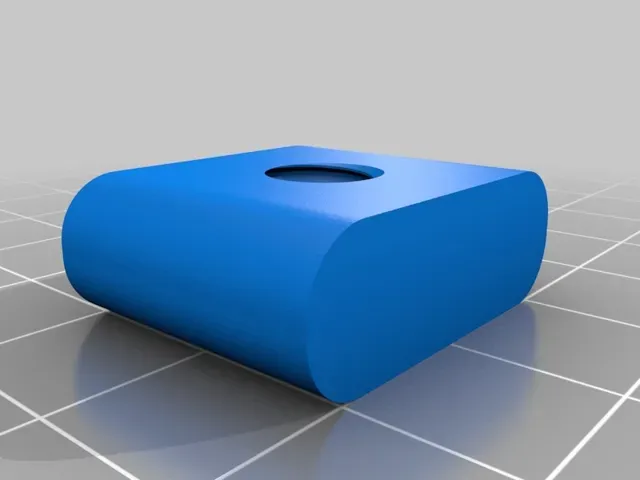

The clamps I have made are inspired by the "Oops Clamps". They are designed to be used with a threaded table to clamp down stock on your CNC.

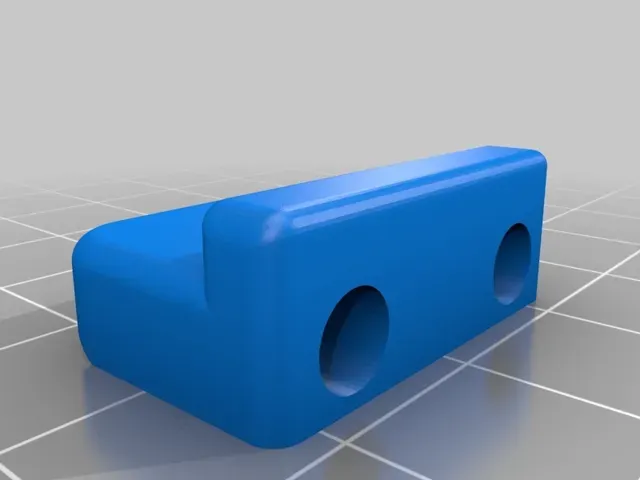

You can use the straight angle to unable your stock to slide underneath the clamps.

I have made the holes of the steel bars slightly undersized to be fit the bar tightly but you might check the accuracy you get out of your printer.

Print Settings

Rafts:

Doesn't Matter

Supports:

No

Resolution:

0,1

Infill:

50

Filament: PLA

Notes:

Additionally you will need for each clamp that you print :

- 2 x 5mm Steel bar (Aluminium is bending) - 1 x M8 Screw _ To level the clamp - 1 x M6 _ To fix the clamp on the wasteboard - 1 x M6 washer
