Window AC Adapter with Threaded 150mm Hose (Remix)

This model is a remix of the original “Window Adapter for Portable Air Conditioner” by Anton Kaiser , enhanced with internal threads designed for 150mm exhaust hoses .

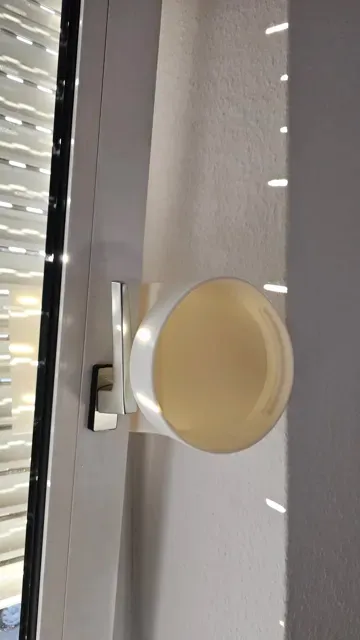

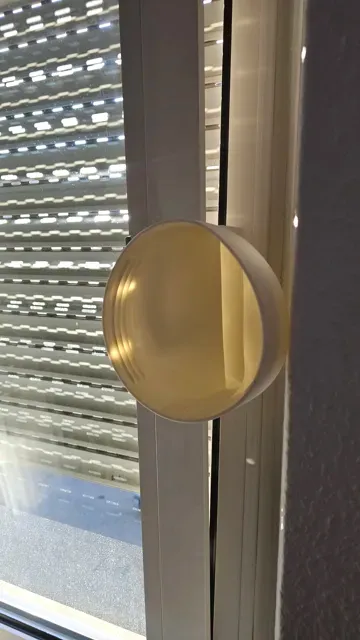

The main goal of this remix is to provide a more secure connection and better air sealing between the portable air conditioner hose and the window adapter. Thanks to the threaded interface, the hose can be screwed directly into the adapter , preventing it from slipping out due to vibration and significantly reducing hot air leaks.

The overall geometry remains compatible with the original design, while offering a more practical and reliable solution for portable air conditioners that use standard Ø150mm hoses .

🔹 Key Features

- ✅ Internal thread for 150mm AC exhaust hoses - ✅ Secure screw-in connection (no tape or extra adapters needed) - ✅ Improved air sealing and efficiency - ✅ Compatible with the original window adapter concept - ✅ Easy to print and assemble 🔹 Compatibility

- Portable air conditioner exhaust hoses: Ø150 mm - Window setups compatible with the original Anton Kaiser design 🔹 Print Recommendations

- Material: - ABS - ASA (recommended for better heat resistance) - Layer height: 0.2 mm - Infill: 15–25% - Perimeters: 2 or more - Supports: R equired - Print orientation: As provided, for best thread quality 🔹 Assembly

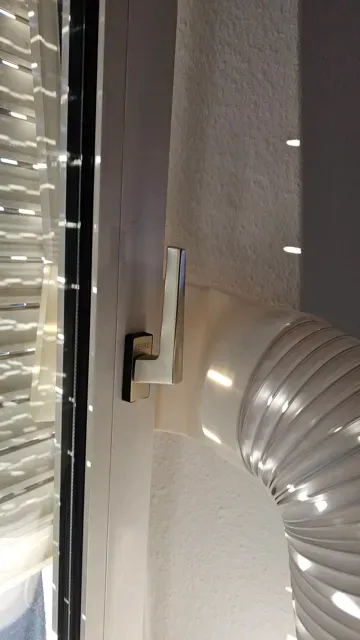

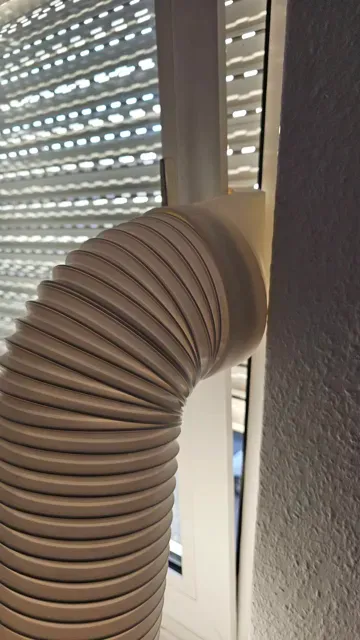

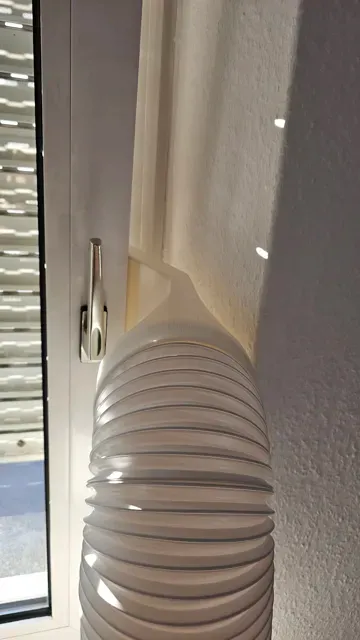

Simply screw the 150mm hose into the adapter by hand . Do not overtighten. For even better sealing against the window, optional foam tape or window sealing strips can be used.

🔹 Credits

Original model by Anton Kaiser (https://makerworld.com/pt/models/1708874-ac-window-adapter#profileId-1813006) This is a remix , shared in accordance with the original license.
