Cable Repair and Protect for Apple iPhone and Samsung [lightning+usbc]

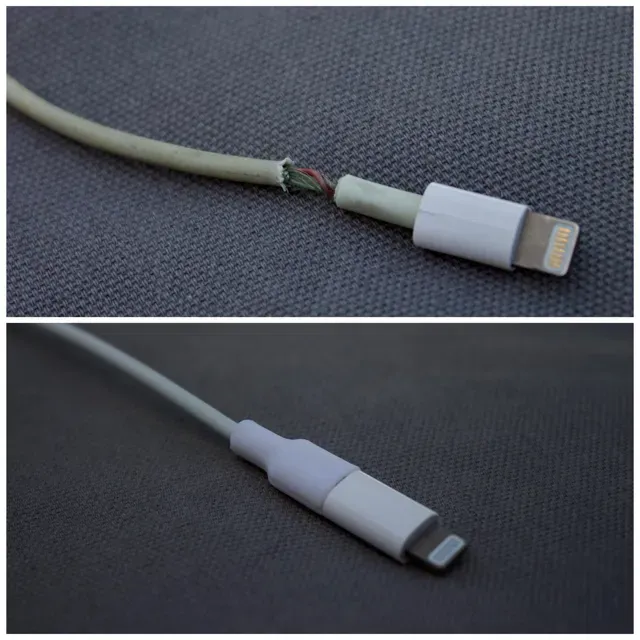

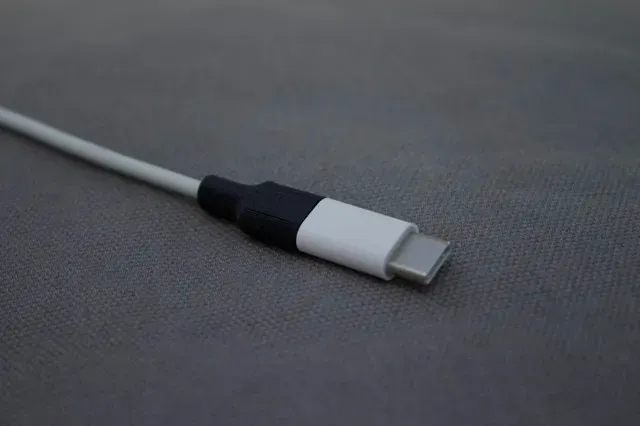

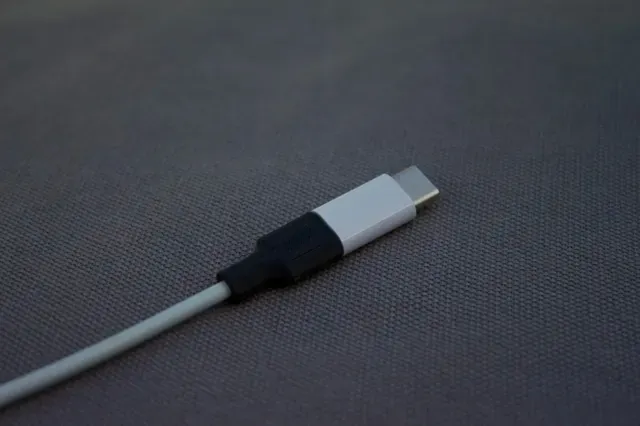

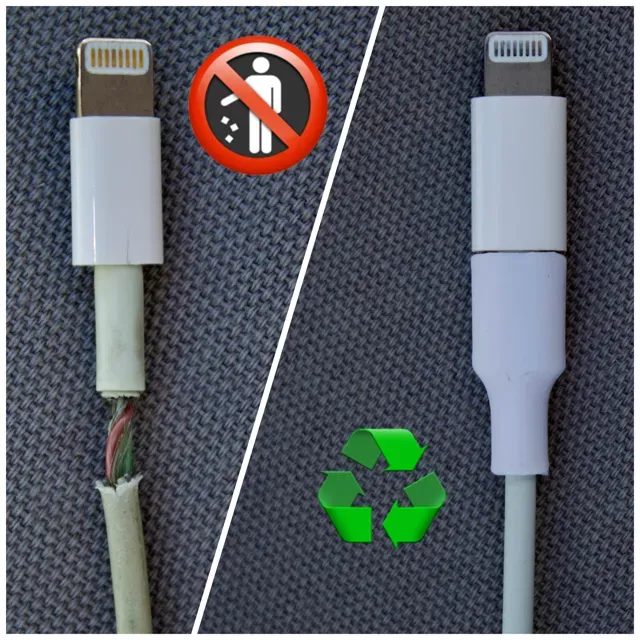

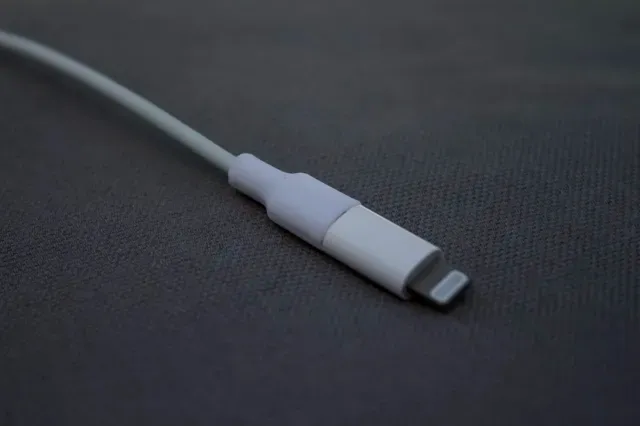

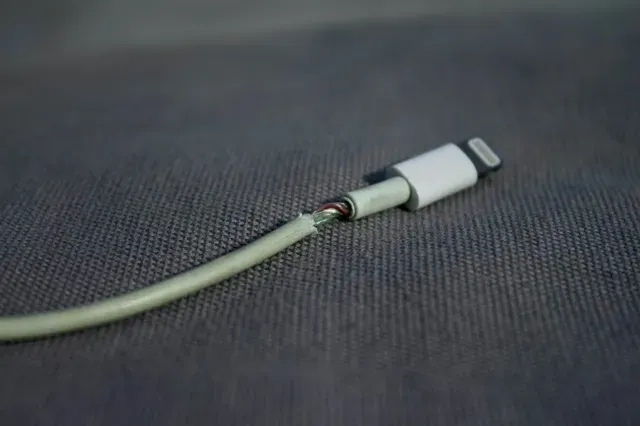

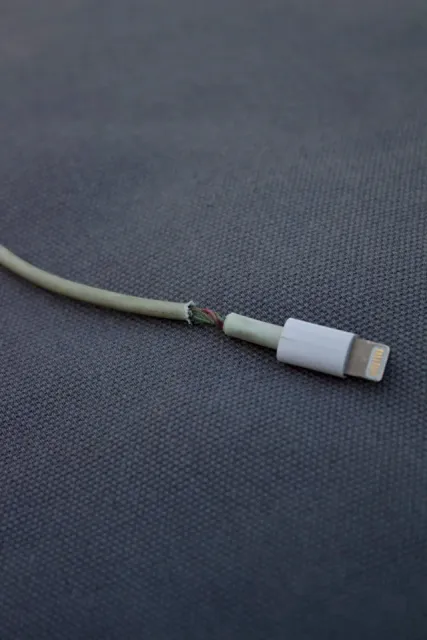

The charging cable always breaks at the same position, just right under the plug. You don't need to replace it, fix it with this easy print! This works for Apple USBC and lightning, as well as for samsung charging cables!

No glue or tape is needed.

/////////////////////////////////////// Newest Version: V2 /////////////////////////////////////////////

Changes V2:

- the two parts are easier to assemble - much more smoother outside Changes V1:

- New Samsung Adapter - adjusted the fit to be thighter - added the .ipt inventor files for editing - assemble instructions

How to repair the cable:

1) Carefully cut off the straggly ends of the broken cable, this will help to fit the Cable repair better.

2) Download the .3mf / .gcode file and print it. Suggested settings are listed above.

3) Make sure the guide rails are printed well. This will help to assemble it more easily.

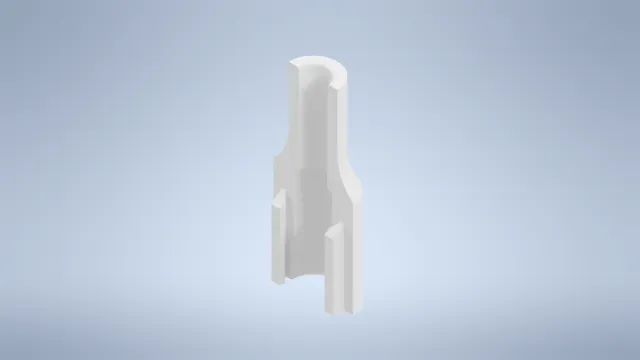

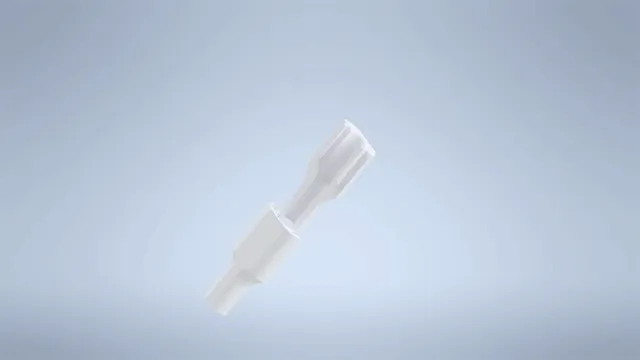

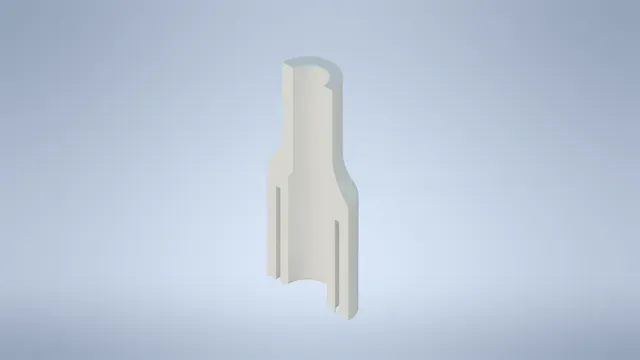

4) Put the two parts together.

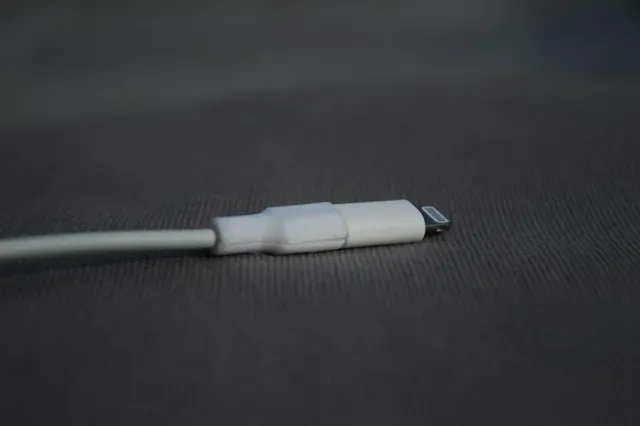

5) Enjoy your repaired cable!

Tipp: If there is too much friction add some lubricant or Vaseline to the guide rails. This will help. Make sure the parts are printed well, maybe work on the edges if needed.

Printer Information

I printed this with my Elegoo Neptune 4 with 0.12mm layer height (fine).

No supports needed.

Due to the fact that this is my first release, Im happy to review your feedback, comments and makes!

If you need any help, feel free to ask me!

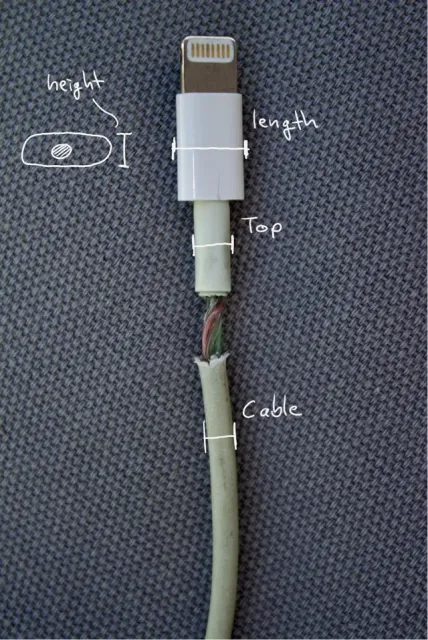

If your cable is slightly diffrent just send me the needed diameters, instructions can be found under photos.

Orginal Product is the USB-C to Lightning Cable (1 m) from Apple.

Dimensions:

Lightning part:

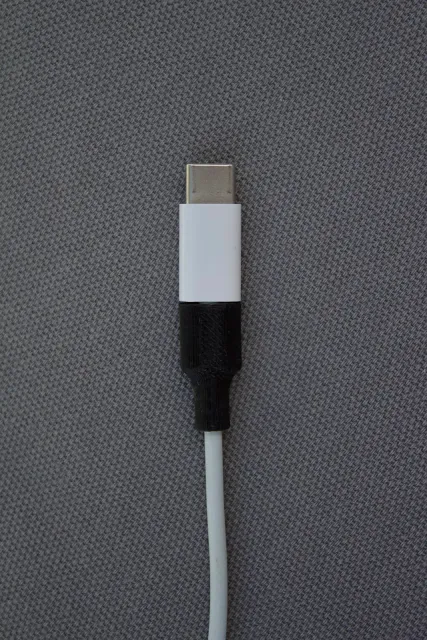

- Top: 4mm - Length: 9.1 mm - Cable: 3mm - Hight: 5.5 USBC part:

- Top: 4mm - Length: 10.3mm - Cable: 3mm - Hight: 5.5mm
