Circle Router Jig for Makita Trim Routers

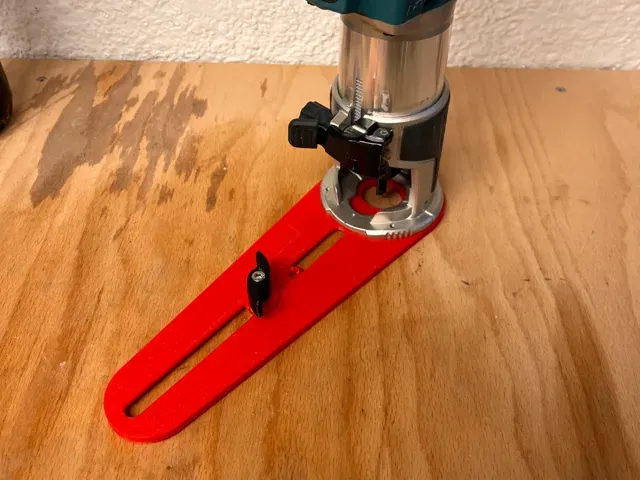

Boost Me If this model is useful to you, a boost is greatly appreciated and helps support future designs by Stauss Customs. Thank you! With this Remix it is possible to easily do circle routing in a stable and safe way

Key features:

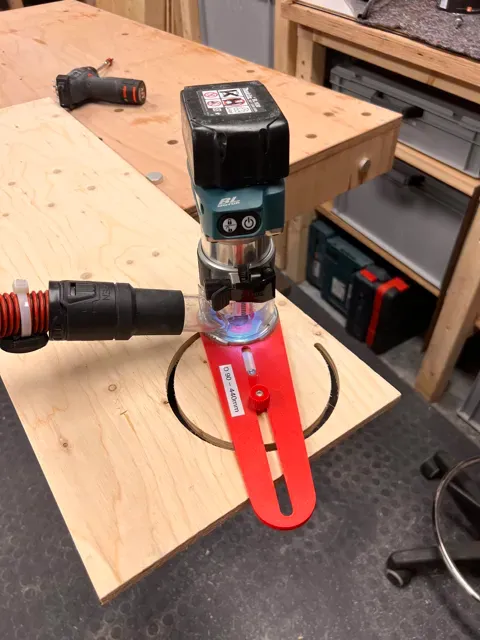

- easy to use - improved claming force for safety - diameter from 90-440mm (6mm router)

Compatibility:

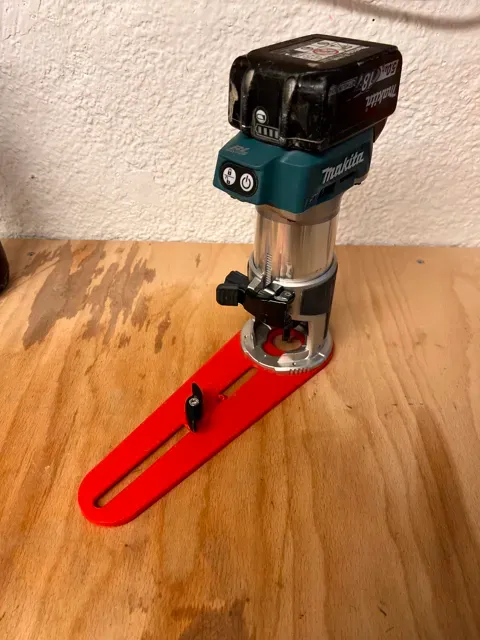

- designed for Makita DRT 50, RT0700, RT0702

Printing notes:

- Please use minimum PETG. ASA or ABS should also work well - the slider is due to testing fails vertically printed on purpose, because it then is the most rigid.

Assembly & usage: please note, that all fitting are designed quite, to ensure maximum stability under regular use. For the slider you may need to sand down the slider a bit.

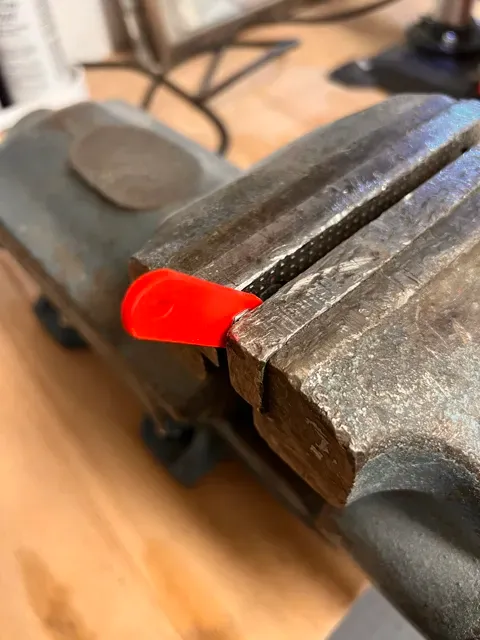

- For the assembly you will need - 2x M5 Nuts - 1x M5x20 - Press the first M5 nut into the slider. Preferably with a vice, but a screw and a hammer will also work but be gentle.

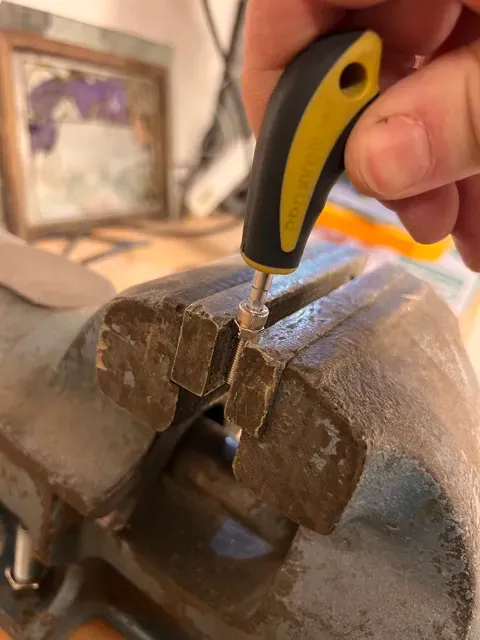

- Screw the second M5 nut over M5 screw and tighten them against to each other. Then press the screw into the wing srew.

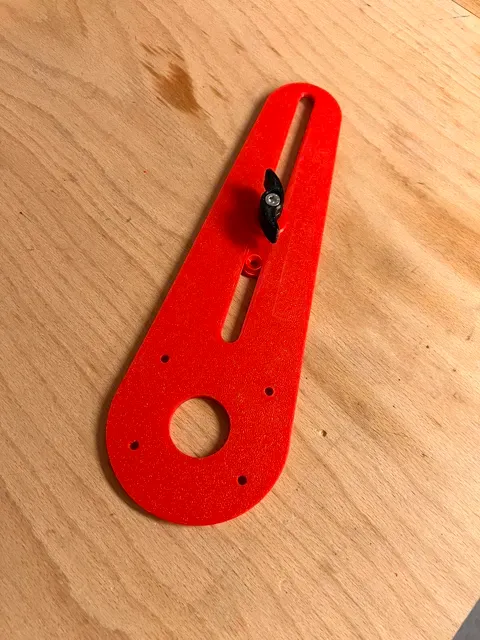

- Assemble all together.

Design notes / Remix info:

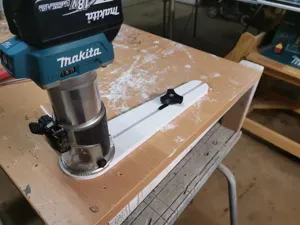

- Thanks to KASV for the original design
