Rainproof WisMesh Starter Kit Enclosures

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
3MFSTEP
  • 5 Лайки
  • 12 Загрузки
  • 3 Напечатали
  • 14 В подборках
  • 0 Бусты
  • 4 Комментарии
  • 0 Просмотры

Автор:beegee-rakwireless

Опубликована

Скачать на MakerWorld

Описание

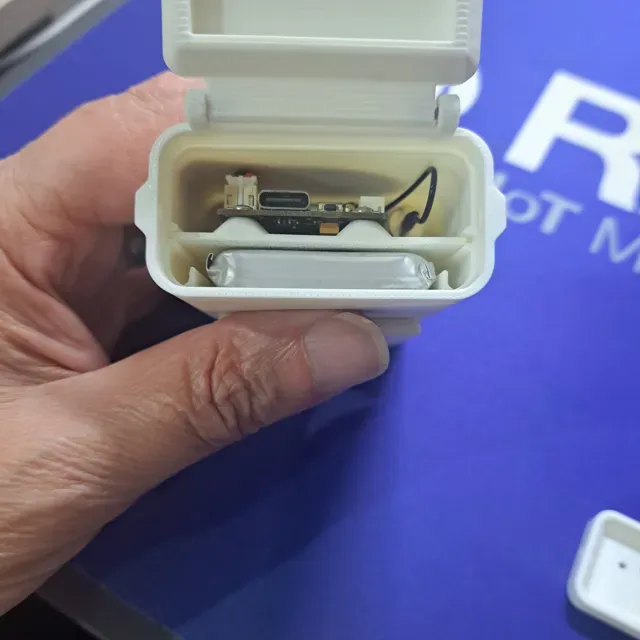

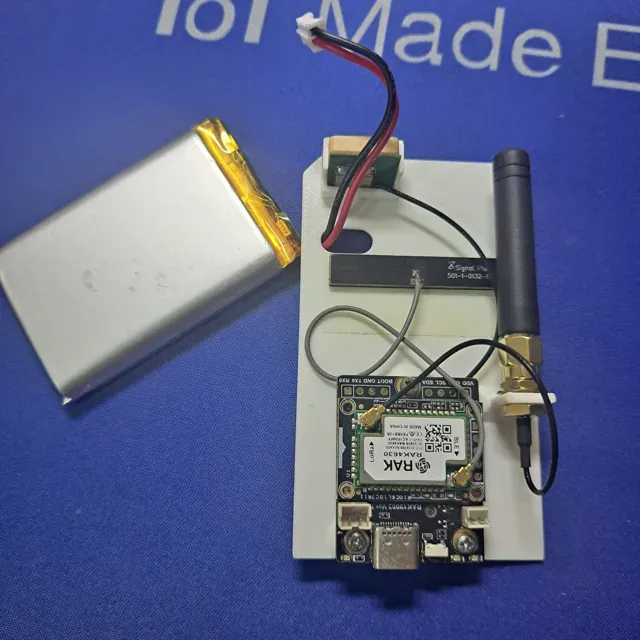

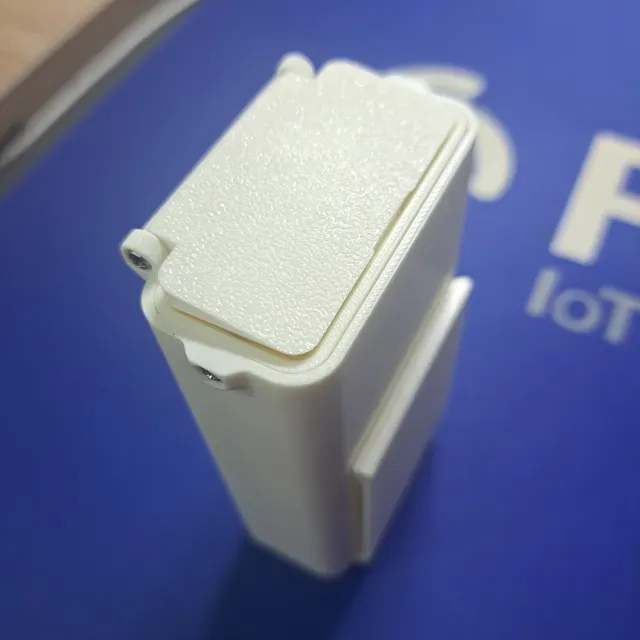

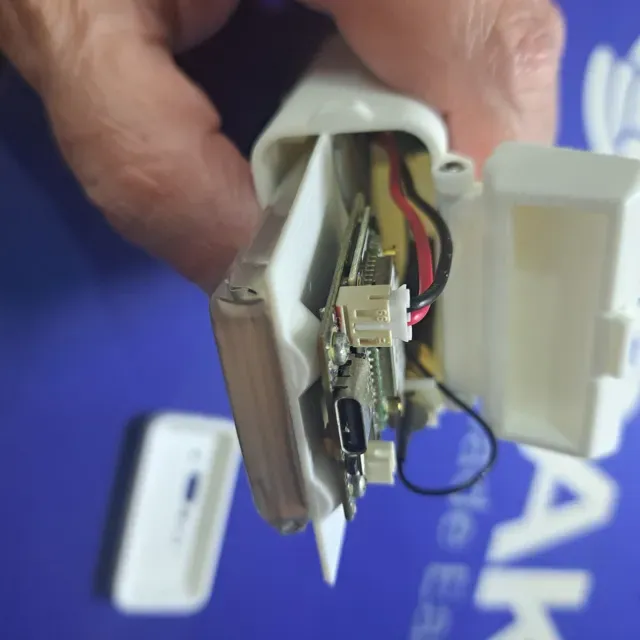

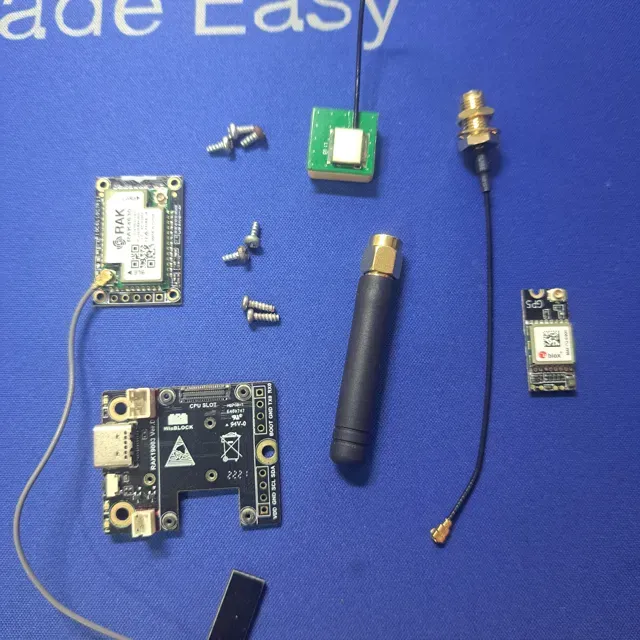

This is an rain-proof enclosure for RAKwireless WisMesh starter kits. It comes in several versions for RAK19003 or RAK19007 Base Boards, with a clip or with a ring to hook it to a carabiner. The default 2dBi antenna of the starter kits is kept inside the enclosure.

The design protects the electronics, battery and antenna from rain and water splash, but it is not fully waterproof (you cannot submerge it in water).

It does not have any display, but as Meshtastic and MeshCore devices are connected to a cellular phone over BLE, it is not absolute required.

For outdoor usage, I recommend to print it in ABS, PETG or ASA to make it resistant to heat and UV exposure. PLA is not recommended for this model.

Variants:

Plain enclosure without any mounting option

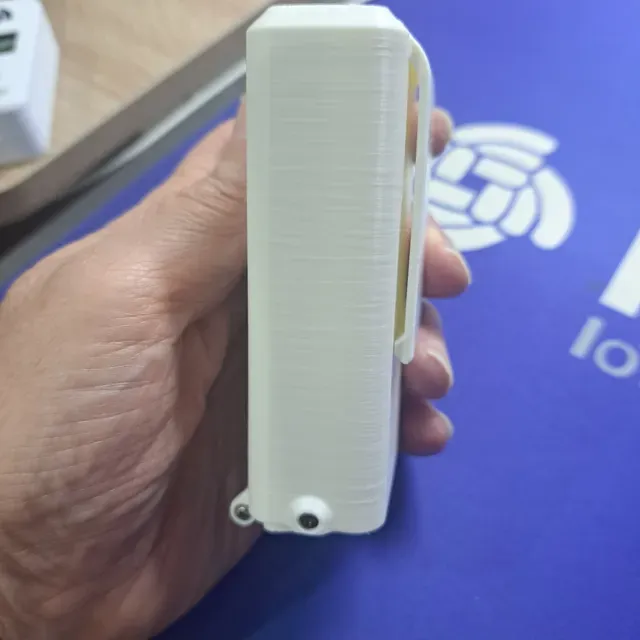

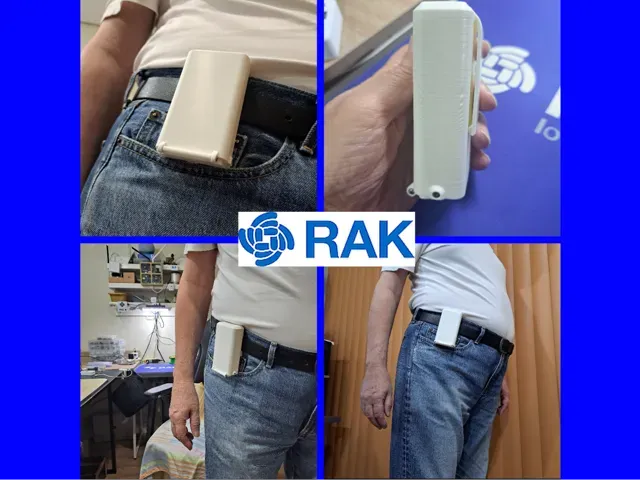

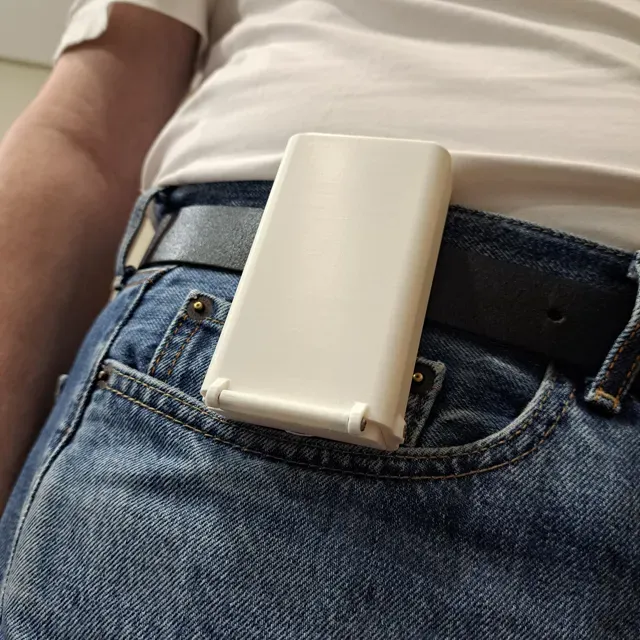

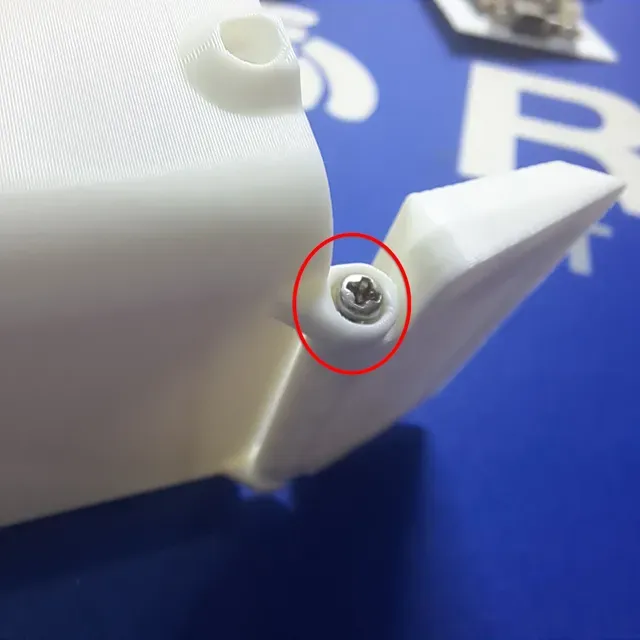

Enclosure with a belt clip

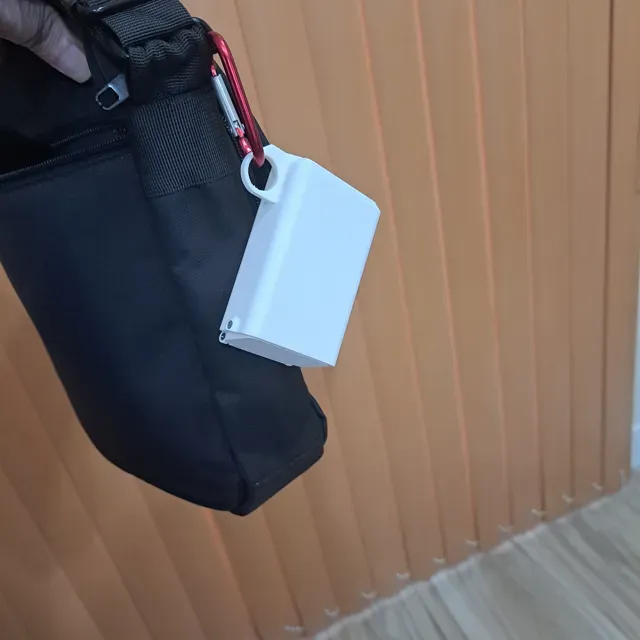

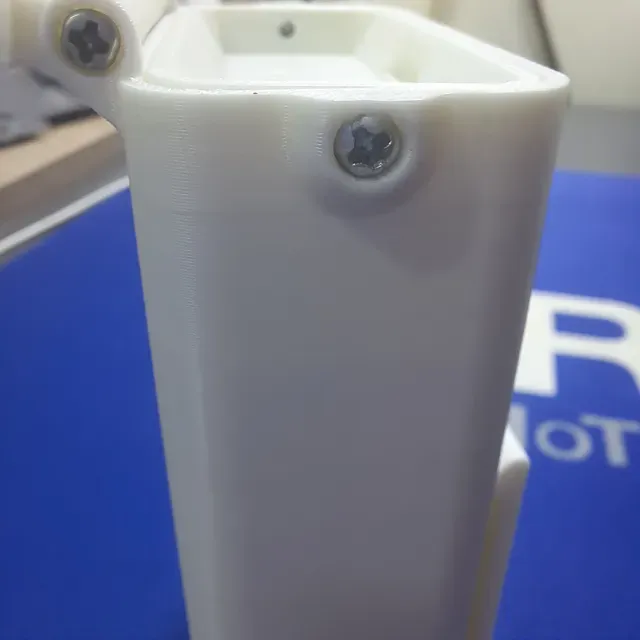

Enclosure with a ring to hang it on a backpack

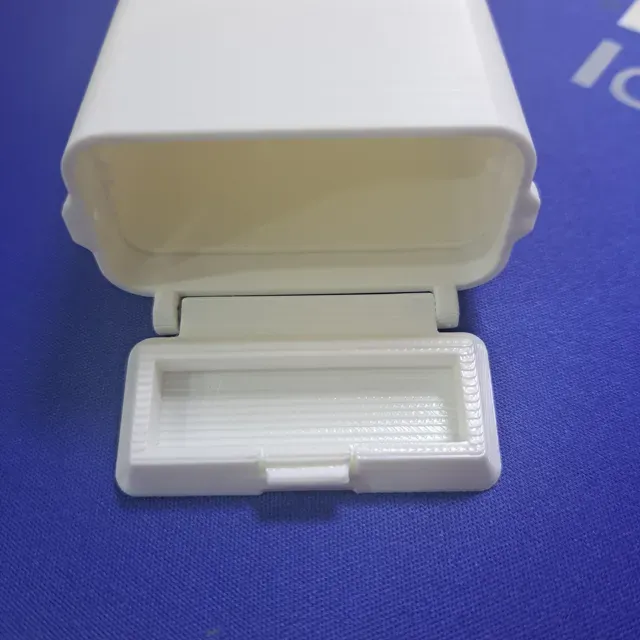

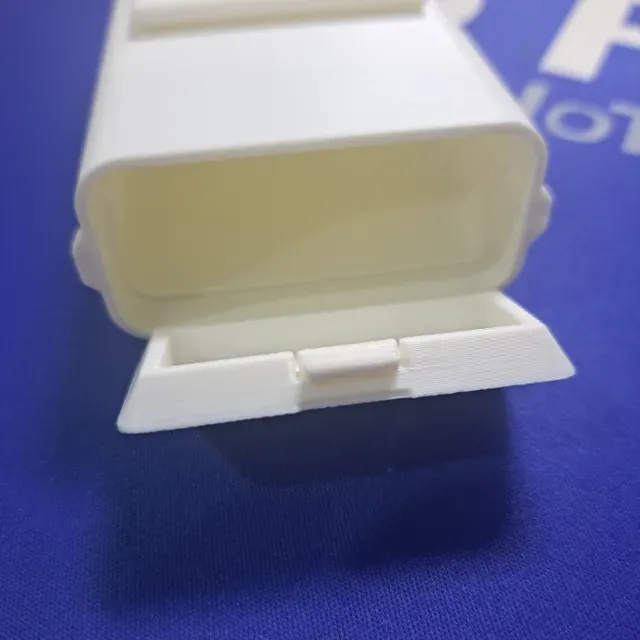

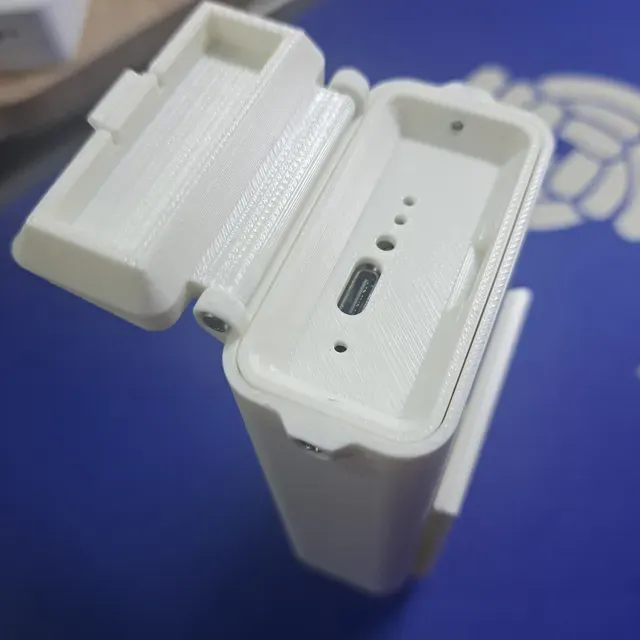

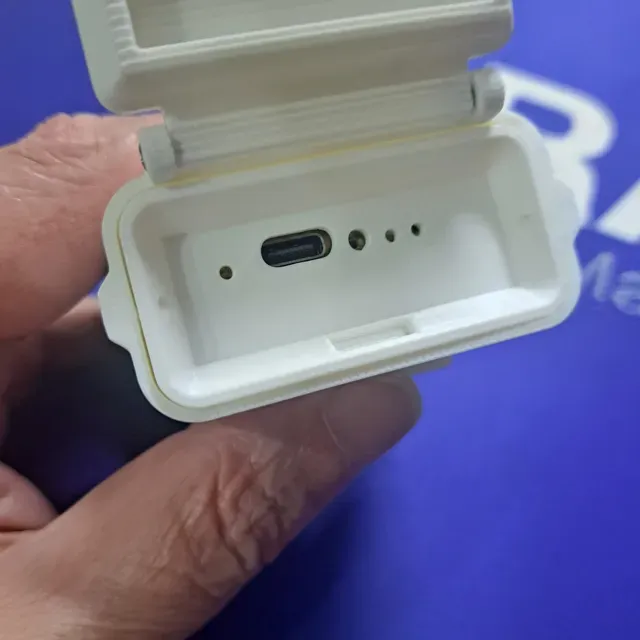

Optional these variants are available with an additional USB lid to protect the USB port, LED's and reset button.

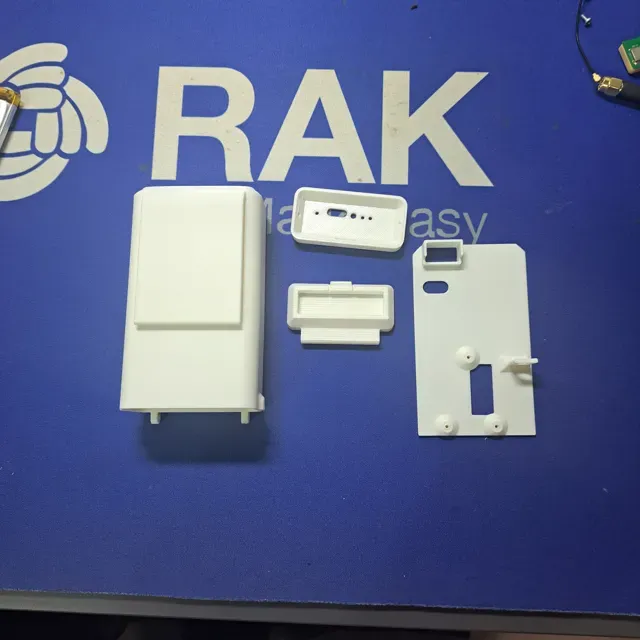

There is a print profile for each of the variants and a collection print profile with all variants on different build plates. Single print files of each part, STEP file of each part and the complete Fusion 360 project file is available as well.

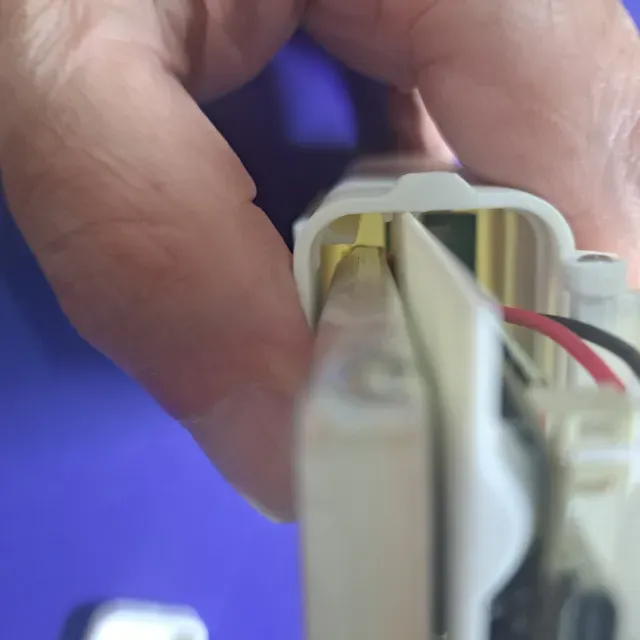

Check the assembly guide for details.

Compatible are all WisMesh Starter Kits ( RAK4631 , RAK3312 and RAK11300 ) and all WisBlock Starter Kits with RK19003 and RAK19007 Base Boards.

Руководства и профили печати

Файлы руководств

Профили печати и шаги

All variants multi build plates 0.2mm layer, 2 walls, 15% infill

Select build plate with required variant and build plate with the matching module carrier.

Plain for RAK19003 (no mounting fixes) Basic enclosure, no USB lid, no belt clip, no ring

0.2mm layer, 2 walls, 15% infill

Plain for RAK19007 (no mounting fixes) Basic enclosure, no USB lid, no belt clip, no ring

0.2mm layer, 2 walls, 15% infill

Plain with USB lid for RAK19003 (no mounting fixes) Basic enclosure, with USB lid, no belt clip, no ring

0.2mm layer, 2 walls, 15% infill

Plain with USB lid for RAK19007 (no mounting fixes) Basic enclosure, with USB lid, no belt clip, no ring

0.2mm layer, 2 walls, 15% infill

Enclosure with belt clip for RAK19003 Enclosure with belt clip, no USB lid

0.2mm layer, 2 walls, 15% infill

Enclosure with belt clip for RAK19007 Enclosure with belt clip, no USB lid

0.2mm layer, 2 walls, 15% infill

Enclosure with belt clip and USB lid for RAK19003 Enclosure with belt clip and USB lid

0.2mm layer, 2 walls, 15% infill

Enclosure with belt clip and USB lid for RAK19007 Enclosure with belt clip and USB lid

0.2mm layer, 2 walls, 15% infill

Enclosure with ring for RAK19003 Enclosure with ring, no USB lid

0.2mm layer, 2 walls, 15% infill

Enclosure with ring for RAK19007 Enclosure with ring, no USB lid

0.2mm layer, 2 walls, 15% infill

Enclosure with ring and USB lid for RAK19003 Enclosure with ring and USB lid

0.2mm layer, 2 walls, 15% infill

Enclosure with ring and USB lid for RAK19007 Enclosure with ring and USB lid

0.2mm layer, 2 walls, 15% infill

Теги

rakwirelessrakwisblockwismeshmeshtasticmeshcoreenclosurestarter kitrak19007rak19003rak 4631rak3312rak11300
