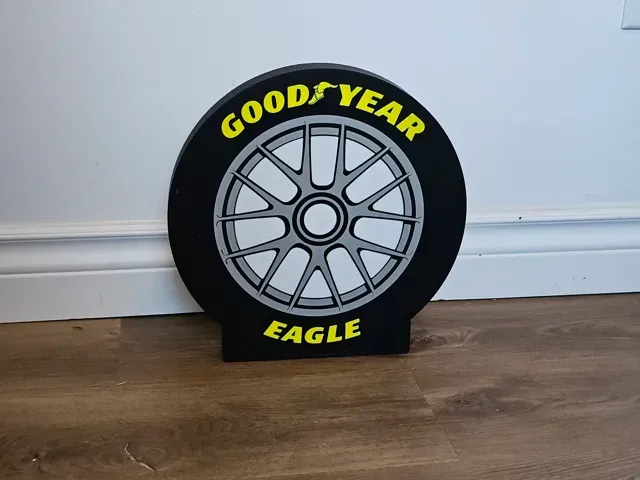

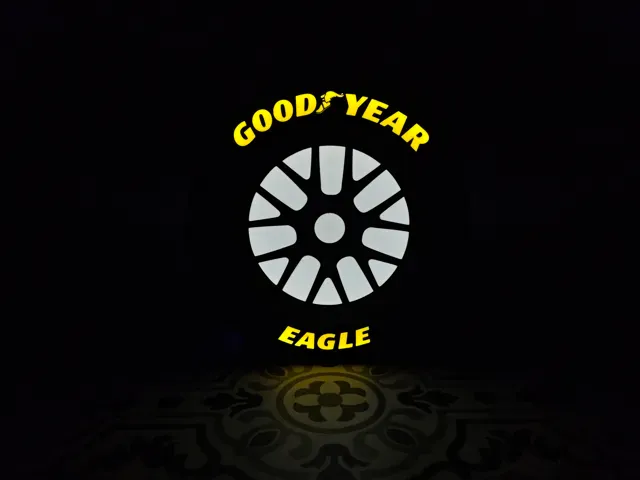

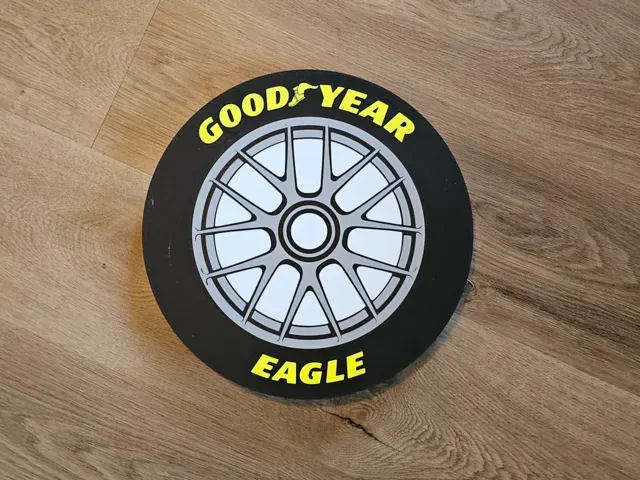

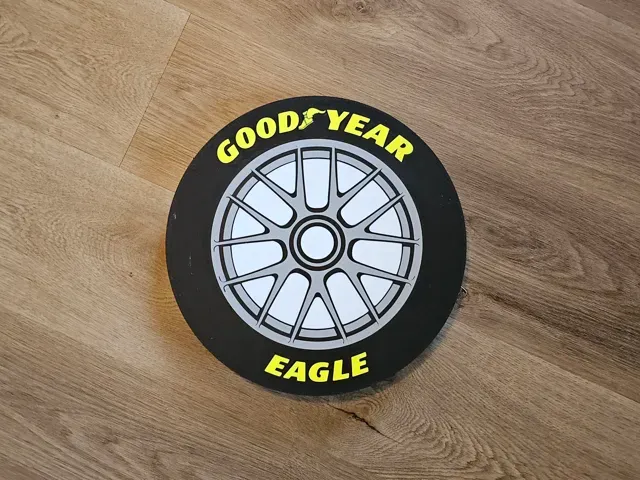

NASCAR Goodyear Tire & Wheel w/ stand LED Lightbox

Boost Me Boosts are always appreciated. They help fund my setup and make it possible for me to keep designing and sharing new models. If you’re able to spare one, it helps more than you know! DIY LED Lightbox – Two-Plate 3D Print

Print your own eye-catching lightbox! One plate for the lid, one for the back. Just add a white LED strip for an impressive illuminated display.

🔌 Need a USB hole grommet? Grab it here:  LED Lightbox USB Cutout Grommet/Plug

💡 Recommended LED strip: 5V COB LED Strip Light – 6000K (Cool White)

Approximate size: 12"x12"x1.25" (Printed on H2S, will need to be resized for 256mmx256mm buildplate. If you resize, don't forget to resize hole for the USB cord)

Designed in Fusion 360

Print Settings:

Material: PLA / PLA+

Nozzle: 0.4 mm

Layer Height: 0.22 mm

Infill: 5%

Orientation: Print face down on a textured PEI plate

Color Order: Lightest to darkest

Wall Generator: Arachne

May require rotation on build plate for optimal fit

🎨 STEP files: Be sure to assign colors under the OBJECTS tab in Bambu Studio.
